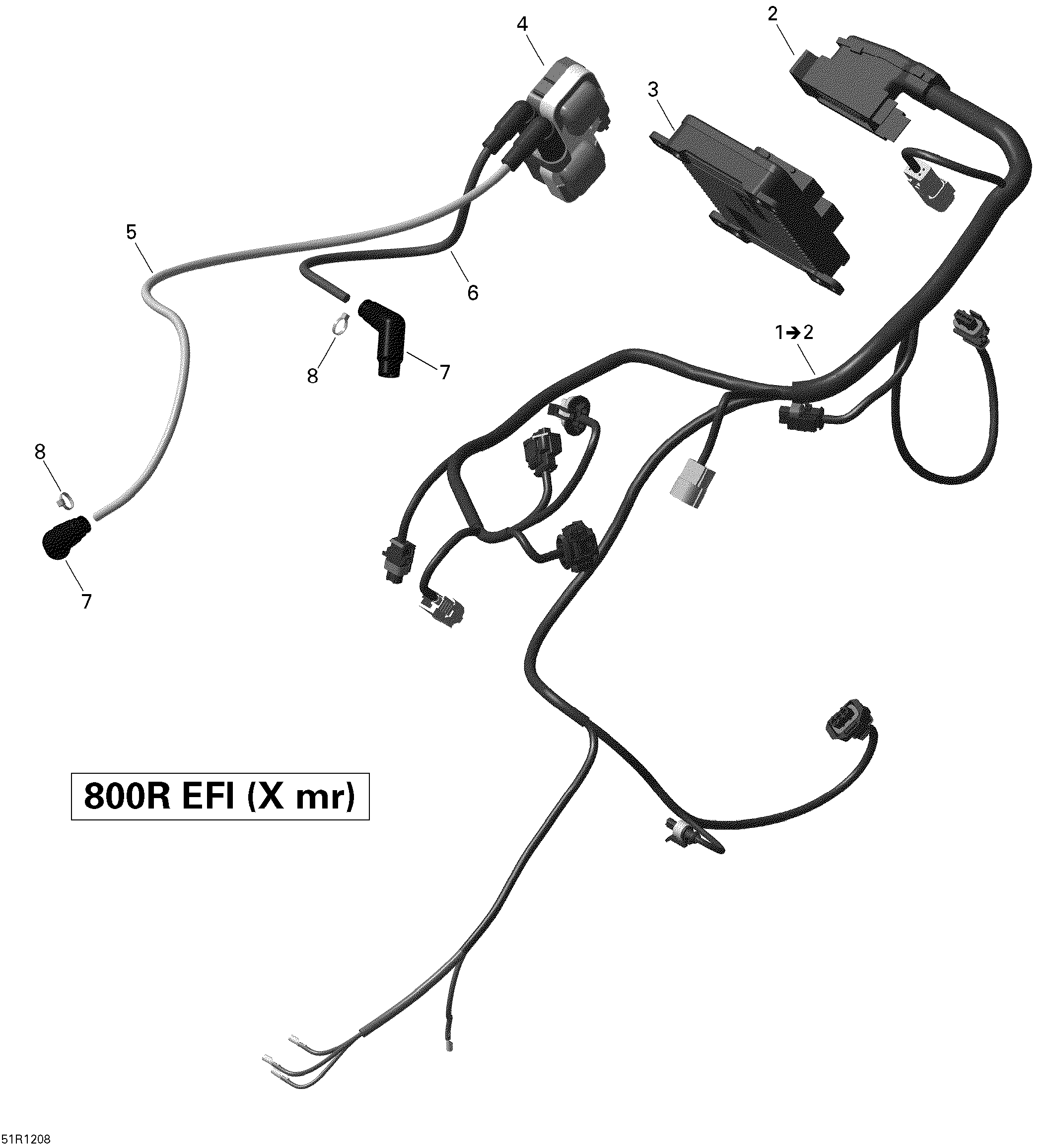

10- Engine Harness And Electronic Module для BRP Outlander 800REFI Xmr - 2012
-
№АртикулНазвание
-
1420666330 Engine Wiring Harness. Includes 1 to 2Engine Wiring Harness. Includes 1 to 2
-
2420664450 ECM ConnectorECM Connector
-
3420266739 ECM, Engine Control ModuleECM, Engine Control Module
-
4278001546 Ignition CoilIgnition Coil
-
5420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
6420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
7420265240 Spark Plug ConnectorSpark Plug Connector
-
8420866710 Tie RapTie Rap
