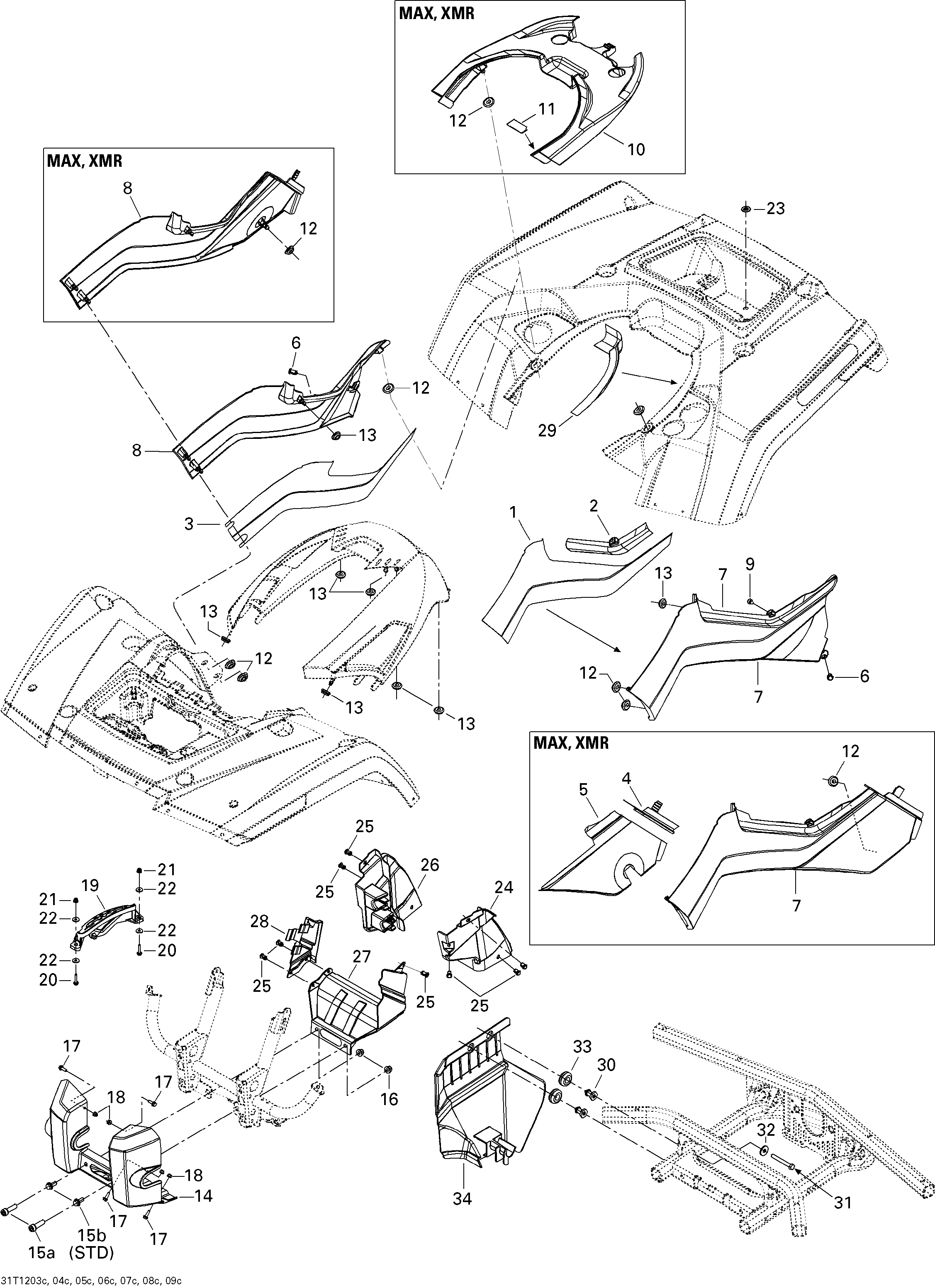

09- Body And Accessories 3 для BRP Outlander 800REFI Xmr - 2012
-
№АртикулНазвание
-
1705005620 Reflective SheetReflective Sheet
-
2705005617 Reflective SheetReflective Sheet
-
3705005623 Reflective SheetReflective Sheet
-
4705002183 LH Reflective Sheet. XMRLH Reflective Sheet. XMR
-
5705005621 Reflective Sheet. XMRReflective Sheet. XMR
-
7705002940 LH Lateral Panel, YellowLH Lateral Panel, Yellow
-
8705002943 RH Lateral Panel, YellowRH Lateral Panel, Yellow
-
9293830005 Rubber PlugRubber Plug
-
10705003481 Storage Tray, Black. XMRStorage Tray, Black. XMR
-
11705002185 Reflective Sheet. XMRReflective Sheet. XMR
-
12705000321 Oval Washer. XMROval Washer. XMR
-
13705003264 GrommetGrommet
-
14705003496 Guard PlateGuard Plate
-
15a205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
16233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19705003838 Lever IndicatorLever Indicator
-
20207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22250200072 Flat WasherFlat Washer
-
23414859400 CapCap
-
24705003634 LH Inner FenderLH Inner Fender
-
25293150089 Tuflok Plastic Rivet. XMRTuflok Plastic Rivet. XMR
-
26705002124 RH Inner FenderRH Inner Fender
-
29705002085 Reflective SheetReflective Sheet
-
30517303439 KnobKnob
-
31241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
32391301600 WasherWasher
-
33293720053 GrommetGrommet
-
34705004036 Thread CoverThread Cover
