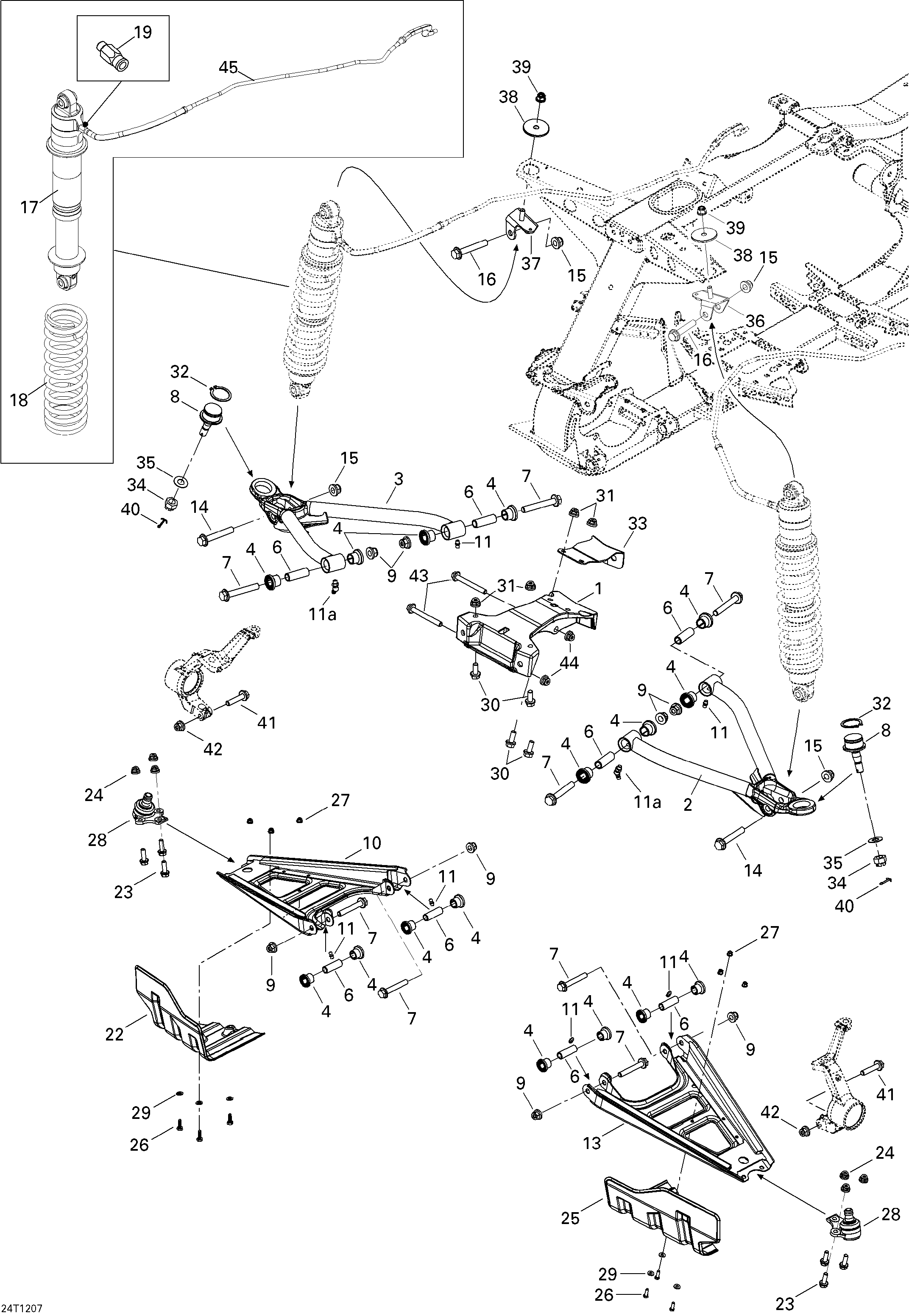

07- Front Suspension для BRP Outlander 800REFI Xmr - 2012
-
№АртикулНазвание
-
1706201360 Upper Arm BracketUpper Arm Bracket
-
2706201220 L.H. ArmL.H. Arm
-
3706201223 R.H. ArmR.H. Arm
-
4706200181 CushionCushion
-
6706200678 Inner BushingInner Bushing
-
7207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
8706200653 Ball JointBall Joint
-
9233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
10706201050 Suspension Arm, BlackSuspension Arm, Black
-
11408200700 Grease FittingGrease Fitting
-
11a408200600 Grease FittingGrease Fitting
-
13706201050 Suspension Arm, BlackSuspension Arm, Black
-
14207606546 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
15233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
17706201232 Front Shock Ass'yFront Shock Ass'y
-
18706201231 Painted Front SpringPainted Front Spring
-
19706201356 ConnectorConnector
-
22706200214 RH ProtectorRH Protector
-
23207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
24233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
25706200213 LH ProtectorLH Protector
-
26207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
27233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
28706200444 Joint AttachmentJoint Attachment
-
29391301700 WasherWasher
-
30207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
31233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
32293370009 Circlip 32 mmCirclip 32 mm
-
33706201014 BracketBracket
-
34250100099 Nut M12Nut M12
-
35706200281 Hardened WasherHardened Washer
-
36706201035 L.H. BracketL.H. Bracket
-
37706201036 R.H. BracketR.H. Bracket
-
38706200724 SpacerSpacer
-
39233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40211400017 Cotter PinCotter Pin
-
41207604544 Hex. Flanged Screw M10 X 45Hex. Flanged Screw M10 X 45
-
42233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
43207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
45706201351 Hose Ass'yHose Ass'y
