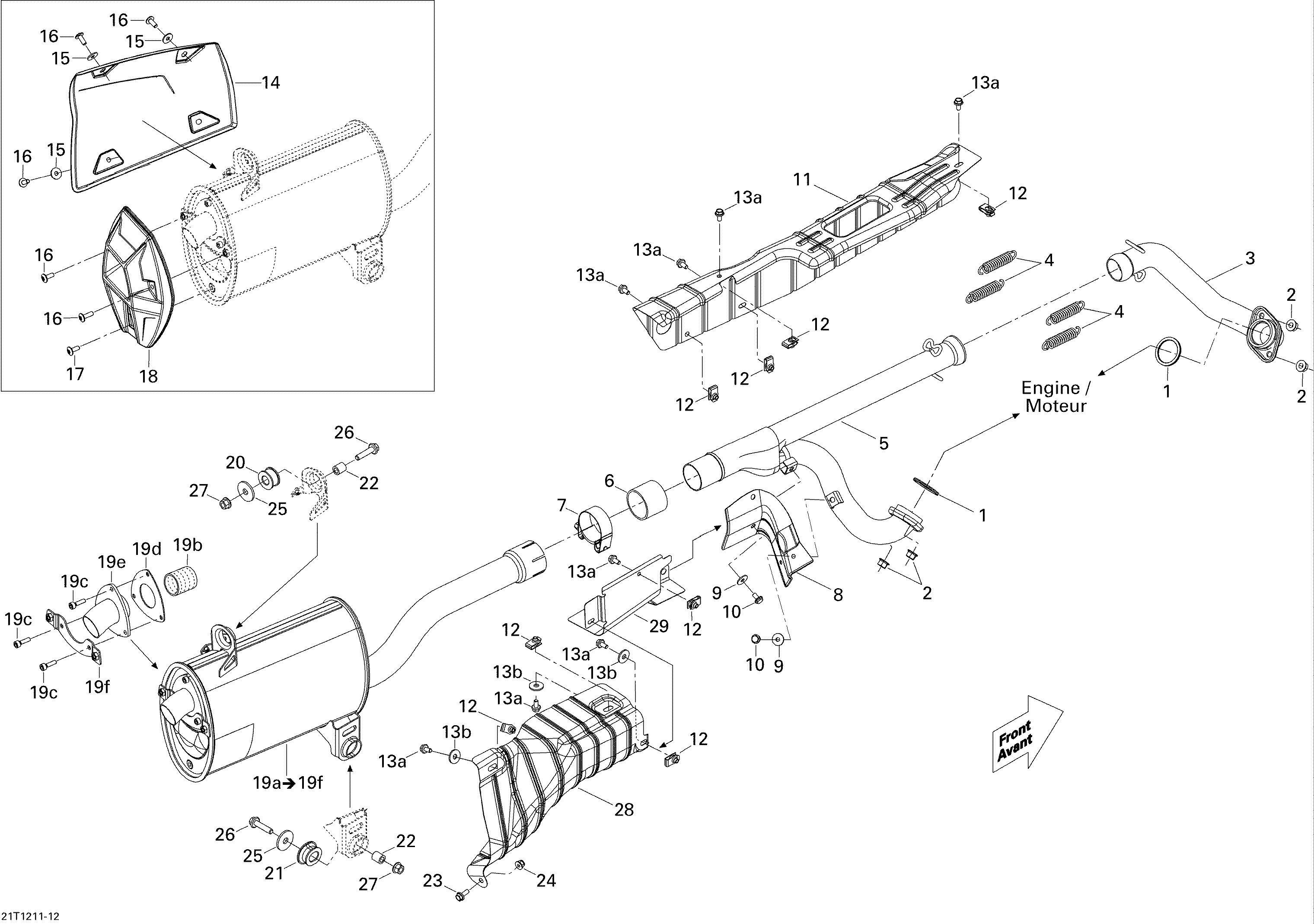

01- Exhaust System для BRP Outlander STD, XT, 1000 EFI - 2012
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3707600627 Front Head PipeFront Head Pipe
-
4415107100 SpringSpring
-
5707600624 Rear Head PipeRear Head Pipe
-
6707600955 Pipe GasketPipe Gasket
-
7293650177 Norma Gear ClampNorma Gear Clamp
-
8707600932 Pipe ProtectorPipe Protector
-
9391302000 Flat WasherFlat Washer
-
10250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
11707600712 Heat DeflectorHeat Deflector
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13a207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
13b234062410 Flat Washer 6 mmFlat Washer 6 mm
-
14707600710 Heat DeflectorHeat Deflector
-
15234062670 Flat WasherFlat Washer
-
16250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
17250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
18707600711 Muffler CapMuffler Cap
-
19a707600629 Muffler. Includes 19a to 19fMuffler. Includes 19a to 19f
-
19a707600799 Muffler. Europe, Includes 19a to 19fMuffler. Europe, Includes 19a to 19f
-
19b715900089 Spark ArrestorSpark Arrestor
-
19c205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
19d715900149 GasketGasket
-
19e715900143 Muffler End PieceMuffler End Piece
-
19f715900147 SupportSupport
-
20707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
21707600448 RubberRubber
-
22293900106 BushingBushing
-
23207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25503032900 WasherWasher
-
26207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
27233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
28707600869 Heat DeflectorHeat Deflector
-
29707600983 Heat DeflectorHeat Deflector
