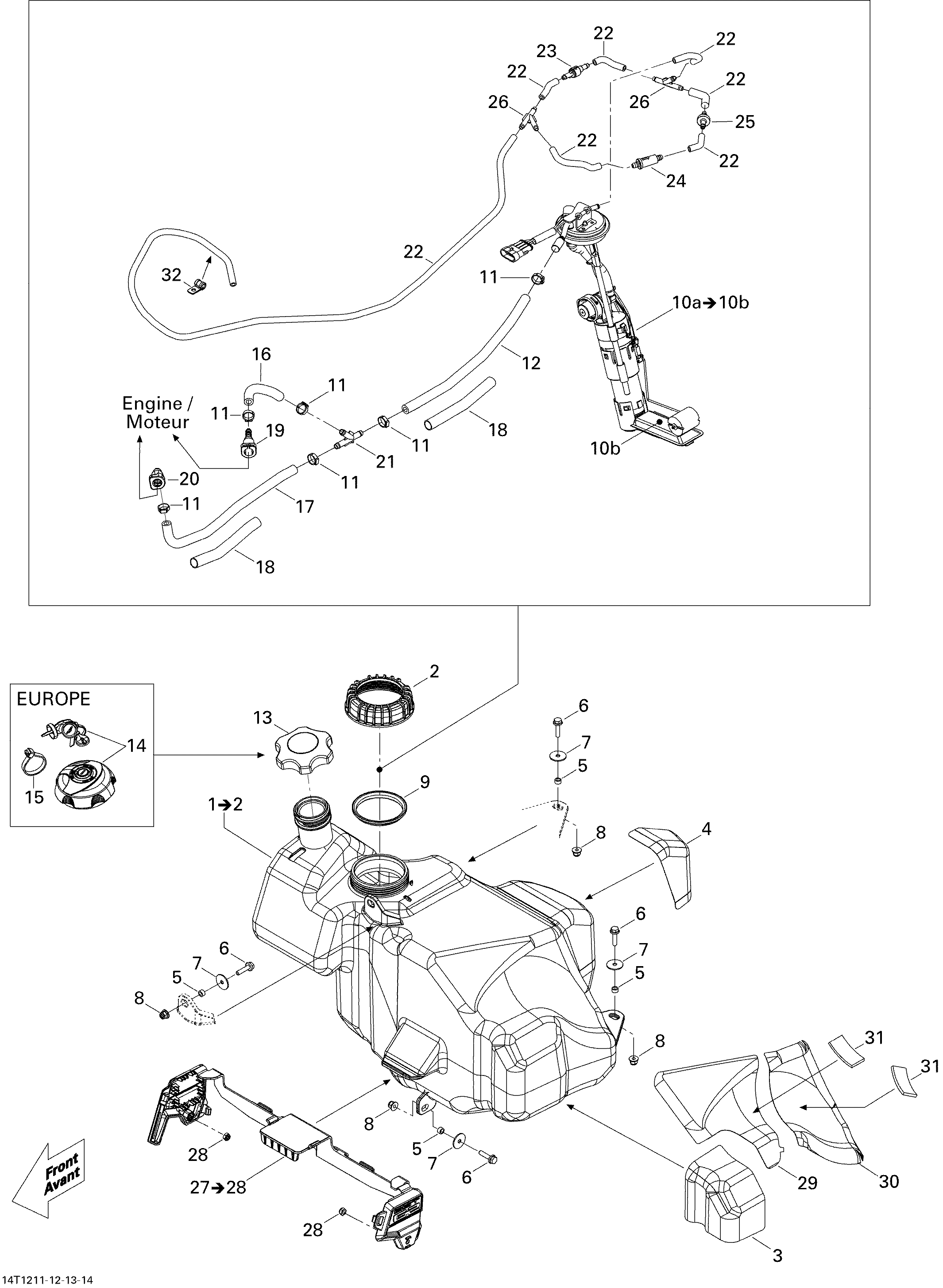

02- Fuel System для BRP Outlander STD, XT, 1000 EFI - 2012
-
№АртикулНазвание
-
1709000310 Fuel Tank. Includes 1 to 2Fuel Tank. Includes 1 to 2
-
2709000328 Fuel Pump Module NutFuel Pump Module Nut
-
3709000381 Heat Reflective SheetHeat Reflective Sheet
-
4709000382 Heat Reflective SheetHeat Reflective Sheet
-
5293900104 BushingBushing
-
6207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7224060251 WasherWasher
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9709000208 SealSeal
-
10a709000287 Fuel Pump Module. Includes 10a to 10bFuel Pump Module. Includes 10a to 10b
-
10b709000389 Fuel Pre-FilterFuel Pre-Filter
-
11293650046 Oetiker ClampOetiker Clamp
-
12709000163 Fuel LineFuel Line
-
13513033025 Fuel Tank CapFuel Tank Cap
-
14860200387 Locking Cap Tank. EuropeLocking Cap Tank. Europe
-
15293750001 Tie-Rap 94 mm. EuropeTie-Rap 94 mm. Europe
-
16709000163 Fuel LineFuel Line
-
17709000163 Fuel LineFuel Line
-
18415080000 Tubing 16 mmTubing 16 mm
-
19709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
20415128965 Quick Fitting 90°Quick Fitting 90°
-
21293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
22415080200 Hose, PolyurethaneHose, Polyurethane
-
23513033469 Check ValveCheck Valve
-
24709000330 FilterFilter
-
25275500398 Check ValveCheck Valve
-
26293710059 Y-FittingY-Fitting
-
27709000337 Hose SupportHose Support
-
28232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
29709000387 Heat Reflective SheetHeat Reflective Sheet
-
30709000388 Heat Reflective SheetHeat Reflective Sheet
-
31293830129 Rubber PadRubber Pad
-
32705600459 ClampClamp
