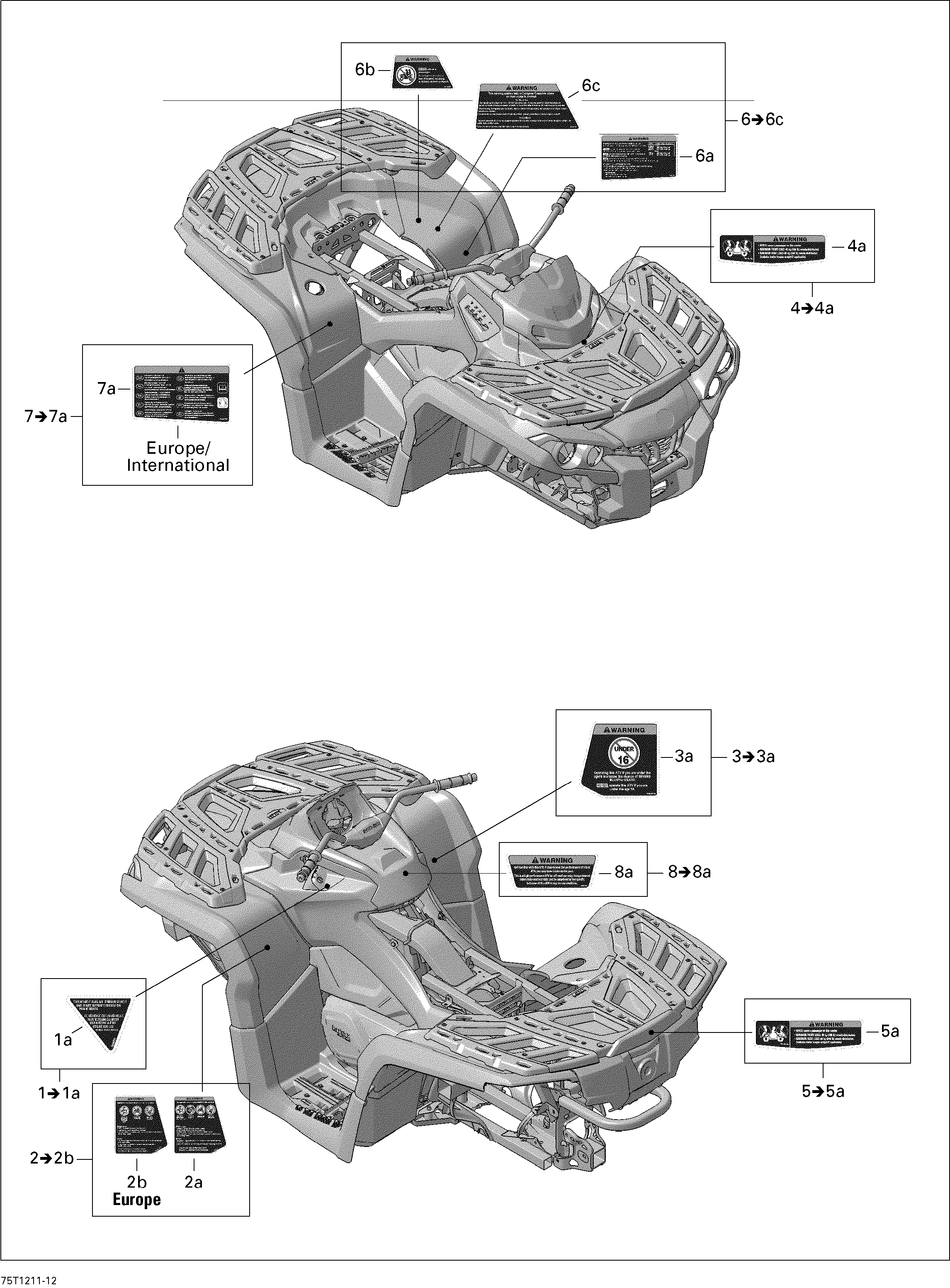

09- Fender And Central Panel Kit для BRP Outlander STD, XT, 1000 EFI - 2012
-
№АртикулНазвание
-
1715001552 Dash Support Kit. Includes 1 to 1a, Except EuropeDash Support Kit. Includes 1 to 1a, Except Europe
-
1a704902774 Decal, Public Roads. Except EuropeDecal, Public Roads. Except Europe
-
2715001499 LH Front Fender Kit, Yellow. Includes 2 to 2b, YellowLH Front Fender Kit, Yellow. Includes 2 to 2b, Yellow
-
2715001502 LH Front Fender Kit, Red. Includes 2 to 2b, Red North AmericaLH Front Fender Kit, Red. Includes 2 to 2b, Red North America
-
2715001504 LH Front Fender Kit, Black. Includes 2 to 2b, BlackLH Front Fender Kit, Black. Includes 2 to 2b, Black
-
2715001506 LH Front Fender Kit, Camo. Includes 2 to 2b, CamoLH Front Fender Kit, Camo. Includes 2 to 2b, Camo
-
2715001508 LH Front Fender Kit, Magnesium. Includes 2 to 2b, MagnesiumLH Front Fender Kit, Magnesium. Includes 2 to 2b, Magnesium
-
2a704902787 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
2a704902788 Warning Decal, Death And Injuries, FrWarning Decal, Death And Injuries, Fr
-
2b704902789 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
2b704902790 Warning Decal, Death And Injuries, FrWarning Decal, Death And Injuries, Fr
-
3715001510 RH Front Fender Kit, Yellow. Includes 3 to 3a, YellowRH Front Fender Kit, Yellow. Includes 3 to 3a, Yellow
-
3715001512 RH Front Fender Kit, Red. Includes 3 to 3a, Red North AmericaRH Front Fender Kit, Red. Includes 3 to 3a, Red North America
-
3715001514 RH Front Fender Kit, Black. Includes 3 to 3a, BlackRH Front Fender Kit, Black. Includes 3 to 3a, Black
-
3715001516 RH Front Fender Kit, Camo. Includes 3 to 3a, CamoRH Front Fender Kit, Camo. Includes 3 to 3a, Camo
-
3715001518 RH Front Fender Kit, Magnesium. Includes 3 to 3a, MagnesiumRH Front Fender Kit, Magnesium. Includes 3 to 3a, Magnesium
-
3a704902775 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3a704902776 Warning Decal, Under 16 Years Old, FrWarning Decal, Under 16 Years Old, Fr
-
4715001541 Hood Kit, Yellow. Includes 4 to 4a, YellowHood Kit, Yellow. Includes 4 to 4a, Yellow
-
4715001543 Hood Kit, Red. Includes 4 to 4a, Red North AmericaHood Kit, Red. Includes 4 to 4a, Red North America
-
4715001545 Hood Kit, Black. Includes 4 to 4a, BlackHood Kit, Black. Includes 4 to 4a, Black
-
4715001547 Hood Kit, Camo. Includes 4 to 4a, CamoHood Kit, Camo. Includes 4 to 4a, Camo
-
4715001549 Hood Kit, Magnesium. Includes 4 to 4a, MagnesiumHood Kit, Magnesium. Includes 4 to 4a, Magnesium
-
4a704902791 Warning Decal, LoadWarning Decal, Load
-
5715001561 Rear Rack Kit. Includes 5 to 5a,Rear Rack Kit. Includes 5 to 5a,
-
5a704902791 Warning Decal, LoadWarning Decal, Load
-
5a704902792 Warning Decal, Load, FrWarning Decal, Load, Fr
-
6715001520 LH Rear Fender Kit, Yellow. Includes 6 to 6c, YellowLH Rear Fender Kit, Yellow. Includes 6 to 6c, Yellow
-
6715001523 LH Rear Fender Kit, Red. Includes 6 to 6c, Red North AmericaLH Rear Fender Kit, Red. Includes 6 to 6c, Red North America
-
6715001525 LH Rear Fender Kit, Black. Includes 6 to 6c, BlackLH Rear Fender Kit, Black. Includes 6 to 6c, Black
-
6715001527 LH Rear Fender Kit, Camo. Includes 6 to 6c, CamoLH Rear Fender Kit, Camo. Includes 6 to 6c, Camo
-
6715001529 LH Rear Fender Kit, Magnesium. Includes 6 to 6c, MagnesiumLH Rear Fender Kit, Magnesium. Includes 6 to 6c, Magnesium
-
6a704902783 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
6a704902784 Warning Decal, Tire Pressure, FrWarning Decal, Tire Pressure, Fr
-
6b704902785 Warning Decal, PassengerWarning Decal, Passenger
-
6b704902786 Warning Decal, Passenger, FrWarning Decal, Passenger, Fr
-
6c704902823 Warning Decal, On Road UseWarning Decal, On Road Use
-
6c704902824 Warning Decal, On Road Use, FrWarning Decal, On Road Use, Fr
-
7715001531 RH Rear Fender Kit, Yellow. Includes 7 to 7a, YellowRH Rear Fender Kit, Yellow. Includes 7 to 7a, Yellow
-
7715001535 RH Rear Fender Kit, Black. Includes 7 to 7a, BlackRH Rear Fender Kit, Black. Includes 7 to 7a, Black
-
7715001539 RH Rear Fender Kit, Magnesium. Includes 7 to 7a, MagnesiumRH Rear Fender Kit, Magnesium. Includes 7 to 7a, Magnesium
-
7715001576 RH Rear Fender Kit, Yellow. Includes 7 to 7a, Yellow North AmericaRH Rear Fender Kit, Yellow. Includes 7 to 7a, Yellow North America
-
7715001578 RH Rear Fender Kit, Red. Includes 7 to 7a, Red North AmericaRH Rear Fender Kit, Red. Includes 7 to 7a, Red North America
-
7715001580 RH Rear Fender Kit, Black. Includes 7 to 7a, Black North AmericaRH Rear Fender Kit, Black. Includes 7 to 7a, Black North America
-
7715001582 RH Rear Fender Kit, Camo. Includes 7 to 7a, CamoRH Rear Fender Kit, Camo. Includes 7 to 7a, Camo
-
7715001584 RH Rear Fender Kit, Magnesium. Includes 7 to 7a, Magnesium North AmericaRH Rear Fender Kit, Magnesium. Includes 7 to 7a, Magnesium North America
-
7A704902779 Warning Decal, MultilingualWarning Decal, Multilingual
-
8715001572 Dash Kit. Includes 8 to 8a,Dash Kit. Includes 8 to 8a,
-
8a704902941 Warning Decal, PerformanceWarning Decal, Performance
-
8a704902942 Warning Decal, Performance, FrWarning Decal, Performance, Fr
