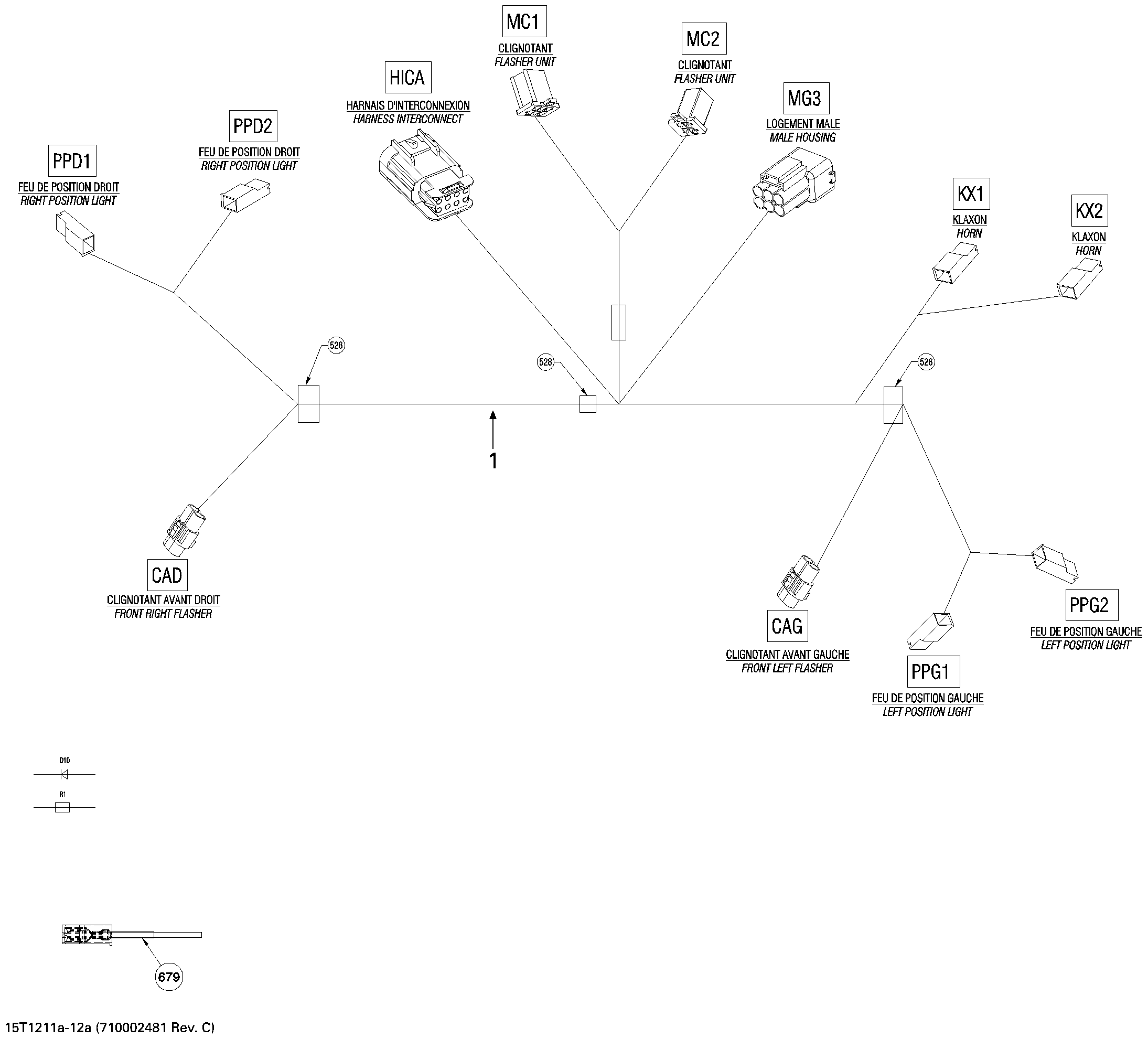

10- Electrical Harness Europe для BRP Outlander STD, XT, 1000 EFI - 2012
-
№АртикулНазвание
-
1710002481 Harness Ass'y. Includes 1 to R1, EuropeHarness Ass'y. Includes 1 to R1, Europe
-
CAD409012100 Female TerminalFemale Terminal
-
CAD409012300 SealSeal
-
CAG409012100 Female TerminalFemale Terminal
-
CAG409012300 SealSeal
-
D10409012700 DiodeDiode
-
HICA710001038 ClipClip
-
HICA710001233 SealSeal
-
HICA710001225 CapCap
-
HICA710001224 TerminalTerminal
-
HICA710001927 HousingHousing
-
KX1409010100 Female TerminalFemale Terminal
-
KX1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX1710000751 Shrink TubingShrink Tubing
-
KX2409010100 Female TerminalFemale Terminal
-
KX2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX2710000751 Shrink TubingShrink Tubing
-
MC1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC1710002314 HousingHousing
-
MC1710002315 TerminalTerminal
-
MC2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC2710002313 HousingHousing
-
MC2710002315 TerminalTerminal
-
MG3409011300 Male TerminalMale Terminal
-
MG3710000402 Wire SealWire Seal
-
MG3710001446 Male Housing Terminal, 6 CircuitsMale Housing Terminal, 6 Circuits
-
PPD1409010100 Female TerminalFemale Terminal
-
PPD1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
PPD1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
PPD1710000751 Shrink TubingShrink Tubing
-
PPD2409010100 Female TerminalFemale Terminal
-
PPD2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
PPD2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
PPD2710000751 Shrink TubingShrink Tubing
-
PPG1409010100 Female TerminalFemale Terminal
-
PPG1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
PPG1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
PPG1710000751 Shrink TubingShrink Tubing
-
PPG2409010100 Female TerminalFemale Terminal
-
PPG2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
PPG2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
PPG2710000751 Shrink TubingShrink Tubing
-
R1710002674 ResistorResistor
