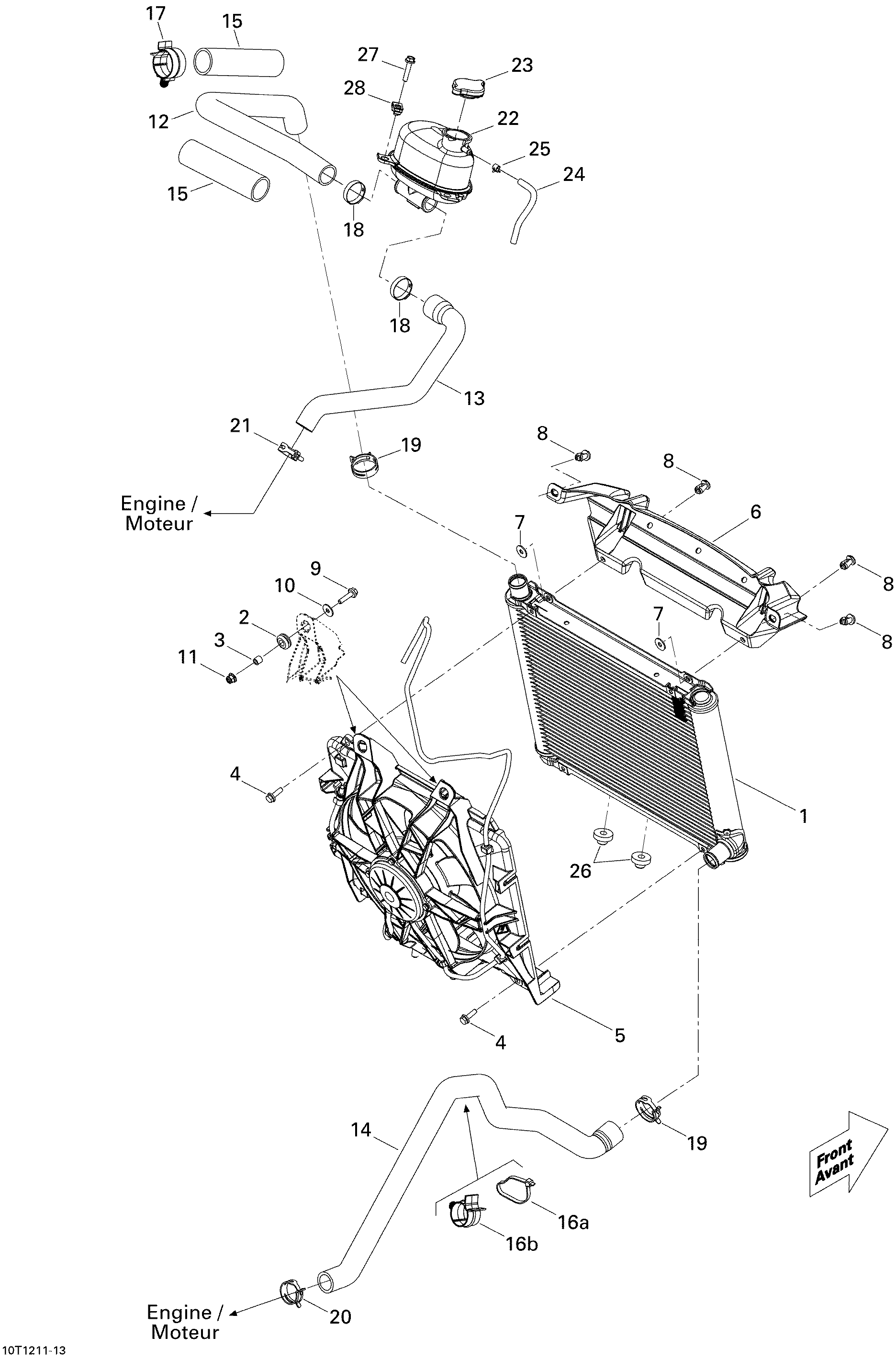

01- Cooling System для BRP Outlander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1709200286 RadiatorRadiator
-
2293720053 GrommetGrommet
-
3293900105 BushingBushing
-
4207662034 Hex. Flanged ScrewHex. Flanged Screw
-
5709200317 Fan Ass'yFan Ass'y
-
6709200393 Air Deflector. OutlanderAir Deflector. Outlander
-
7234081410 Flat Washer 8 mm. OutlanderFlat Washer 8 mm. Outlander
-
8293150089 Tuflok Plastic Rivet. OutlanderTuflok Plastic Rivet. Outlander
-
9207662534 Hex. Flanged ScrewHex. Flanged Screw
-
10250200082 Flat WasherFlat Washer
-
11233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
12709200278 Radiator Inlet HoseRadiator Inlet Hose
-
13709200310 Engine Outlet HoseEngine Outlet Hose
-
14709200391 Radiator Outlet HoseRadiator Outlet Hose
-
15515176260 Tubing 35mmTubing 35mm
-
16b275500590 Retainer. OutlanderRetainer. Outlander
-
17275500590 RetainerRetainer
-
18509000162 Gear ClampGear Clamp
-
19293650166 Norma Spring ClampNorma Spring Clamp
-
20293650108 Norma Spring ClampNorma Spring Clamp
-
21293650109 Norma Spring ClampNorma Spring Clamp
-
22709200297 Coolant TankCoolant Tank
-
23709200207 Pressure CapPressure Cap
-
24415080200 Hose, PolyurethaneHose, Polyurethane
-
25414554800 Spring ClampSpring Clamp
-
26709200285 GrommetGrommet
-
27207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
28250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
