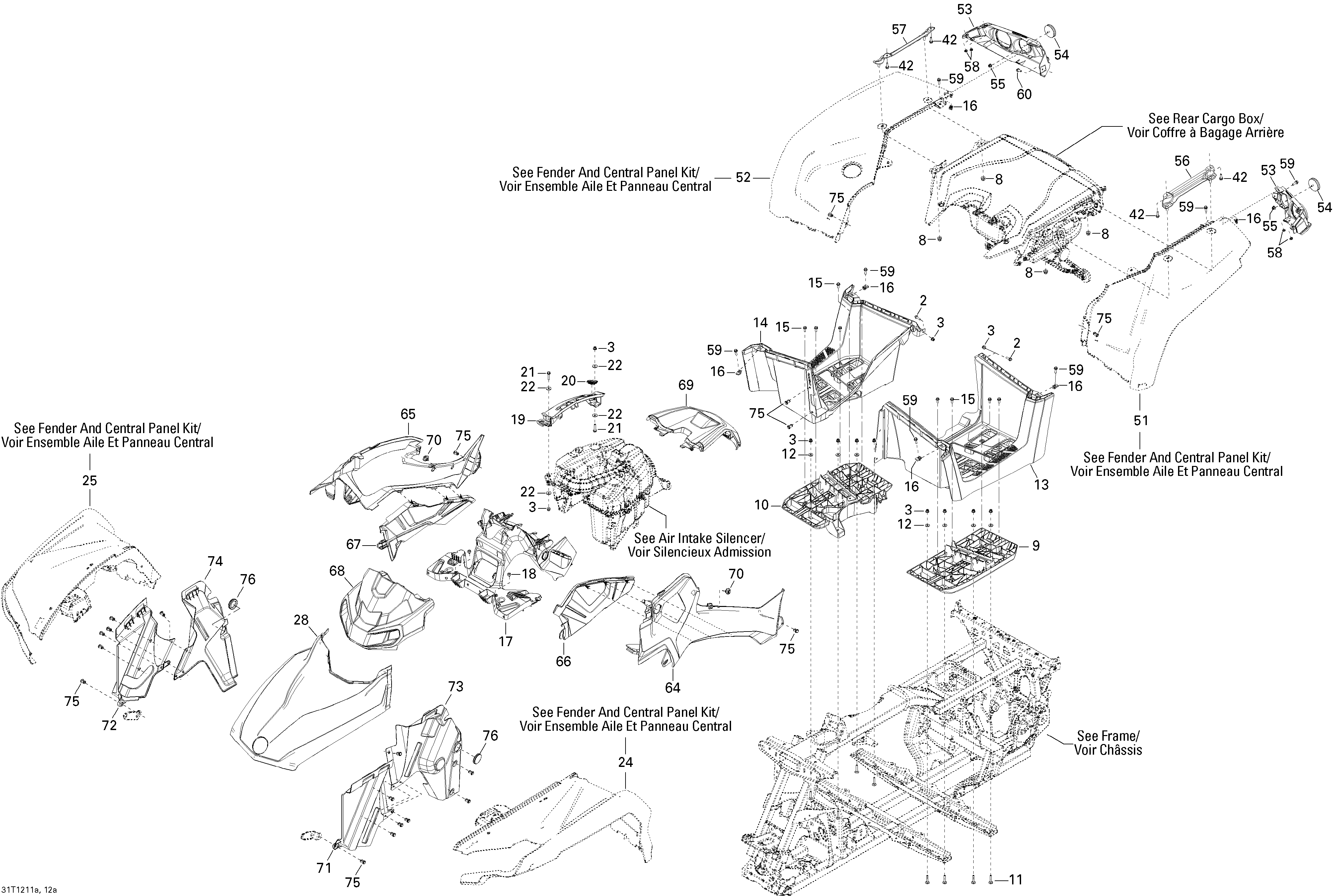

09- Body And Accessories 1 для BRP Outlander STD, XT, 800R EFI - 2012
‹-+›
-
№АртикулНазвание
-
2207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
8233281434 Hex. Flanged Elastic Nut M8. STDHex. Flanged Elastic Nut M8. STD
-
8233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8233281434 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
9705005254 LH. FootboardLH. Footboard
-
10705005253 RH. FootboardRH. Footboard
-
11207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
12234062410 Flat Washer 6 mmFlat Washer 6 mm
-
13705003427 LH FootboardLH Footboard
-
14705003426 RH FootboardRH Footboard
-
15207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17715001552 Dash Support KitDash Support Kit
-
18293830005 Rubber PlugRubber Plug
-
19705005258 Indicator. 800 North America, 800 InternationalIndicator. 800 North America, 800 International
-
19705005259 Indicator. 800 EuropeIndicator. 800 Europe
-
20705005003 Shiftgate Trim. EuropeShiftgate Trim. Europe
-
21207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
22224061201 Flat WasherFlat Washer
-
28708300189 Hood, Yellow. YellowHood, Yellow. Yellow
-
28715001545 Hood, Deep Black. Deep BlackHood, Deep Black. Deep Black
-
28708300538 Hood, Viper Red. Viper RedHood, Viper Red. Viper Red
-
28708300540 Hood, Camo. CamoHood, Camo. Camo
-
28708300541 Hood, Magnesium. Pure MagnesiumHood, Magnesium. Pure Magnesium
-
42207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
53705003658 LH Rear Facia. North America, InternationalLH Rear Facia. North America, International
-
53705004144 LH Rear Facia. EuropeLH Rear Facia. Europe
-
53705003659 RH Rear Facia. North America, InternationalRH Rear Facia. North America, International
-
53705004145 RH Rear Facia. EuropeRH Rear Facia. Europe
-
54705002408 Reflector, Red. North America, InternationalReflector, Red. North America, International
-
55233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
56705003995 LH SupportLH Support
-
57705003996 RH SupportRH Support
-
58732610072 Push NutPush Nut
-
59250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
60207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
64705003446 Yellow LH Pannel. YellowYellow LH Pannel. Yellow
-
64705005236 LH Pannel. Deep BlackLH Pannel. Deep Black
-
64705005237 LH Pannel. Viper RedLH Pannel. Viper Red
-
64705005238 LH Pannel. CamoLH Pannel. Camo
-
64705005239 LH Pannel. Pure MagnesiumLH Pannel. Pure Magnesium
-
65705003447 Yellow RH Pannel. YellowYellow RH Pannel. Yellow
-
65705005240 RH Pannel. Deep BlackRH Pannel. Deep Black
-
65705005241 RH Pannel. Viper RedRH Pannel. Viper Red
-
65705005242 RH Pannel. CamoRH Pannel. Camo
-
65705005243 RH Pannel, Magnesium. Pure MagnesiumRH Pannel, Magnesium. Pure Magnesium
-
66705004147 LH Extension PannelLH Extension Pannel
-
67705003444 Engine CoverEngine Cover
-
68705004146 Gauge SupportGauge Support
-
69715001572 Console CapConsole Cap
-
70705003264 GrommetGrommet
-
71705004587 RH Inner FenderRH Inner Fender
-
72705004558 RH Inner FenderRH Inner Fender
-
73705004588 LH Inner FenderLH Inner Fender
-
74705004557 LH Inner FenderLH Inner Fender
-
75293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
76293250242 Rubber CoverRubber Cover
