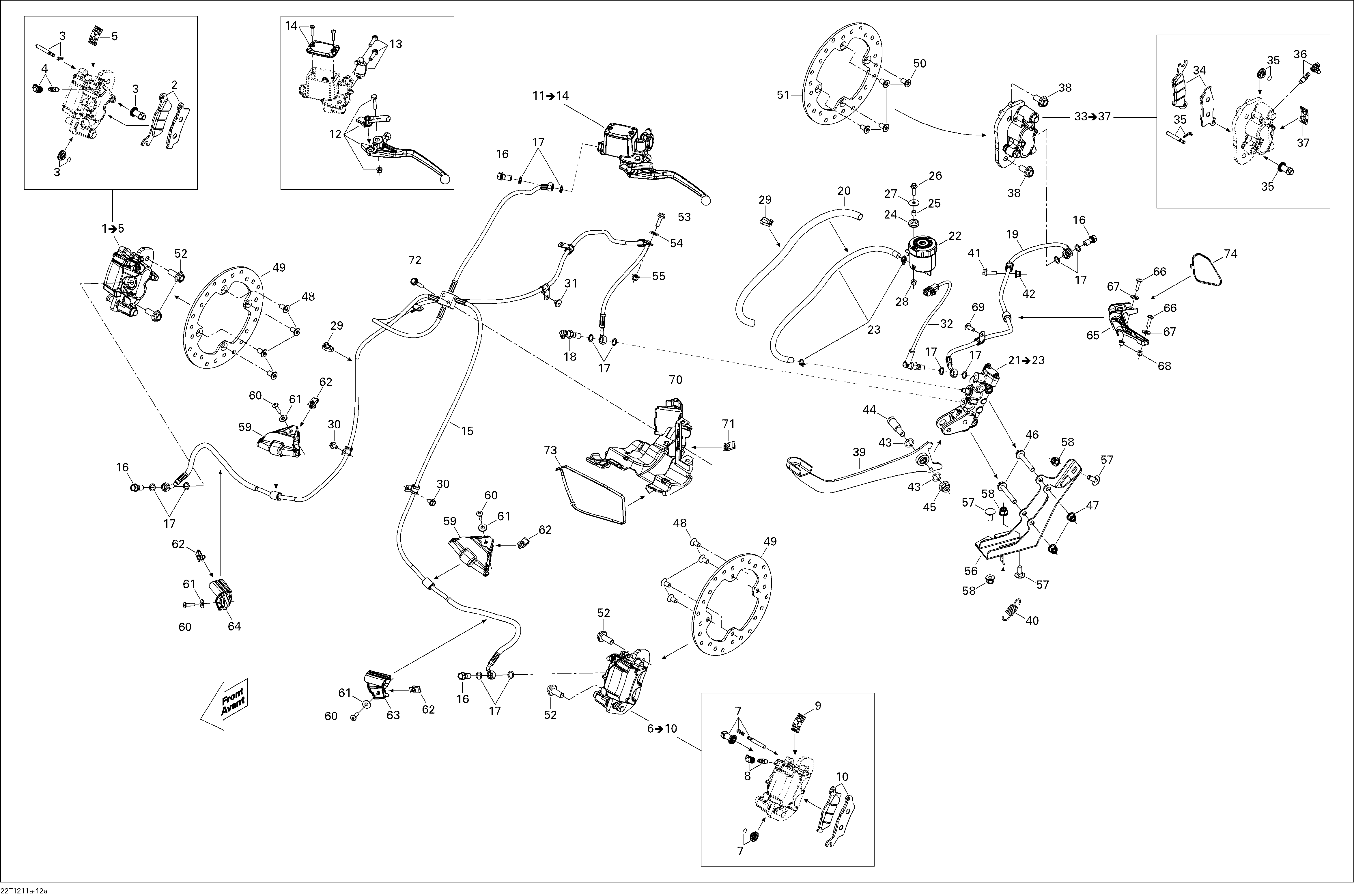

06- Hydraulic Brakes Except Europe для BRP Outlander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1705600861 RH Front Caliper Ass'y. Includes 1 to 5RH Front Caliper Ass'y. Includes 1 to 5
-
2705601014 Brake Pad KitBrake Pad Kit
-
3705601016 Pin SetPin Set
-
4705601017 Bleeding ScrewBleeding Screw
-
5705601018 SpringSpring
-
6705600862 LH Front Caliper Ass'y. Includes 6 to 10LH Front Caliper Ass'y. Includes 6 to 10
-
7705601016 Pin SetPin Set
-
8705601017 Bleeding ScrewBleeding Screw
-
9705601018 SpringSpring
-
10705601015 Brake Pad KitBrake Pad Kit
-
11705600865 Front Master Cylinder. Includes 11 to 14Front Master Cylinder. Includes 11 to 14
-
12705601013 Lever SetLever Set
-
13705601022 Bracket KitBracket Kit
-
14705601021 Cap SetCap Set
-
15705601058 Brake LineBrake Line
-
16705600609 Banjo BoltBanjo Bolt
-
17705600310 Copper WasherCopper Washer
-
18705601051 Bleeding ScrewBleeding Screw
-
19705601002 Brake Line Ass'yBrake Line Ass'y
-
20415079900 Tubing 10 mmTubing 10 mm
-
21705600847 Rear Master Cylinder. Includes 21 to 23Rear Master Cylinder. Includes 21 to 23
-
22705601020 Oil TankOil Tank
-
23705601019 Housing Oil HoseHousing Oil Hose
-
24414036300 GrommetGrommet
-
25293900112 BushingBushing
-
26207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
27224060201 Flat WasherFlat Washer
-
28233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
31390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
32705600946 Brake SwitchBrake Switch
-
33705600859 RH Rear Caliper Ass'y. Includes 33 to 37RH Rear Caliper Ass'y. Includes 33 to 37
-
34705601014 Brake Pad KitBrake Pad Kit
-
35705601016 Pin SetPin Set
-
36705601017 Bleeding ScrewBleeding Screw
-
37705601018 SpringSpring
-
38207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
39705600819 Brake PedalBrake Pedal
-
40705600792 Brake Pedal SpringBrake Pedal Spring
-
41207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
42233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
43293300144 O-RingO-Ring
-
44250000513 Shoulder Screw M10Shoulder Screw M10
-
45233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
46207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
48235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
49705600999 Disc BrakeDisc Brake
-
50235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
51705600999 Disc BrakeDisc Brake
-
52207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
53207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
54234062410 Flat Washer 6 mmFlat Washer 6 mm
-
55233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
56705202000 Bracket Brake PedalBracket Brake Pedal
-
57207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
58233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
59705600962 Front Hose ProtectorFront Hose Protector
-
60250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
61250200025 Washer M5Washer M5
-
62250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
63705601048 LH Hose BracketLH Hose Bracket
-
64705601049 RH Hose BracketRH Hose Bracket
-
65705600963 Rear Hose ProtectorRear Hose Protector
-
66250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
67250200025 Washer M5Washer M5
-
68233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
69250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
70705600983 Front Hose BracketFront Hose Bracket
-
71250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
72207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
73293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
74293750008 Tie-Rap 350 mmTie-Rap 350 mm
