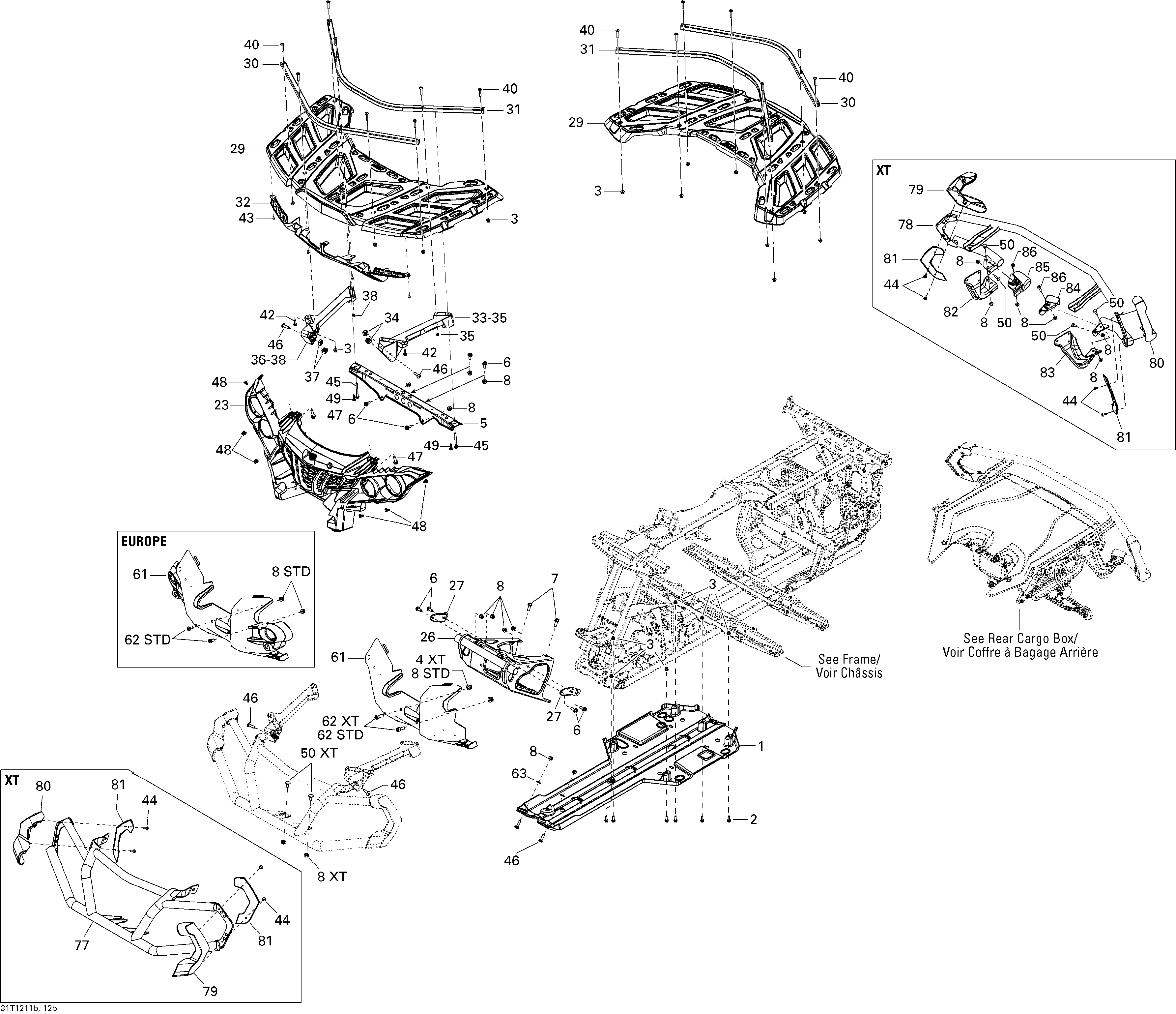

09- Body And Accessories 2 для BRP Outlander STD, XT, 800R EFI - 2012
-
№АртикулНазвание
-
1705004154 Skid PlateSkid Plate
-
2207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4233201434 Hex. Flanged Elastic Nut M10. XTHex. Flanged Elastic Nut M10. XT
-
5705004140 Central SupportCentral Support
-
6207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
7207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
8233281434 Hex. Flanged Elastic Nut M8. STDHex. Flanged Elastic Nut M8. STD
-
8233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8233281434 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
23705003552 Front FaciaFront Facia
-
26705004165 Front Bumper SupportFront Bumper Support
-
27705004565 Lower Fender SupportLower Fender Support
-
29715001561 Lugage RackLugage Rack
-
30705005469 TubeTube
-
31705005470 TubeTube
-
32705004523 Lugage Rack MouldingLugage Rack Moulding
-
33705004230 LH Support. Includes 33 to 35LH Support. Includes 33 to 35
-
34269501387 Nut Housing Ass'yNut Housing Ass'y
-
35232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
36705004231 RH Support. Includes 36 to 38RH Support. Includes 36 to 38
-
37269501387 Nut Housing Ass'yNut Housing Ass'y
-
38232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
40250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
42207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
43241140060 Screw K40 X 10Screw K40 X 10
-
44250000113 Screw M4 X 16, Type K-40. XTScrew M4 X 16, Type K-40. XT
-
45207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
46250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
47207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
48517302785 ClipClip
-
49250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
50207762044 Carriage Bolt M6 X 20. XTCarriage Bolt M6 X 20. XT
-
61705003564 Plate. North America, InternationalPlate. North America, International
-
61705004562 Plate. EuropePlate. Europe
-
62205003044 Socket Screw M10 x 30. XTSocket Screw M10 x 30. XT
-
62236282084 Hex. Screw M8 X 20. STDHex. Screw M8 X 20. STD
-
63705004497 RingRing
-
77705005018 Front Bumper. XTFront Bumper. XT
-
78705005019 Black Bumper. XTBlack Bumper. XT
-
79705004409 Cap (Front LH) (Rear RH). XTCap (Front LH) (Rear RH). XT
-
80705004410 Cap (Front RH) (Rear LH). XTCap (Front RH) (Rear LH). XT
-
81705004987 Bracket Cover. XTBracket Cover. XT
-
82705005166 LH Support. XTLH Support. XT
-
83705005167 RH Support. XTRH Support. XT
-
84705005094 LH Bracket. XTLH Bracket. XT
-
85705005095 RH Bracket. XTRH Bracket. XT
-
86250000284 Torx Screw M6 x 25. XTTorx Screw M6 x 25. XT
