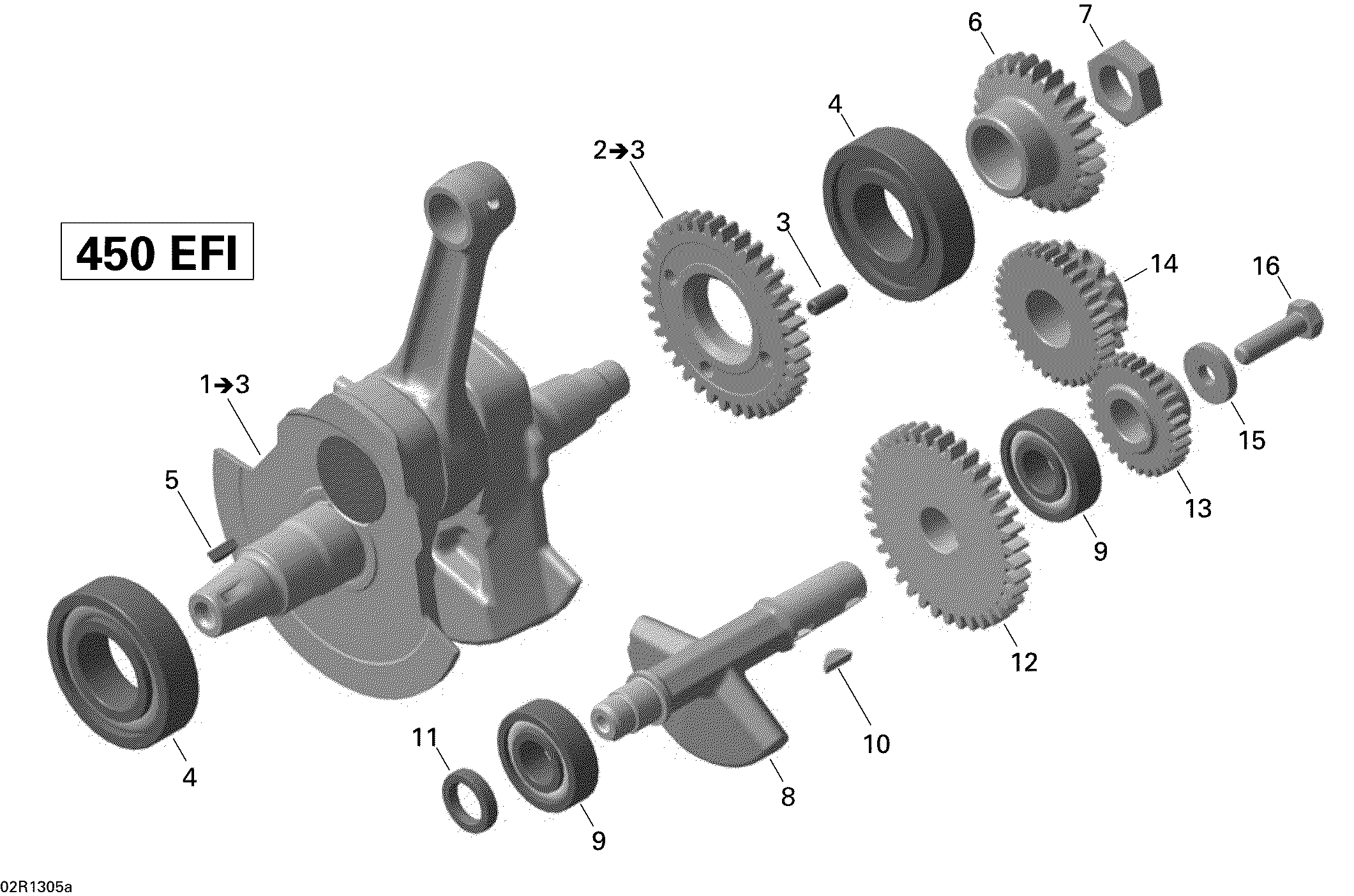

01- Crankshaft для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1420685093 Crankshaft Ass.. Includes 1 to 3Crankshaft Ass.. Includes 1 to 3
-
2420434697 Balance Gear, 37 Teeth. Includes 2 to 3Balance Gear, 37 Teeth. Includes 2 to 3
-
3420229490 Dowel Pin 6 X 16Dowel Pin 6 X 16
-
4420832526 Balll BearingBalll Bearing
-
5420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
6420434680 Drive Gear, 27 TeethDrive Gear, 27 Teeth
-
7420942220 Hex. Nut M18Hex. Nut M18
-
8420620800 Balance ShaftBalance Shaft
-
9420232855 Balll BearingBalll Bearing
-
10420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
11420250130 Oil SealOil Seal
-
12420434690 Balance Gear, 37 TeethBalance Gear, 37 Teeth
-
13420434721 Control Gear, 29 TeethControl Gear, 29 Teeth
-
14420434705 Intermediate GearIntermediate Gear
-
15420626460 Washer 23 mmWasher 23 mm
-
16420940485 Screw M8 x 30Screw M8 x 30
