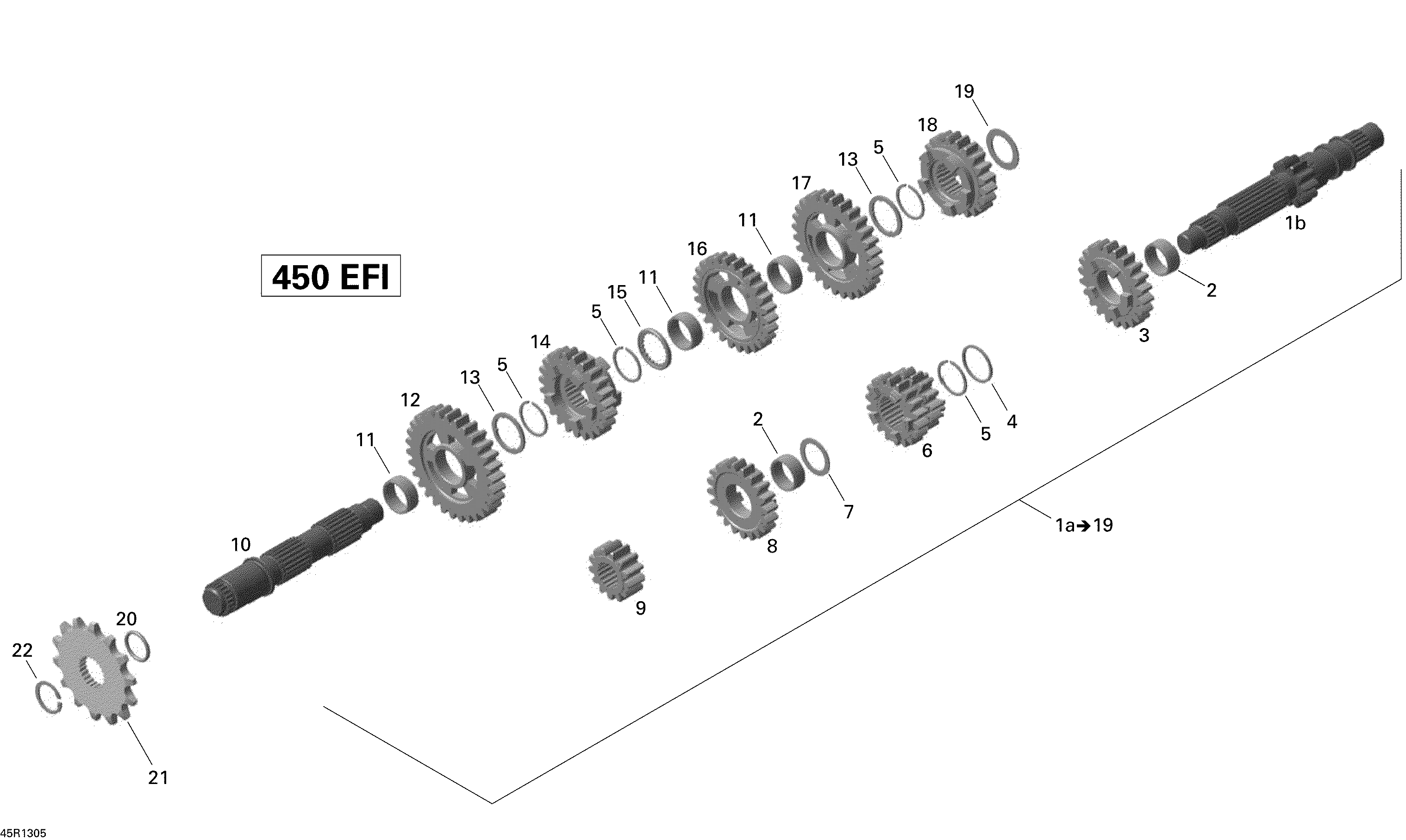

05- Gear Box для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1a420281498 Gear Box Ass'y. Includes 1a to 19Gear Box Ass'y. Includes 1a to 19
-
1b420620950 Clutch ShaftClutch Shaft
-
2420232662 Needle BearingNeedle Bearing
-
3420234883 Free Pinion, 22 TeethFree Pinion, 22 Teeth
-
4420227470 Thrust WasherThrust Washer
-
5420245340 Snap Ring 24Snap Ring 24
-
6420435062 Pinion Gear, 15/18 TeethPinion Gear, 15/18 Teeth
-
7420227440 Thrust WasherThrust Washer
-
8420435092 Free Pinion, 20 TeethFree Pinion, 20 Teeth
-
9420435040 Fixed Gear, 13 TeethFixed Gear, 13 Teeth
-
10420620960 Main ShaftMain Shaft
-
11420232742 Needle BearingNeedle Bearing
-
12420435050 Free Pinion, 30 TeethFree Pinion, 30 Teeth
-
13420227460 Thrust WasherThrust Washer
-
14420435102 Pinion Gear, 23 TeethPinion Gear, 23 Teeth
-
15420227491 Angular RingAngular Ring
-
16420435082 Free Pinion, 26 TeethFree Pinion, 26 Teeth
-
17420435070 Free Pinion, 28 TeethFree Pinion, 28 Teeth
-
18420234992 Pinion Gear, 21 TeethPinion Gear, 21 Teeth
-
19420227430 Thrust WasherThrust Washer
-
20420250050 O-RingO-Ring
-
21715000591 Sprocket Kit, 14 TeethSprocket Kit, 14 Teeth
-
22420245650 Retaining RingRetaining Ring
