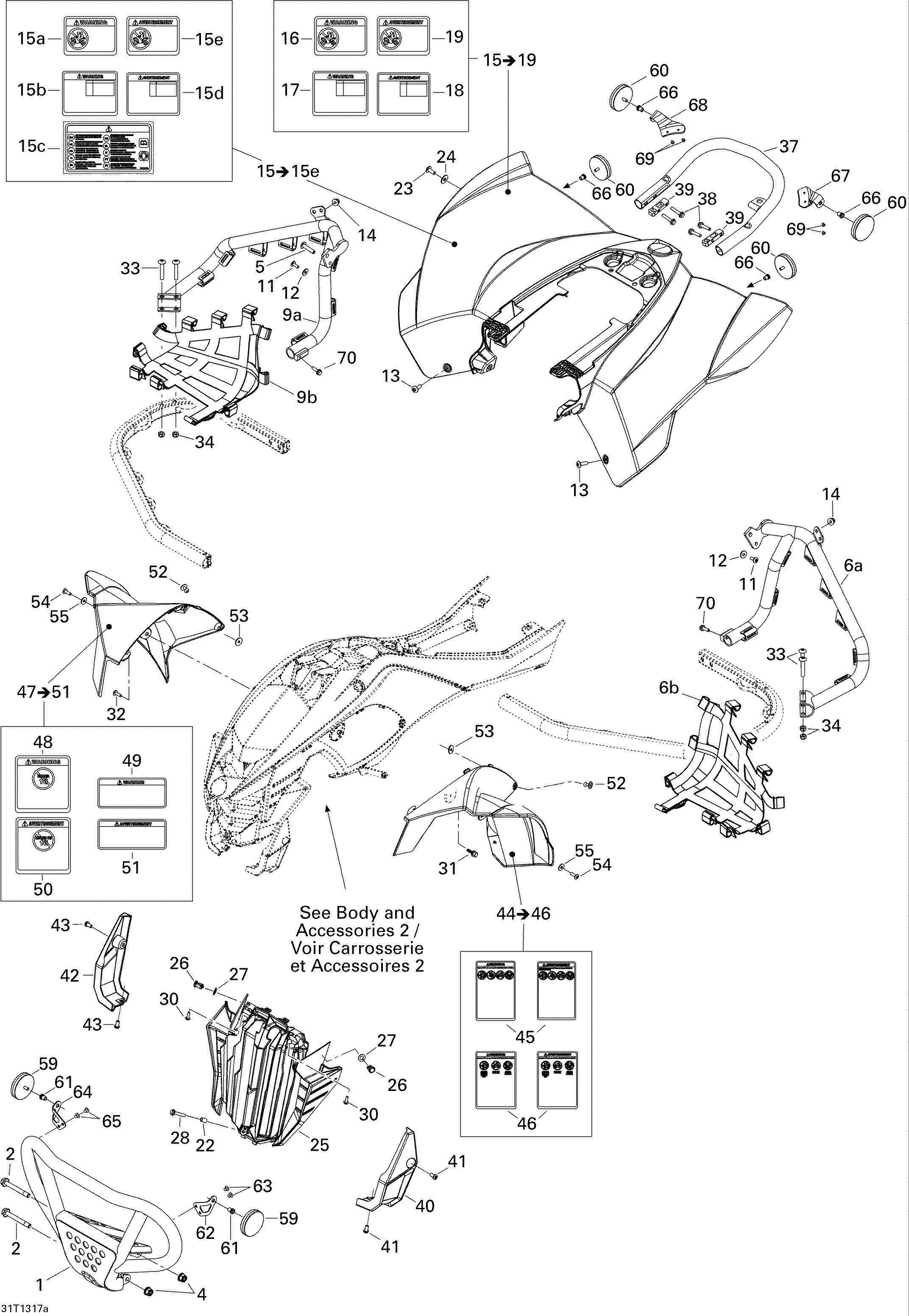

09- Body And Accessories 1 для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1705002767 Front BumperFront Bumper
-
2250000302 Hex. Flanged Screw M8 X 65, Scotch Grip. XmxHex. Flanged Screw M8 X 65, Scotch Grip. Xmx
-
4233181434 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5250000256 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
6a705003807 LH ProtectorLH Protector
-
6b705003820 LH NetLH Net
-
9a705003817 RH ProtectorRH Protector
-
9b705003821 RH NetRH Net
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12234062670 Flat WasherFlat Washer
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
16704900005 Warning Decal, PassengerWarning Decal, Passenger
-
17704901365 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
18704901395 Warning Decal Tire Pressure, FrenchWarning Decal Tire Pressure, French
-
19704900006 Warning Decal, Passenger, FrenchWarning Decal, Passenger, French
-
15715001345 Rear Fender Kit. Includes 15 to 15e, XmxRear Fender Kit. Includes 15 to 15e, Xmx
-
15a704900005 Warning Decal, PassengerWarning Decal, Passenger
-
15b704902001 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
15c704901394 International Decal, MultilingualInternational Decal, Multilingual
-
15d704902002 Warning Decal, Passenger, FrenchWarning Decal, Passenger, French
-
15e704900006 Warning Decal, Passenger, FrenchWarning Decal, Passenger, French
-
22707000058 SpacerSpacer
-
23250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
24234062670 Flat WasherFlat Washer
-
25705004009 Radiator Protector Ass'yRadiator Protector Ass'y
-
26293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
27506151252 WasherWasher
-
28207662534 Hex. Flanged ScrewHex. Flanged Screw
-
30243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
31207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
32207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
33250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
34232581434 Elastic Stop Nut. XmxElastic Stop Nut. Xmx
-
37705002769 Rear BumperRear Bumper
-
38207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
39705002913 ClampClamp
-
40705002514 LH Radiator MouldingLH Radiator Moulding
-
41250000339 Socket Screw M6 X 12Socket Screw M6 X 12
-
42705002515 RH Radiator MouldingRH Radiator Moulding
-
43250000339 Socket Screw M6 X 12Socket Screw M6 X 12
-
44715000721 LH Front Fender Kit, Black. Includes 44 to 46LH Front Fender Kit, Black. Includes 44 to 46
-
45704900002 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
46704901875 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
47715000569 RH Front Fender Kit, Black. Includes 47 to 51RH Front Fender Kit, Black. Includes 47 to 51
-
48704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
49704901133 Warning Decal, PerformanceWarning Decal, Performance
-
50704900012 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
51704901135 Warning Decal, Performance, FrenchWarning Decal, Performance, French
-
52293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
53503191273 WasherWasher
-
54250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
55234062670 Flat WasherFlat Washer
-
59705002409 Reflector, AmberReflector, Amber
-
60705002408 Reflector, RedReflector, Red
-
61293450268 InsertInsert
-
62705002655 LH Reflector SupportLH Reflector Support
-
63293150144 Stavex RivetStavex Rivet
-
64705002656 RH Reflector SupportRH Reflector Support
-
65293150144 Stavex RivetStavex Rivet
-
66293450268 InsertInsert
-
67705002911 LH SupportLH Support
-
68705002912 RH SupportRH Support
-
69293150144 Stavex RivetStavex Rivet
-
70207662034 Hex. Flanged Screw M6 X 20. XmxHex. Flanged Screw M6 X 20. Xmx
