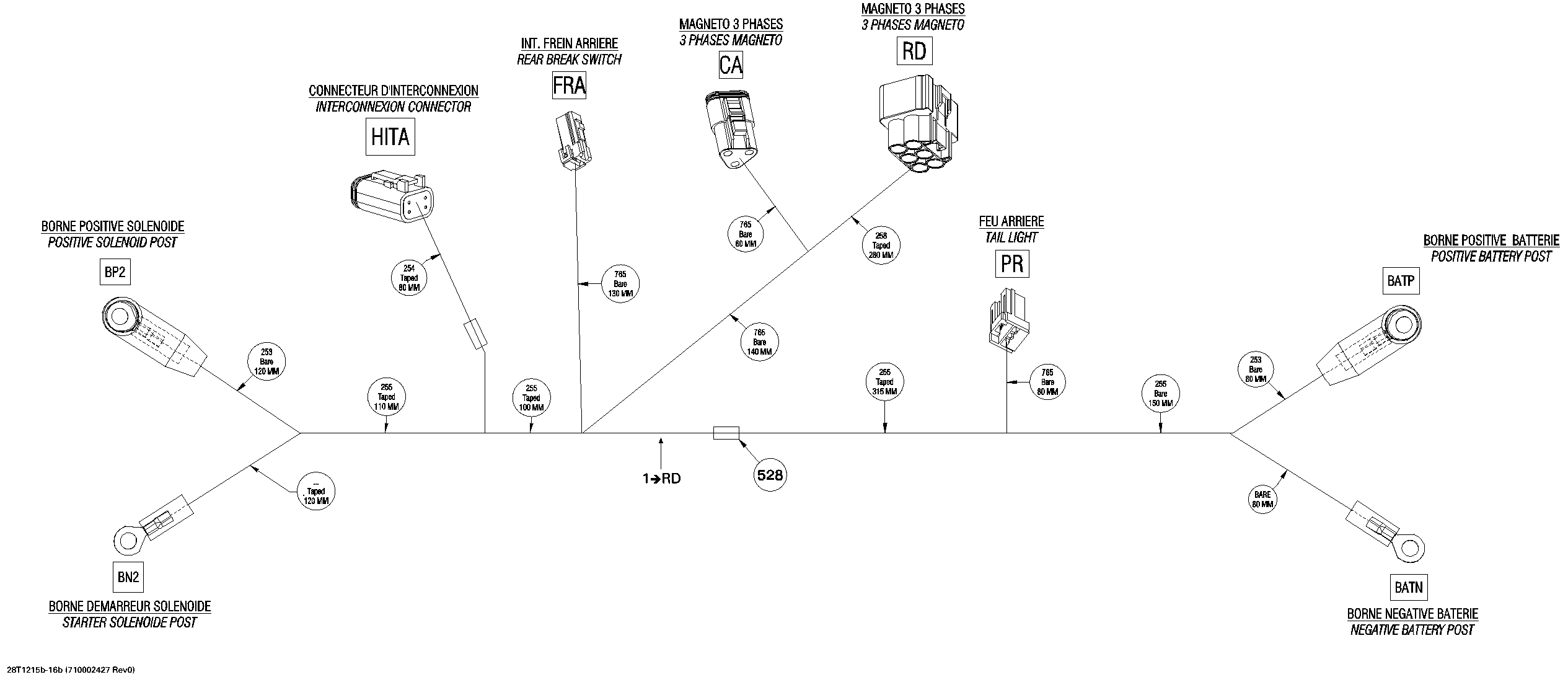

10- Main Harness Rear Section для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1710002427 Rear Main Harness Ass'y. Includes 1 to RDRear Main Harness Ass'y. Includes 1 to RD
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
BATN710000913 TerminalTerminal
-
BATP710000526 Protector CapProtector Cap
-
BATP710000913 TerminalTerminal
-
BN2710000913 TerminalTerminal
-
BP2710000526 Protector CapProtector Cap
-
BP2710000913 TerminalTerminal
-
CA278001661 Female TerminalFemale Terminal
-
CA515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
CA515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
FRA515175231 Female TerminalFemale Terminal
-
FRA515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HITA278001661 Female TerminalFemale Terminal
-
HITA515175672 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HITA515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
HITA278001665 Female TerminalFemale Terminal
-
PR515175231 Female TerminalFemale Terminal
-
PR515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
RD710000336 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
RD710000337 Joint SealJoint Seal
-
RD710000339 Secondary LockSecondary Lock
-
RD710000343 CapCap
-
RD710000356 Female TerminalFemale Terminal
