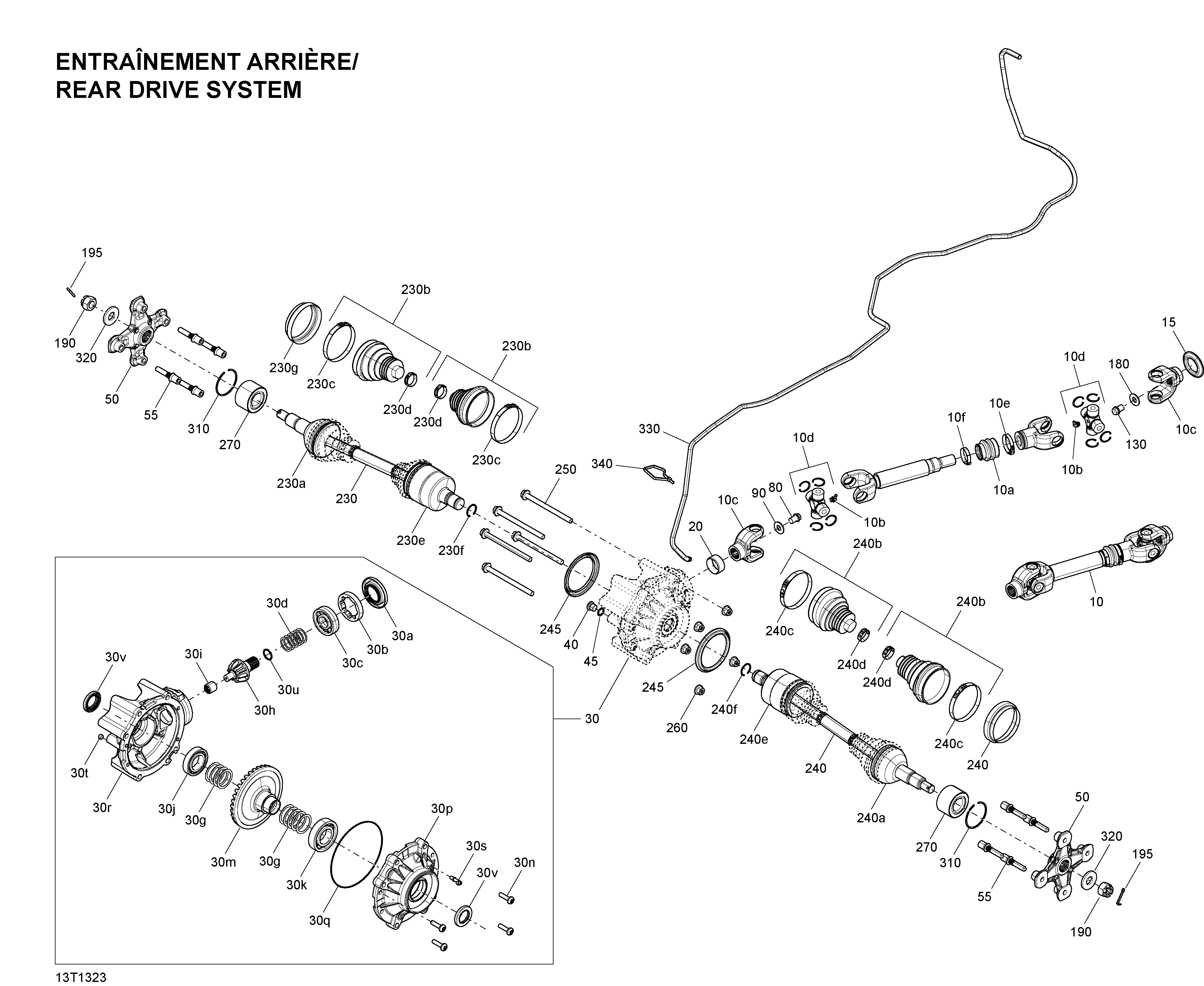

08- Drive System, Rear для BRP Outlander 650EFI XMR - 2013
-
№АртикулНазвание
-
10705501406 Rear Propeller Shaft Ass'y. Includes 10 to 10eRear Propeller Shaft Ass'y. Includes 10 to 10e
-
10a715900118 Rubber BootRubber Boot
-
10b715900184 Grease FittingGrease Fitting
-
10c715900101 Fixe YokeFixe Yoke
-
10d715500371 Universal JointUniversal Joint
-
10e509000045 Oetiker Gear ClampOetiker Gear Clamp
-
10f293650138 Oetiker Gear ClampOetiker Gear Clamp
-
15705501123 ProtectorProtector
-
20705400036 Wear RingWear Ring
-
30705501419 Rear Differential Ass'y. Includes 30 to 30vRear Differential Ass'y. Includes 30 to 30v
-
30a705400027 Oil SealOil Seal
-
30b705500987 NutNut
-
30c705500260 Ball BearingBall Bearing
-
30d705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
30d703500049 Pinion Shim KitPinion Shim Kit
-
30d705501162 Pinion Gear ShimPinion Gear Shim
-
30g703500548 Differential Shim KitDifferential Shim Kit
-
30h705501570 10 Teeth Pinion10 Teeth Pinion
-
30i705501408 Needle BearingNeedle Bearing
-
30j705500749 Ball BearingBall Bearing
-
30k705501389 Ball BearingBall Bearing
-
30m705501403 36 Teeth Pinion36 Teeth Pinion
-
30n705500892 ScrewScrew
-
30p705501507 Rear Differential CoverRear Differential Cover
-
30q705500265 SealSeal
-
30r705501420 Pinion Rear CoverPinion Rear Cover
-
30s705500893 Vent ValveVent Valve
-
30t705500894 Drain PlugDrain Plug
-
30u705500267 O-RingO-Ring
-
30v705501196 Oil SealOil Seal
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
55250300048 Wheel StudWheel Stud
-
80250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
90250200102 Flat Washer M12Flat Washer M12
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
180250200102 Flat Washer M12Flat Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400036 Cotter PinCotter Pin
-
230705501485 LH Homocinetic Joint. Includes 230 to 230fLH Homocinetic Joint. Includes 230 to 230f
-
230a705501776 CV JointCV Joint
-
230b705501777 Rubber Boot Kit. Includes 230b to 230dRubber Boot Kit. Includes 230b to 230d
-
230c715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230d715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230e705501780 Plunging JointPlunging Joint
-
230f705501781 CirclipCirclip
-
230g705501842 Joint ProtectorJoint Protector
-
240705501486 RH Homocinetic Joint. Includes 240 to 240fRH Homocinetic Joint. Includes 240 to 240f
-
240a705501776 CV JointCV Joint
-
240b705501777 Rubber Boot Kit. Includes 240b to 240dRubber Boot Kit. Includes 240b to 240d
-
240c715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
240d715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
240e705501780 Plunging JointPlunging Joint
-
240f705501781 CirclipCirclip
-
240g705501842 Joint ProtectorJoint Protector
-
245705501124 Wear RingWear Ring
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350040 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200049 Spring WasherSpring Washer
-
330415080200 Hose, PolyurethaneHose, Polyurethane
-
340293750008 Tie-Rap 350 mmTie-Rap 350 mm
