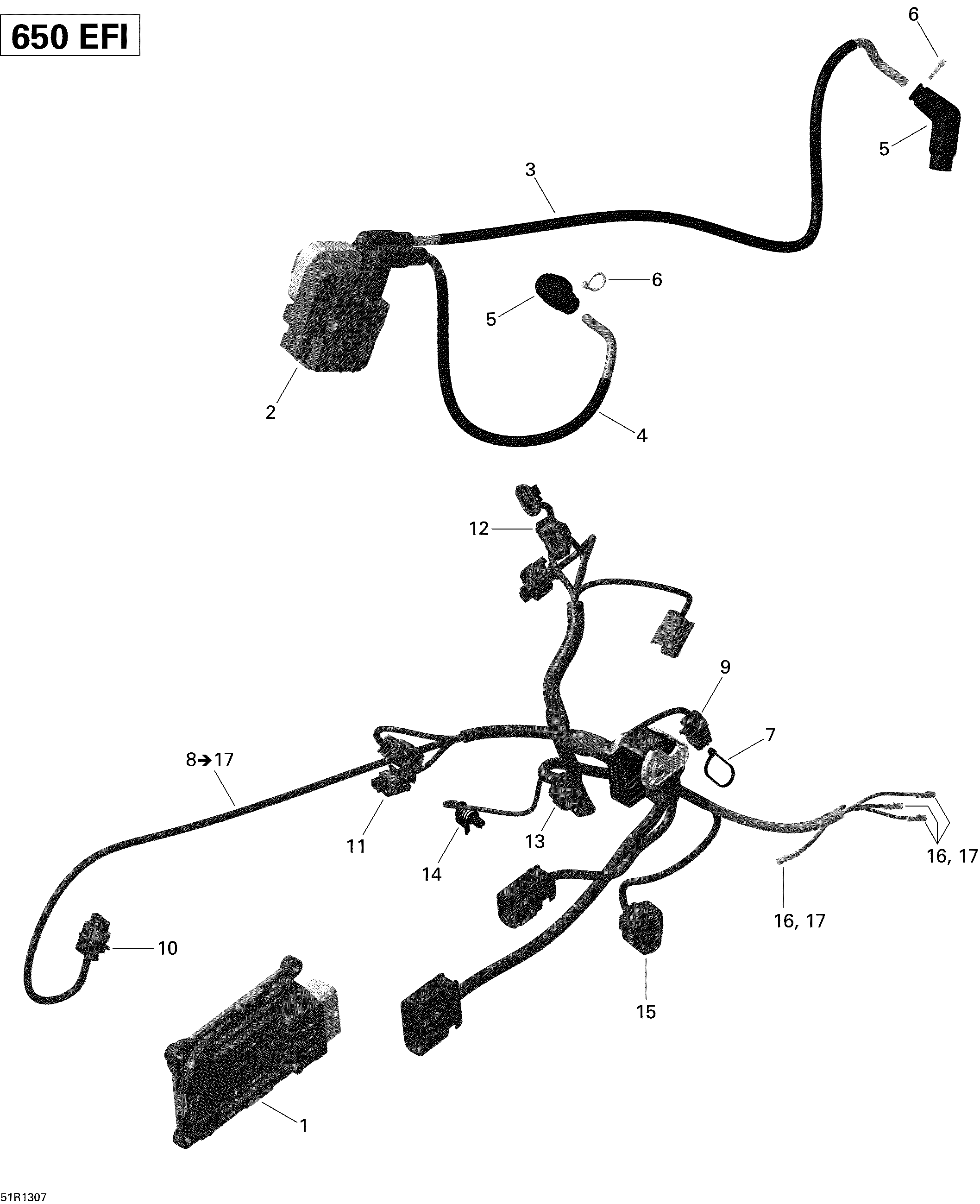

10- Engine Harness And Electronic Module Outlander XMR для BRP Outlander 650EFI XMR - 2013
-
№АртикулНазвание
-
1420264780 ECM Connector. North AmericaECM Connector. North America
-
1420264780 ECM Connector. InternationalECM Connector. International
-
2278001546 Ignition CoilIgnition Coil
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8420264790 Engine Wiring Harness. Includes 8 to 17Engine Wiring Harness. Includes 8 to 17
-
9278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
10278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
11278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
13409207000 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
15710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
16278001009 Female TerminalFemale Terminal
-
17278001007 Insulated SheathInsulated Sheath
