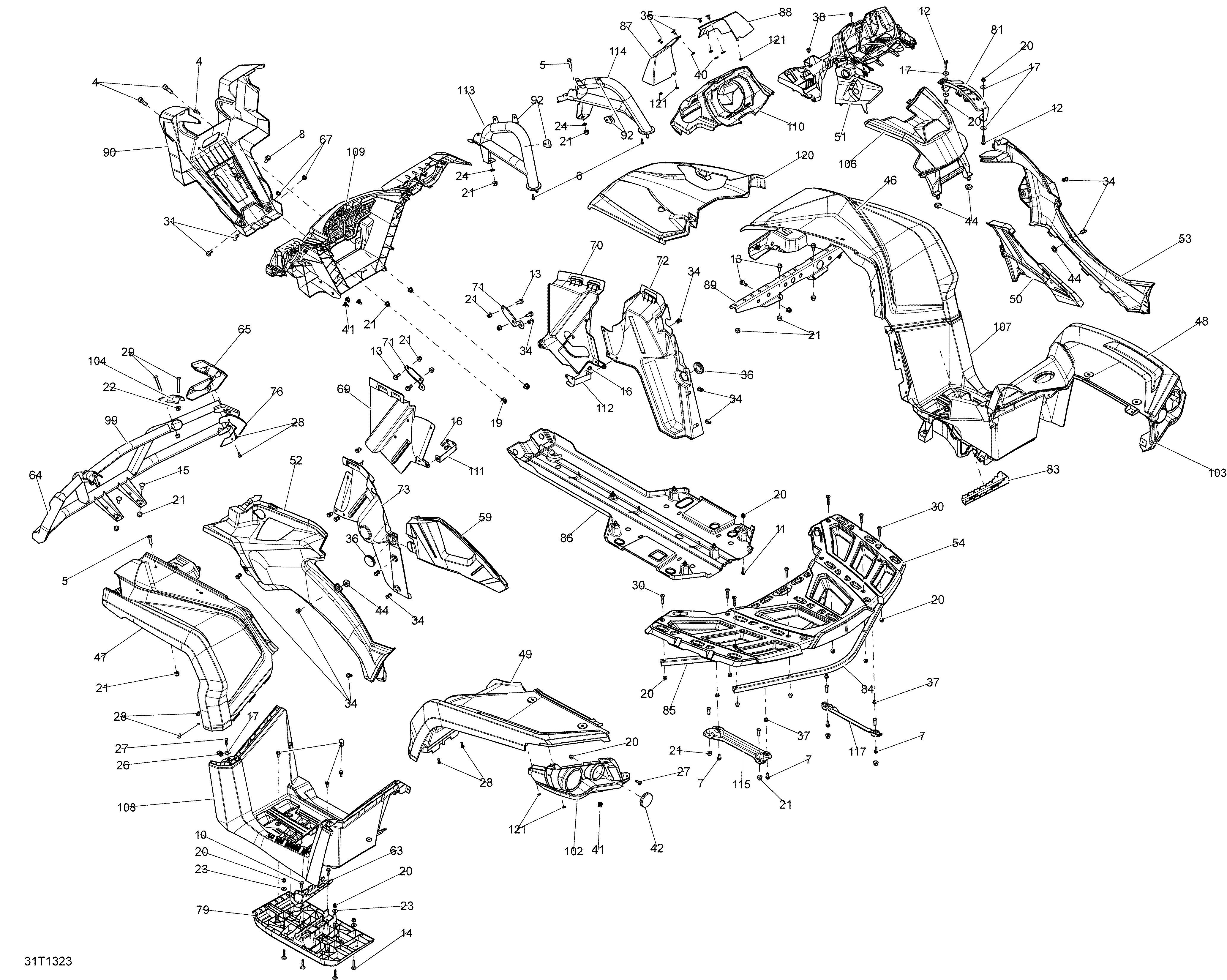

09- Body And Accessories для BRP Outlander 650EFI XMR - 2013
-
№АртикулНазвание
-
4205003044 Socket Screw M10 x 30. Int'lSocket Screw M10 x 30. Int'l
-
4236282084 Hex. Screw M8 X 20. North AmericaHex. Screw M8 X 20. North America
-
5207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
6207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
13207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
14207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
15207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
16210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
17224061201 Flat WasherFlat Washer
-
19233201434 Hex. Flanged Elastic Nut M10. Int'lHex. Flanged Elastic Nut M10. Int'l
-
19233281434 Hex. Flanged Elastic Nut M8. North AmericaHex. Flanged Elastic Nut M8. North America
-
20233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
21233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
23234062410 Flat Washer 6 mmFlat Washer 6 mm
-
24234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
26250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
29250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
30250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
31250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
34293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
35293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293250242 Rubber CoverRubber Cover
-
37293450274 InsertInsert
-
38293830005 Rubber PlugRubber Plug
-
40517124300 WasherWasher
-
41517302785 ClipClip
-
42705002408 Reflector, RedReflector, Red
-
44705003264 GrommetGrommet
-
46715001514 RH Front Fender Kit, BlackRH Front Fender Kit, Black
-
47715001504 LH Front Fender Kit, BlackLH Front Fender Kit, Black
-
48715001810 RH Rear Fender Kit, Black. North AmericaRH Rear Fender Kit, Black. North America
-
48715001818 RH Rear Fender Kit, Black. Int'lRH Rear Fender Kit, Black. Int'l
-
49715001798 LH Rear Fender Kit, BlackLH Rear Fender Kit, Black
-
50705003444 Engine CoverEngine Cover
-
51715001552 Dash Support KitDash Support Kit
-
52705003446 Yellow LH PannelYellow LH Pannel
-
53705003447 Yellow RH PannelYellow RH Pannel
-
54715001852 Rack KitRack Kit
-
59705004147 LH Extension PannelLH Extension Pannel
-
63705004352 LH FootrestLH Footrest
-
64705004409 Cap (Front LH) (Rear RH)Cap (Front LH) (Rear RH)
-
65705004410 Cap (Front RH) (Rear LH)Cap (Front RH) (Rear LH)
-
67705004497 RingRing
-
69705004557 LH Inner FenderLH Inner Fender
-
70705004558 RH Inner FenderRH Inner Fender
-
71705004565 Lower Fender SupportLower Fender Support
-
72705004587 RH Inner FenderRH Inner Fender
-
73705004588 LH Inner FenderLH Inner Fender
-
76705004987 Bracket CoverBracket Cover
-
79705005254 LH. FootboardLH. Footboard
-
79705005253 RH. FootboardRH. Footboard
-
81705005258 IndicatorIndicator
-
83705005395 RH FootrestRH Footrest
-
84705005469 TubeTube
-
85705005470 TubeTube
-
86705007553 Central Skid PlateCentral Skid Plate
-
87705006134 LH Air DeflectorLH Air Deflector
-
88705006135 RH Air DeflectorRH Air Deflector
-
89705006220 Front Bumper Center SupportFront Bumper Center Support
-
90705006299 Front Guard PlateFront Guard Plate
-
99705006876 Black Front BumperBlack Front Bumper
-
102705006643 LH Rear FaciaLH Rear Facia
-
103705006650 RH Rear FaciaRH Rear Facia
-
104705006691 Upper BracketUpper Bracket
-
106715001765 Dash KitDash Kit
-
107705007039 RH FootrestRH Footrest
-
108705007040 LH FootrestLH Footrest
-
109705007041 Front FaciaFront Facia
-
110705007095 Gauge SupportGauge Support
-
111705007140 LH Inner Fender BracketLH Inner Fender Bracket
-
112705007141 RH Inner Fender BracketRH Inner Fender Bracket
-
113705006385 LH BumperLH Bumper
-
114705006403 RH BumperRH Bumper
-
115705007277 LH SupportLH Support
-
117705007278 RH SupportRH Support
-
120708301154 HoodHood
-
121732610072 Push NutPush Nut
