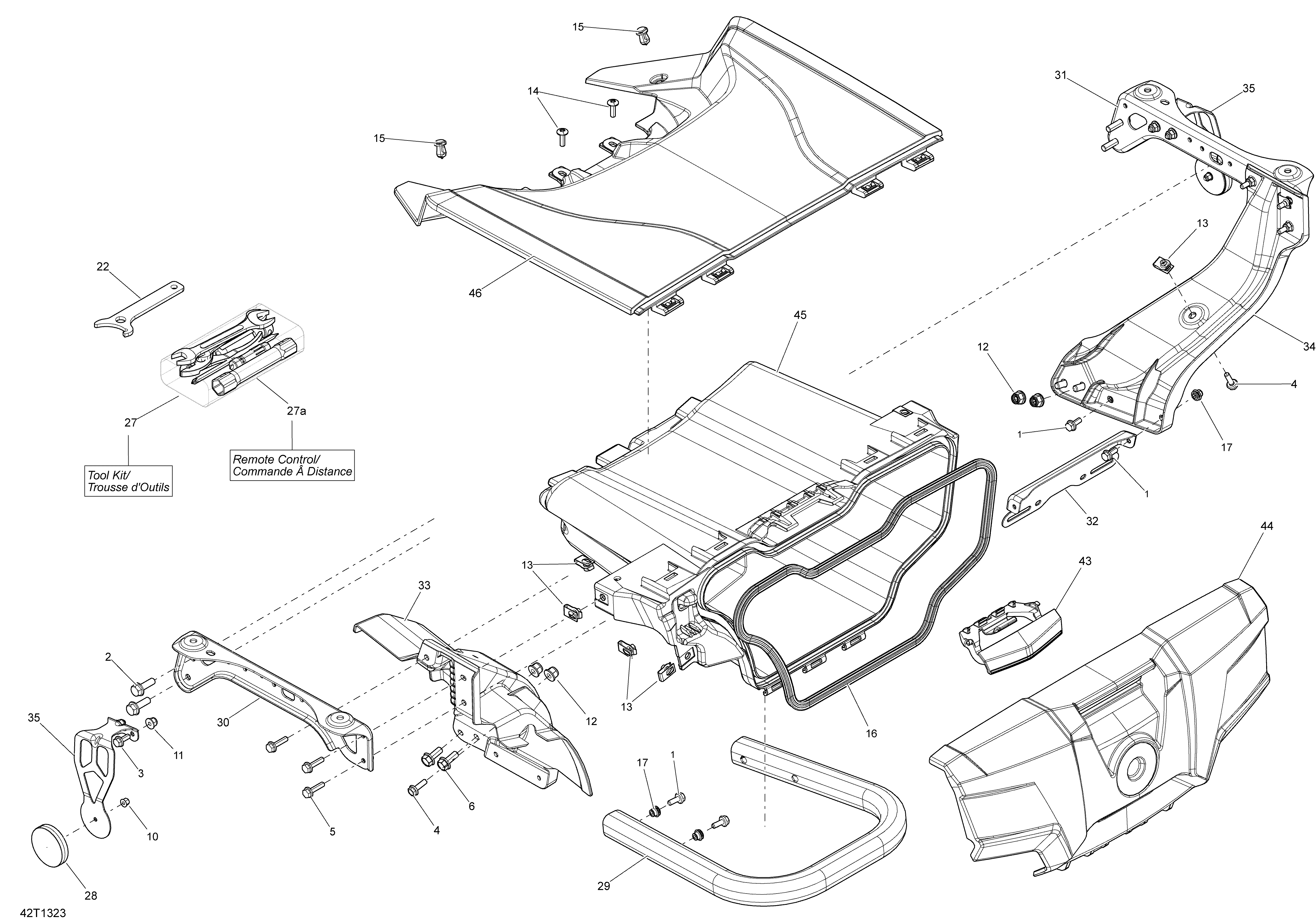

09- Rear Cargo Box для BRP Outlander 650EFI XMR - 2013
-
№АртикулНазвание
-
1207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
14250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
15293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
16293250275 Neoprene SealNeoprene Seal
-
17293450274 InsertInsert
-
22529000035 Adjustement WrenchAdjustement Wrench
-
27704700148 Tool KitTool Kit
-
28705002408 Reflector, RedReflector, Red
-
29715001564 Rear BumperRear Bumper
-
30705004563 LH SupportLH Support
-
31705004564 RH SupportRH Support
-
32705004806 Plate SupportPlate Support
-
33705006997 LH Cargo SupportLH Cargo Support
-
34705006998 RH Cargo SupportRH Cargo Support
-
35705202576 Reflector SupportReflector Support
-
43708200272 HandleHandle
-
44708300150 Rear PanelRear Panel
-
45708300674 Rear Storage BoxRear Storage Box
-
46708300848 Rear Storage CoverRear Storage Cover
-
27a710002270 Remote Control. Int'lRemote Control. Int'l
