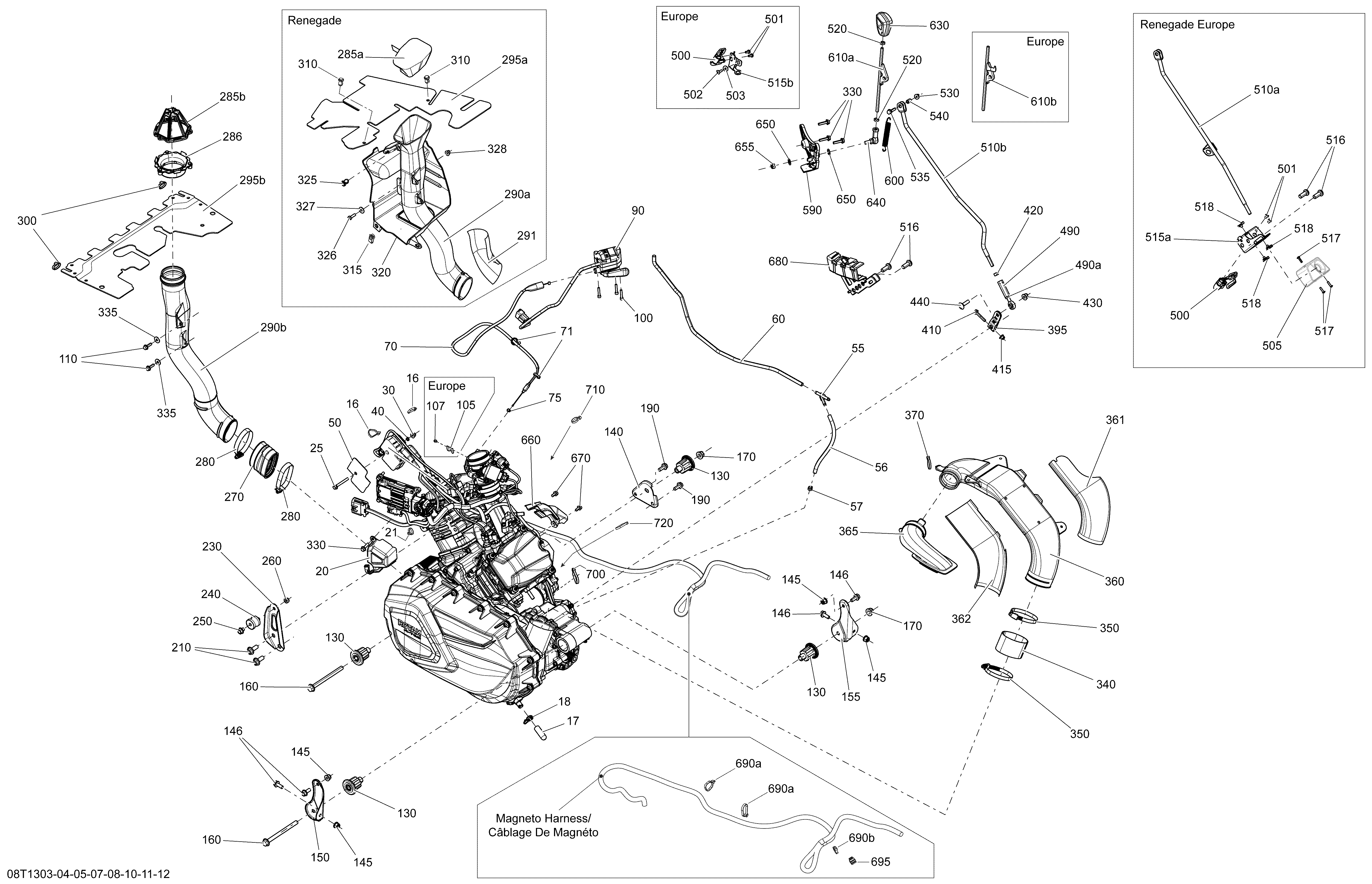

01- Engine And Engine Support для BRP Renegade 500EFI STD - 2013
-
№АртикулНазвание
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17707001185 PlugPlug
-
18707800506 Retainer ClipRetainer Clip
-
20707000945 CoverCover
-
21293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
25207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
50710000073 Insulator PadInsulator Pad
-
55293710059 Y-FittingY-Fitting
-
56415080200 Hose, PolyurethaneHose, Polyurethane
-
57293650195 Clamp, OetikerClamp, Oetiker
-
60415080200 Hose, PolyurethaneHose, Polyurethane
-
70707000955 Throttle CableThrottle Cable
-
71414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
75707000434 Cable GuideCable Guide
-
90707000595 Throttle HandleThrottle Handle
-
100205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
105707000994 Speed Limiter. EuropeSpeed Limiter. Europe
-
107250000332 Torx Screw M4 X 8. EuropeTorx Screw M4 X 8. Europe
-
110207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
130707000426 Anti-Vibration MountAnti-Vibration Mount
-
140707000761 Engine Bracket, BlackEngine Bracket, Black
-
145233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
146207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
150707001193 LH Rear Engine BracketLH Rear Engine Bracket
-
155707001194 RH Rear Engine BracketRH Rear Engine Bracket
-
160230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
170233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
190207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
210207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
230707001256 Upper Engine BracketUpper Engine Bracket
-
240707000949 Rubber IsolatorRubber Isolator
-
250207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
260232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
270707001043 Flexible AdaptorFlexible Adaptor
-
280293650091 Norma ClampNorma Clamp
-
290a707000790 CVT Air InletCVT Air Inlet
-
291707001096 Reflective SheetReflective Sheet
-
295a707001041 Upper Water DeflectorUpper Water Deflector
-
310293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
315250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
320707000928 Water DeflectorWater Deflector
-
325293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
326207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
327234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
328233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
330207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
335234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
340707000789 AdaptorAdaptor
-
350293650118 Norma Gear ClampNorma Gear Clamp
-
360706600016 Air OutletAir Outlet
-
361707001217 Heat ShieldHeat Shield
-
362707001218 Heat ShieldHeat Shield
-
365706600018 Air OutletAir Outlet
-
370414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
395707000911 LeverLever
-
410207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
415233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
420250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440207783044 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
490707000966 Ball Joint Ass'y. Includes 490 to 490aBall Joint Ass'y. Includes 490 to 490a
-
490a232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
500707000666 Lock. EuropeLock. Europe
-
501205951046 Socket Head Screw M5 X 10. EuropeSocket Head Screw M5 X 10. Europe
-
505707000667 Cover Lock. EuropeCover Lock. Europe
-
510a707001012 Shifter Rod. EuropeShifter Rod. Europe
-
510b707001082 Shifter Rod. Except EuropeShifter Rod. Except Europe
-
515a707001009 Fixing Plate. EuropeFixing Plate. Europe
-
516205402596 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
517250000242 Truss Torx Screw M4 X 16. EuropeTruss Torx Screw M4 X 16. Europe
-
520232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
530233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
535207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
540293900019 BushingBushing
-
590707000971 Shift Arm BaseShift Arm Base
-
600707000577 SpringSpring
-
610a707000840 Shift ArmShift Arm
-
630707000965 Lever ButtonLever Button
-
640707000546 RH Ball JointRH Ball Joint
-
650506151252 WasherWasher
-
655232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
660707000410 Cover OPSCover OPS
-
670210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
680707000992 Upper Cable SupportUpper Cable Support
-
690a414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
690b414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
695710002896 Tie-Rap ClipTie-Rap Clip
-
700414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
710414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
720293750002 Tie-Rap 142 mmTie-Rap 142 mm
