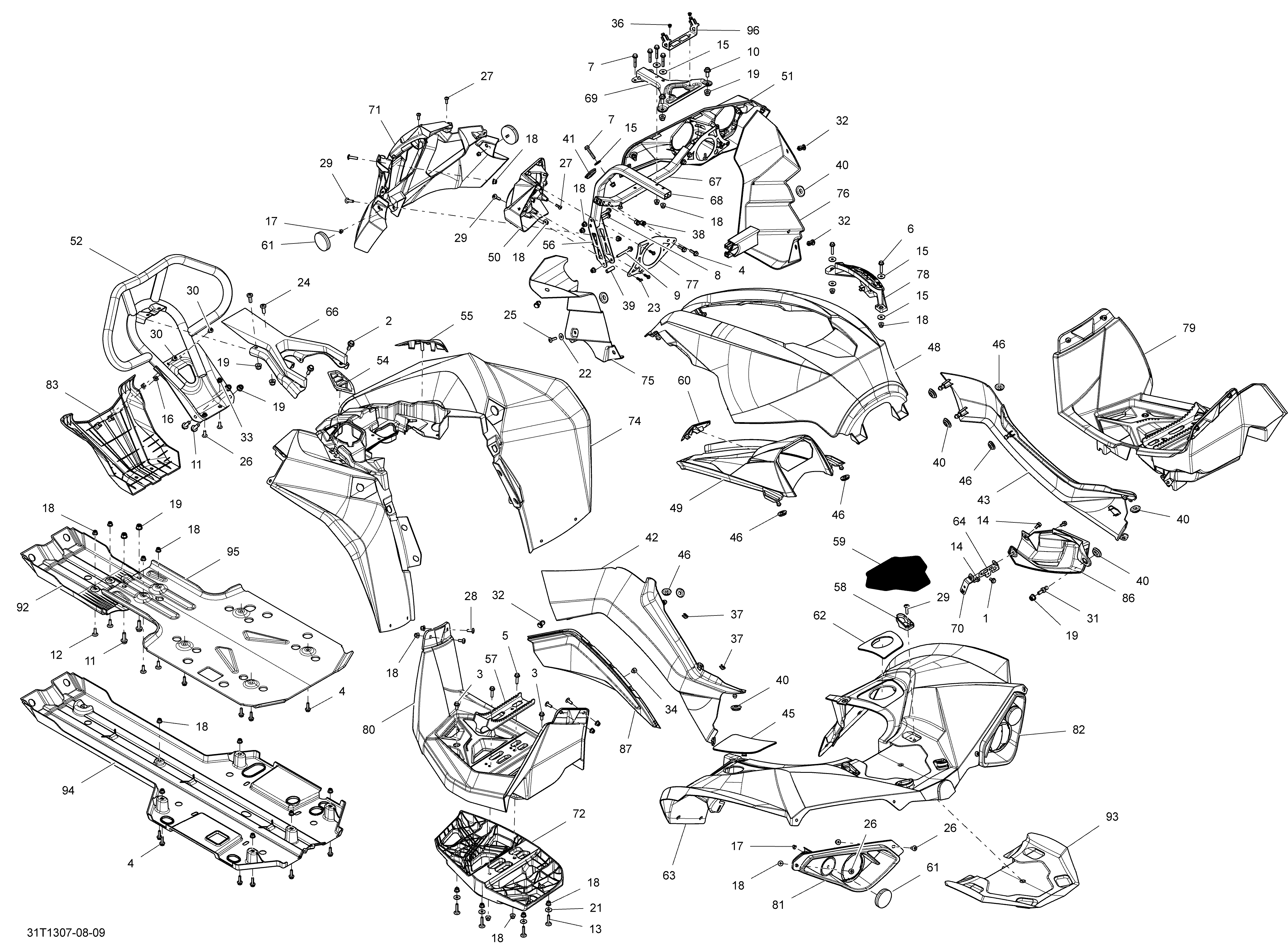

09- Body And Accessories для BRP Renegade 500EFI STD - 2013
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
3207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
7207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
8207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
9207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
10207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207763044 Carriage Bolt M6 X 30Carriage Bolt M6 X 30
-
14210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
15224061201 Flat WasherFlat Washer
-
16232862412 Square Nut M6Square Nut M6
-
17233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
18233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
21234062410 Flat Washer 6 mmFlat Washer 6 mm
-
22234062670 Flat WasherFlat Washer
-
23241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
24250000117 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
25250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
26250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
27250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
28250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
29250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
30250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
31250300039 Ball Head StudBall Head Stud
-
32293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
33293450232 InsertInsert
-
34293830005 Rubber PlugRubber Plug
-
36390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
37414479100 ClipClip
-
38415107300 InsertInsert
-
39705005809 SpacerSpacer
-
40705000321 Oval WasherOval Washer
-
41705003668 Oblong GrommetOblong Grommet
-
42705002958 LH Lateral PanelLH Lateral Panel
-
43705002959 RH Lateral PanelRH Lateral Panel
-
45705001910 LH Cap, BlackLH Cap, Black
-
46705003264 GrommetGrommet
-
48715001493 Central Pannel Kit, Yellow. North America, Int'lCentral Pannel Kit, Yellow. North America, Int'l
-
48715001495 Central Pannel Kit, Yellow. EuropeCentral Pannel Kit, Yellow. Europe
-
49705003556 DashboardDashboard
-
50705004508 LH Front FaciaLH Front Facia
-
51705004509 RH Front FaciaRH Front Facia
-
52705004993 Welded Front BumperWelded Front Bumper
-
54705002276 LH GrillLH Grill
-
55705002277 RH GrillRH Grill
-
56705002282 SupportSupport
-
57705002326 FootrestFootrest
-
58705002342 HookHook
-
59705002343 Rear CapetRear Capet
-
60705002353 CapCap
-
61705002408 Reflector, RedReflector, Red
-
61705002409 Reflector, AmberReflector, Amber
-
62705002420 Neck CapNeck Cap
-
63715001881 Rear Fender Kit, Yellow. North AmericaRear Fender Kit, Yellow. North America
-
63715001883 Rear Fender Kit, Yellow. Int'lRear Fender Kit, Yellow. Int'l
-
63715001885 Rear Fender Kit, Yellow. EuropeRear Fender Kit, Yellow. Europe
-
64705002667 Engine Cover SupportEngine Cover Support
-
66705003505 Bumper SupportBumper Support
-
67705003510 Body TubeBody Tube
-
68705003511 Front TubeFront Tube
-
69705003599 Painted BracketPainted Bracket
-
70705003646 Engine Cover SupportEngine Cover Support
-
71705003948 Front FaciaFront Facia
-
72705004176 LH FootboardLH Footboard
-
72705004177 RH FootboardRH Footboard
-
74715001480 Front Fender Kit, YellowFront Fender Kit, Yellow
-
75705004307 LH Inner FenderLH Inner Fender
-
76705004308 RH Inner FenderRH Inner Fender
-
77705004309 Painted Headlamp SupportPainted Headlamp Support
-
78705003838 Lever IndicatorLever Indicator
-
79705004729 RH Footboard/FenderRH Footboard/Fender
-
80705004730 LH Footboard/FenderLH Footboard/Fender
-
81705004731 LH Rear FaciaLH Rear Facia
-
81705004927 LH Rear Facia. EuropeLH Rear Facia. Europe
-
82705004732 RH Rear FaciaRH Rear Facia
-
82705004926 RH Rear Facia. EuropeRH Rear Facia. Europe
-
83705004850 Front Bumper PlateFront Bumper Plate
-
86705004966 Engine CoverEngine Cover
-
87705004988 Panel ExtensionPanel Extension
-
93705005840 Reflective SheetReflective Sheet
-
94705006018 Skid PlateSkid Plate
-
96710002482 Fuse HolderFuse Holder
