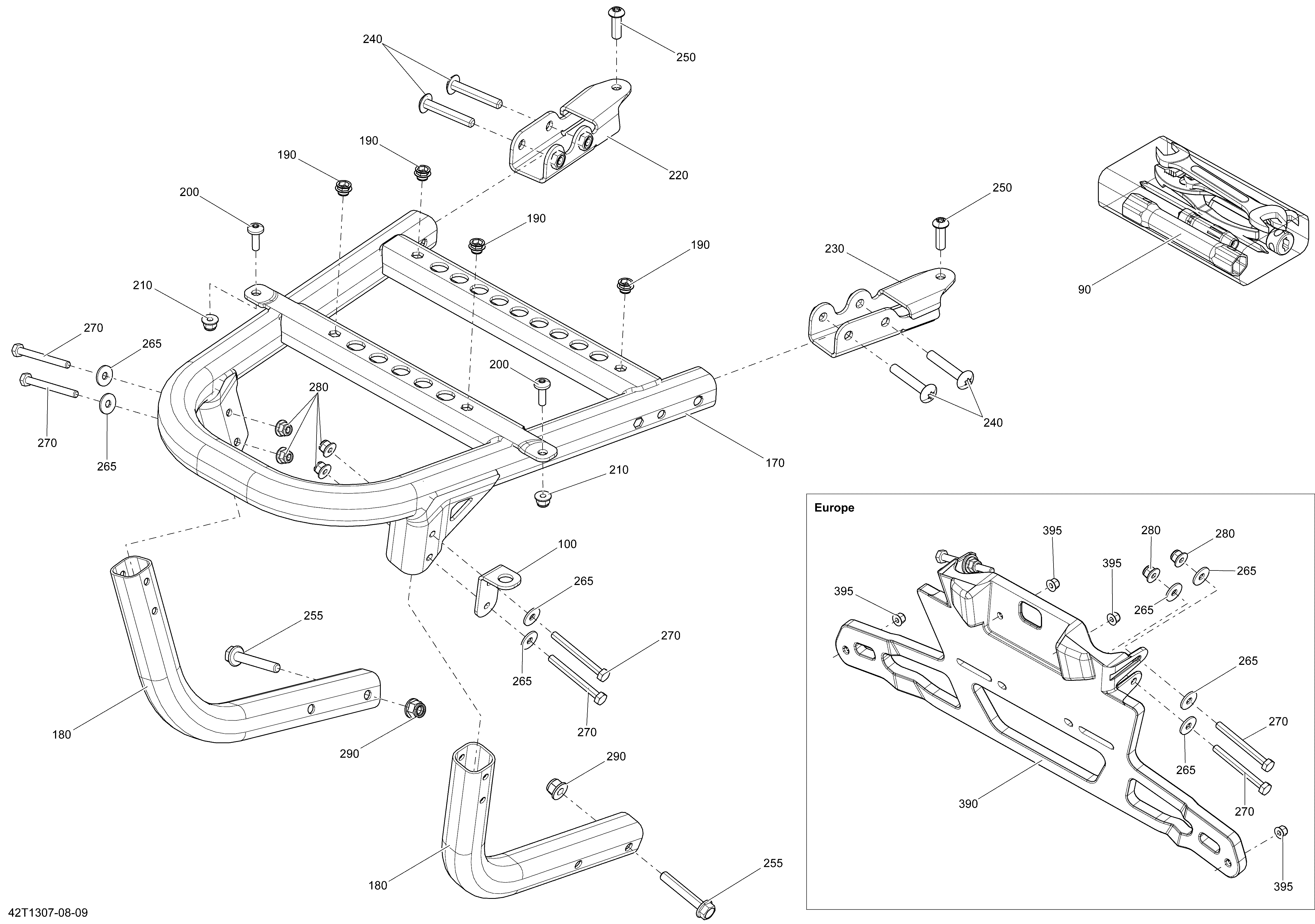

09- Rear Cargo Box для BRP Renegade 500EFI STD - 2013
-
№АртикулНазвание
-
90704700148 Tool KitTool Kit
-
100705005837 Flag Support. Except EuropeFlag Support. Except Europe
-
170715001894 Rear SupportRear Support
-
180705004981 Rear TubeRear Tube
-
190293450274 InsertInsert
-
200250000075 Torx Screw M6 X 20Torx Screw M6 X 20
-
210233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
220705004977 LH Front BracketLH Front Bracket
-
230705004978 RH Front BracketRH Front Bracket
-
240250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
250250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
255207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
265234062410 Flat Washer 6 mmFlat Washer 6 mm
-
265234062410 Flat Washer 6 mm. EuropeFlat Washer 6 mm. Europe
-
270207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
280233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
390708300553 Plate Support. EuropePlate Support. Europe
-
395233251414 Hex. Flanged Elastic Nut M5. EuropeHex. Flanged Elastic Nut M5. Europe
