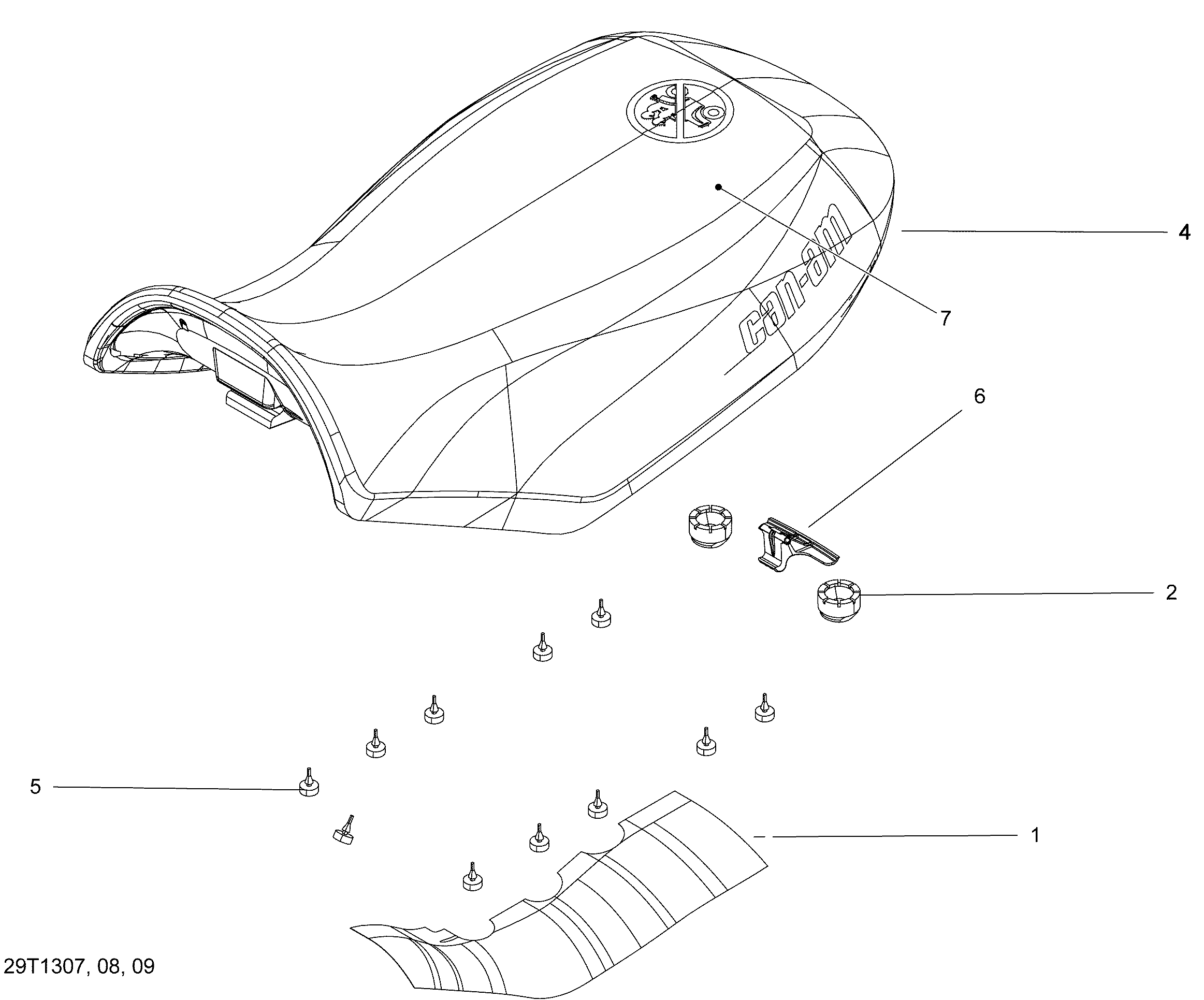

09- Seat для BRP Renegade 500EFI STD - 2013
-
№АртикулНазвание
-
1705005762 Heat ShieldHeat Shield
-
2708000760 Bumper RubberBumper Rubber
-
4715500356 Seat Ass'y. STDSeat Ass'y. STD
-
4715500357 Seat Ass'y. XXCSeat Ass'y. XXC
-
5708000759 Rubber StopperRubber Stopper
-
6708000914 LatchLatch
-
7708000887 Seat Cover. STDSeat Cover. STD
-
7708000886 Seat Cover. XXCSeat Cover. XXC
