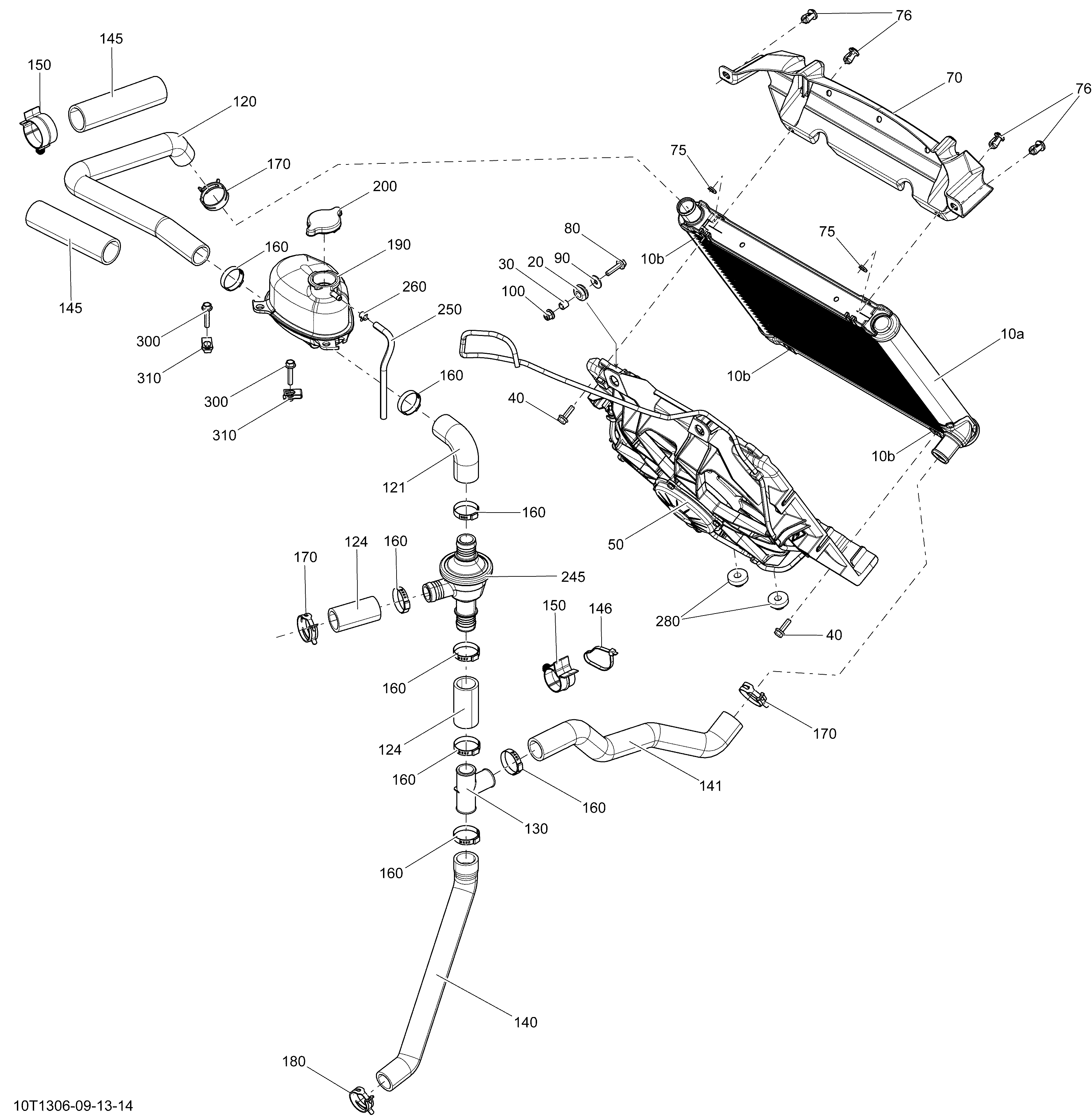

01- Cooling System для BRP Renegade STD, XXC, 1000 EFI - 2013
-
№АртикулНазвание
-
10a709200286 Radiator. Includes 10a to 10bRadiator. Includes 10a to 10b
-
10b715900148 Clip Nut M6 X 1Clip Nut M6 X 1
-
20293720053 GrommetGrommet
-
30293900105 BushingBushing
-
40207662034 Hex. Flanged ScrewHex. Flanged Screw
-
50709200462 Fan Ass'yFan Ass'y
-
80207662534 Hex. Flanged ScrewHex. Flanged Screw
-
90250200082 Flat WasherFlat Washer
-
100233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
120709200278 Radiator Inlet HoseRadiator Inlet Hose
-
121709200280 Thermostat Inlet HoseThermostat Inlet Hose
-
124709200299 HoseHose
-
130509000219 T-FittingT-Fitting
-
140709200392 HoseHose
-
141709200390 Radiator Outlet HoseRadiator Outlet Hose
-
145515176260 Tubing 35mmTubing 35mm
-
146414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
150275500590 RetainerRetainer
-
160509000162 Gear ClampGear Clamp
-
170293650166 Norma Spring ClampNorma Spring Clamp
-
180293650108 Norma Spring ClampNorma Spring Clamp
-
190709200297 Coolant TankCoolant Tank
-
200709200207 Pressure CapPressure Cap
-
245709200406 ThermostatThermostat
-
250415080200 Hose, PolyurethaneHose, Polyurethane
-
260414554800 Spring ClampSpring Clamp
-
280709200285 GrommetGrommet
-
300207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
310250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
