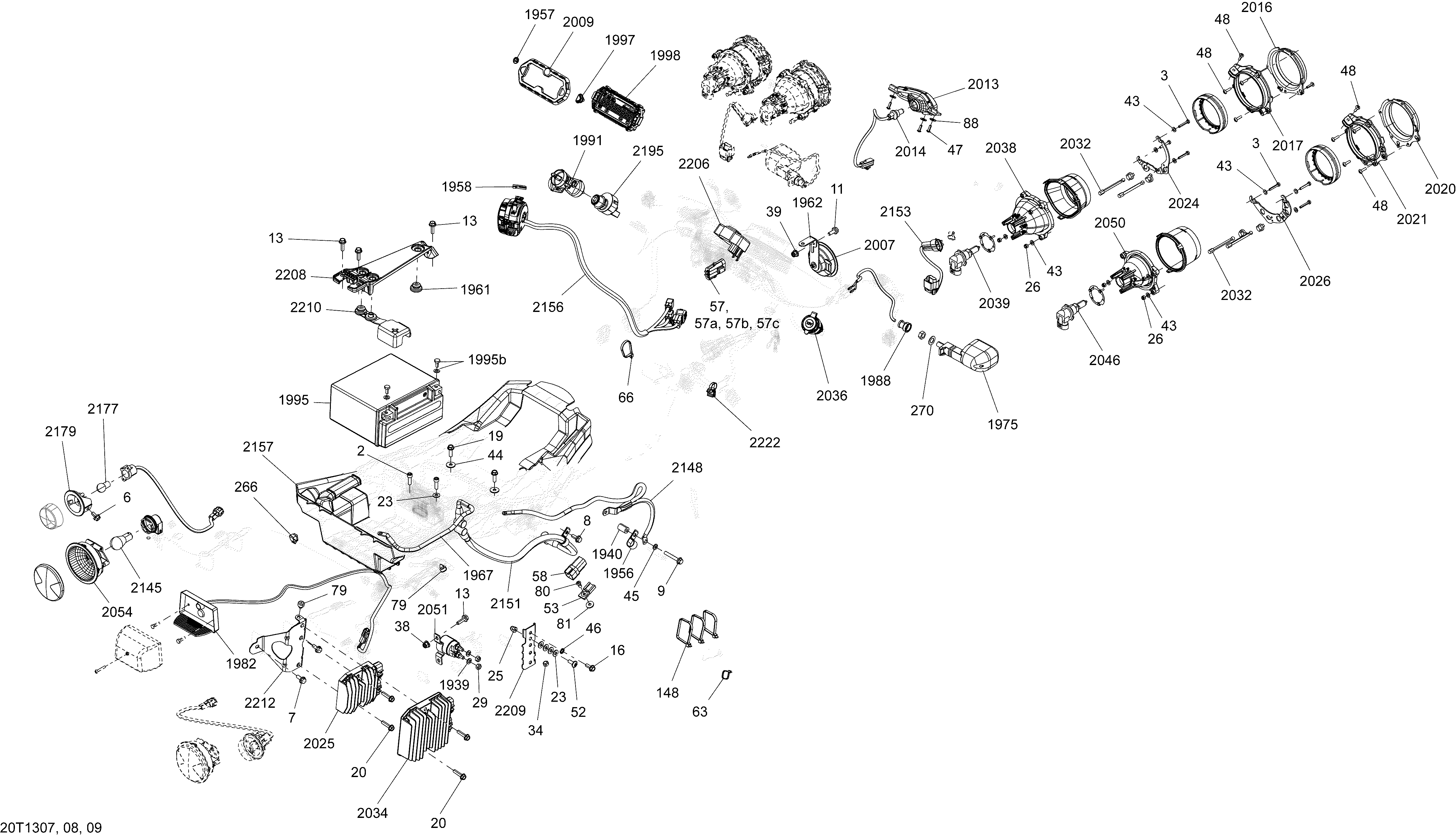

10- Electrical System для BRP Renegade STD, XXC, 1000 EFI - 2013
-
№АртикулНазвание
-
2205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
3207142544 Hex. Screw M4 X 25. RENEGADEHex. Screw M4 X 25. RENEGADE
-
6207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. RENEGADE EuropeHex. Flanged Screw M6 X 12, Scotch Grip. RENEGADE Europe
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. RENEGADEHex. Flanged Screw M6 X 16, Scotch Grip. RENEGADE
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. 1000Hex. Flanged Screw M6 X 16, Scotch Grip. 1000
-
11207661644 Hex. Flanged Screw M6 X 16. RENEGADE EuropeHex. Flanged Screw M6 X 16. RENEGADE Europe
-
13207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
19210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
20210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
23224061121 Flat WasherFlat Washer
-
25232361493 Domed Nut M6Domed Nut M6
-
26232541414 Elastic Stop Nut M4. RENEGADEElastic Stop Nut M4. RENEGADE
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
39233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
43234051410 Flat Washer M5. RENEGADEFlat Washer M5. RENEGADE
-
44234062670 Flat WasherFlat Washer
-
46234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
47241641040 Phillips Screw K40 X 10. RENEGADE EuropePhillips Screw K40 X 10. RENEGADE Europe
-
48250000084 Phillips Screw K40 X 16. RENEGADEPhillips Screw K40 X 16. RENEGADE
-
52250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
53270000141 ClipClip
-
57710000917 Connector Ass'y. RENEGADEConnector Ass'y. RENEGADE
-
57a278000281 Female Terminal Housing, 3 Circuits. RENEGADEFemale Terminal Housing, 3 Circuits. RENEGADE
-
57b278000216 Wire Seal. RENEGADEWire Seal. RENEGADE
-
57c710000992 Clip. RENEGADEClip. RENEGADE
-
58710003006 HousingHousing
-
63293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
66414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
79293830005 Rubber BumperRubber Bumper
-
80390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
81391301600 WasherWasher
-
88391301700 Washer. RENEGADE EuropeWasher. RENEGADE Europe
-
148293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
266414227300 ClipClip
-
270503175800 Washer. RENEGADE EuropeWasher. RENEGADE Europe
-
1939234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1956518321570 Open ClampOpen Clamp
-
1957704901270 BRP Logo, 13 mm. RENEGADEBRP Logo, 13 mm. RENEGADE
-
1958704901835 DPS Label. XXC Except EuropeDPS Label. XXC Except Europe
-
1961705003666 Rubber GrommetRubber Grommet
-
1962709200284 Support. RENEGADE EuropeSupport. RENEGADE Europe
-
1967710001749 Positive Cable. RENEGADEPositive Cable. RENEGADE
-
1975710000547 Flasher. RENEGADE EuropeFlasher. RENEGADE Europe
-
1982710002721 Licence Light. RENEGADE EuropeLicence Light. RENEGADE Europe
-
1988710001826 Cap Guard. RENEGADE EuropeCap Guard. RENEGADE Europe
-
1991710000817 Black-Electronic Key. Except EuropeBlack-Electronic Key. Except Europe
-
1991710000817 Black-Electronic Key. EuropeBlack-Electronic Key. Europe
-
1995410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
1995b295500849 Battery Fastener Kit. North AmericaBattery Fastener Kit. North America
-
1997710001473 Button. RENEGADEButton. RENEGADE
-
1998710003288 Calibrated Speedometer. RENEGADECalibrated Speedometer. RENEGADE
-
2007710000983 Horn. RENEGADE EuropeHorn. RENEGADE Europe
-
2009710001183 Trim Ring Ass'y. RENEGADETrim Ring Ass'y. RENEGADE
-
2013710001042 Day Light. RENEGADE EuropeDay Light. RENEGADE Europe
-
2014710001037 LH Low Light Support. RENEGADELH Low Light Support. RENEGADE
-
2016710001081 RH Low Front Housing. RENEGADERH Low Front Housing. RENEGADE
-
2016710001083 LH Low Front Housing. RENEGADELH Low Front Housing. RENEGADE
-
2017710001082 RH Low Rear Housing. RENEGADERH Low Rear Housing. RENEGADE
-
2017710001084 LH Low Rear Housing. RENEGADELH Low Rear Housing. RENEGADE
-
2020710001085 RH High Front Housing. RENEGADERH High Front Housing. RENEGADE
-
2020710001087 LH High Front Housing. RENEGADELH High Front Housing. RENEGADE
-
2021710001086 RH High Rear Housing. RENEGADERH High Rear Housing. RENEGADE
-
2021710001088 LH High Rear Housing. RENEGADELH High Rear Housing. RENEGADE
-
2024710001094 RH Low Light Support. RENEGADERH Low Light Support. RENEGADE
-
2025710001103 Voltage Regulator. STD Except EuropeVoltage Regulator. STD Except Europe
-
2025710001191 Voltage Regulator. EuropeVoltage Regulator. Europe
-
2026710001115 RH High Light Support. RENEGADERH High Light Support. RENEGADE
-
2026710001036 LH High Light Support. RENEGADELH High Light Support. RENEGADE
-
2032710001147 Setting Screw. RENEGADESetting Screw. RENEGADE
-
2034710001191 Voltage Regulator. XXC Except EuropeVoltage Regulator. XXC Except Europe
-
2036710001248 Outlet DC. RENEGADEOutlet DC. RENEGADE
-
2038710002524 Low Beam Ass'y. RENEGADELow Beam Ass'y. RENEGADE
-
2039415129249 Halogen Bulb. RENEGADEHalogen Bulb. RENEGADE
-
2046415129249 Halogen Bulb. RENEGADEHalogen Bulb. RENEGADE
-
2050710002525 High Beam Ass'y. RENEGADEHigh Beam Ass'y. RENEGADE
-
2051710001364 Starter RelayStarter Relay
-
2054710001645 Tail Light. RENEGADETail Light. RENEGADE
-
2145520000758 Bulb. RENEGADEBulb. RENEGADE
-
2148710001747 Ground Cable Ass'yGround Cable Ass'y
-
2151710001750 Positive CablePositive Cable
-
2153710002804 Harness Ass'y. EuropeHarness Ass'y. Europe
-
2153710001757 Harness Ass'yHarness Ass'y
-
2156710003037 Multi-Function Handle. EuropeMulti-Function Handle. Europe
-
2156710003062 Multi-Function Handle. XXC Except EuropeMulti-Function Handle. XXC Except Europe
-
2156710003063 Multi-Fonction Handle. STD Except EuropeMulti-Fonction Handle. STD Except Europe
-
2157710003325 Battery SupportBattery Support
-
2179710002964 Flasher. RENEGADE EuropeFlasher. RENEGADE Europe
-
2195710002327 Ignition Switch. RENEGADEIgnition Switch. RENEGADE
-
2206710003239 Flasher Unit. EuropeFlasher Unit. Europe
-
2208710002404 Fixation PlateFixation Plate
-
2209710002567 BracketBracket
-
2210710002569 CapCap
-
2212710002587 Rectifier SupportRectifier Support
-
2222710002896 Tie-Rap ClipTie-Rap Clip
