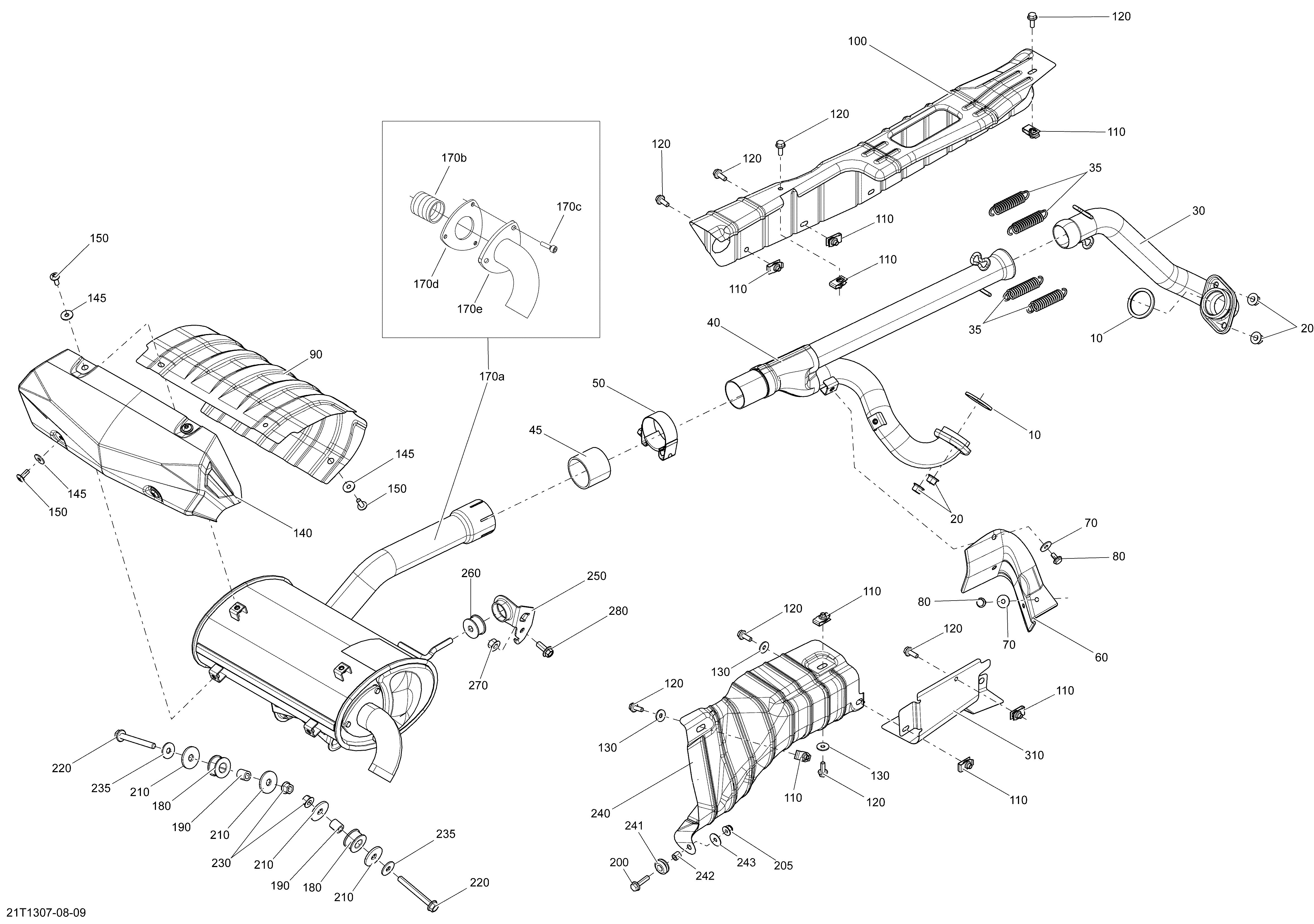

01- Exhaust System для BRP Renegade STD, XXC, 1000 EFI - 2013
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707600627 Front Head PipeFront Head Pipe
-
35415107100 SpringSpring
-
40707601088 Rear Head PipeRear Head Pipe
-
45707600955 Pipe GasketPipe Gasket
-
50293650177 Norma Gear ClampNorma Gear Clamp
-
60707600932 Pipe ProtectorPipe Protector
-
70391302000 Flat WasherFlat Washer
-
80250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
90707600737 Heat DeflectorHeat Deflector
-
100707601045 Heat ShieldHeat Shield
-
110250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
120207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
130234062410 Flat Washer 6 mmFlat Washer 6 mm
-
140707600738 Heat DeflectorHeat Deflector
-
145234062670 Flat WasherFlat Washer
-
150250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
170a707600748 Muffler. Includes 170a to 170eMuffler. Includes 170a to 170e
-
170a707600749 Muffler. Europe, Includes 170a to 170eMuffler. Europe, Includes 170a to 170e
-
170b715900089 Spark ArrestorSpark Arrestor
-
170c205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
170d715900149 GasketGasket
-
170e715900144 Muffler End PieceMuffler End Piece
-
180707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
190293900106 BushingBushing
-
200207662534 Hex. Flanged ScrewHex. Flanged Screw
-
205233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
210503032900 WasherWasher
-
220207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
230233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
235234082410 Flat Washer 8 mmFlat Washer 8 mm
-
240707601256 Heat DeflectorHeat Deflector
-
241293720053 GrommetGrommet
-
242293900105 BushingBushing
-
243224060201 Flat WasherFlat Washer
-
250707600933 SupportSupport
-
260707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
270233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
280207682034 Hex. Flanged ScrewHex. Flanged Screw
-
310707600983 Heat DeflectorHeat Deflector
