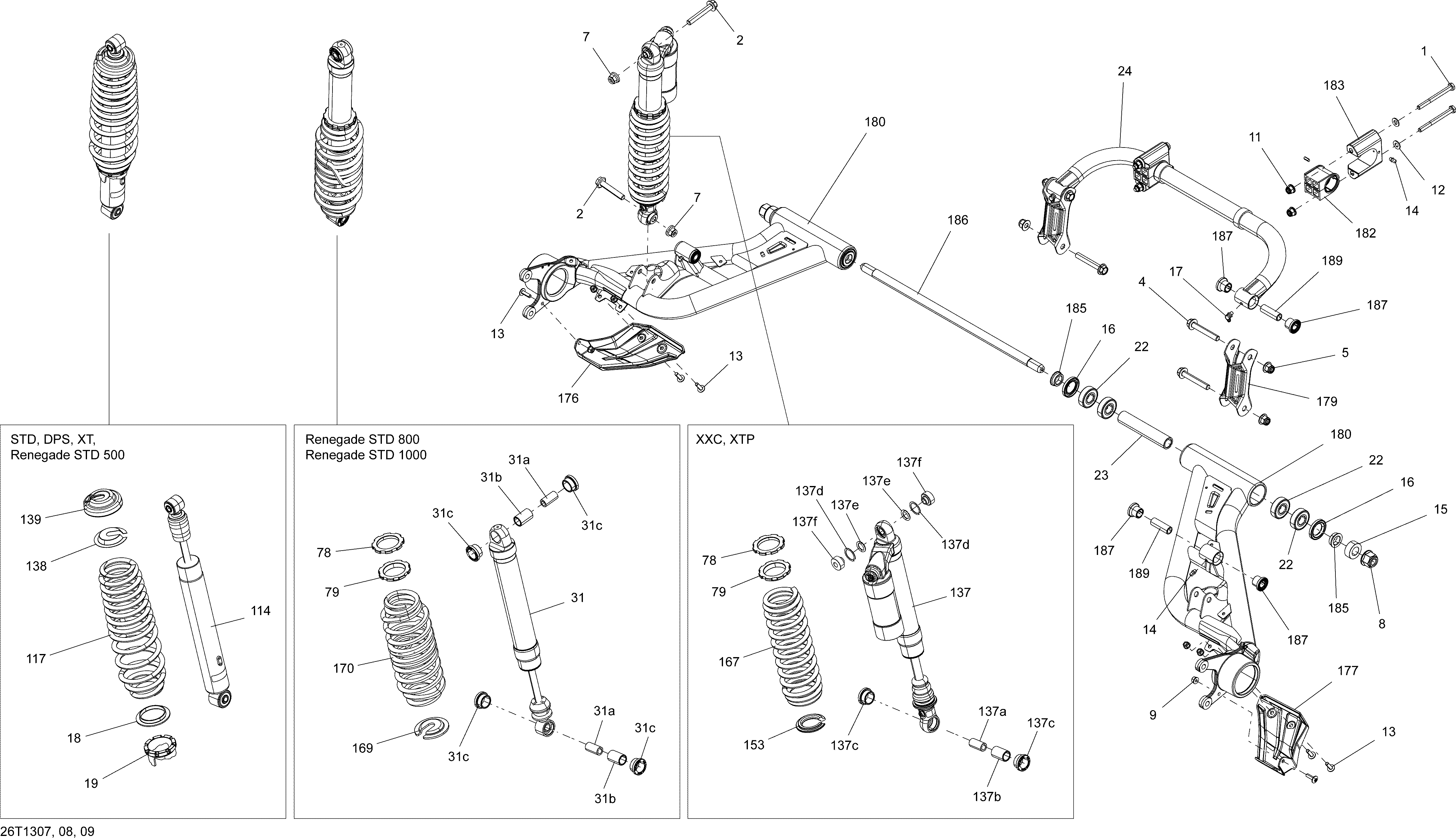

08- Rear Suspension для BRP Renegade STD, XXC, 1000 EFI - 2013
-
№АртикулНазвание
-
1207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
2207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
4207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
5233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
7233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
11233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12234081430 Flat Washer M8Flat Washer M8
-
13250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14250000315 Grease FittingGrease Fitting
-
15250200112 Flat Washer M17Flat Washer M17
-
16293200132 SealSeal
-
17293550056 Grease Fitting 90°Grease Fitting 90°
-
22706000826 Ball BearingBall Bearing
-
23706000828 SpacerSpacer
-
24706000988 SwaybarSwaybar
-
31706000864 Rear Shock. STD 1000Rear Shock. STD 1000
-
31a706201584 Bushing. STD 1000Bushing. STD 1000
-
31b706201585 Bushing Sleeve. STD 1000Bushing Sleeve. STD 1000
-
31c706201586 Bushing Sleeve. STD 1000Bushing Sleeve. STD 1000
-
137706000868 Rear Shock. XXCRear Shock. XXC
-
137a715500361 Interior Bushing. XXCInterior Bushing. XXC
-
167706000950 Yellow Spring. XXCYellow Spring. XXC
-
170706000955 Yellow Spring. STD 1000Yellow Spring. STD 1000
-
176706001009 LH ProtectorLH Protector
-
177706001010 RH ProtectorRH Protector
-
179706001020 Swaybar LinkageSwaybar Linkage
-
180706000722 LH Swing Arm, Black. STDLH Swing Arm, Black. STD
-
180706001369 LH Swing Arm, Yellow. XXCLH Swing Arm, Yellow. XXC
-
180706000723 RH Swing Arm, Black. STDRH Swing Arm, Black. STD
-
180706001370 RH Swing Arm, Yellow. XXCRH Swing Arm, Yellow. XXC
-
182706001098 CushionCushion
-
183706001099 Bushing HolderBushing Holder
-
185706001282 SpacerSpacer
-
186706001364 Axial Pivot M16Axial Pivot M16
-
187703500875 Bushing Kit. Includes 189Bushing Kit. Includes 189
-
189703500875 Bushing Kit. Includes 187Bushing Kit. Includes 187
