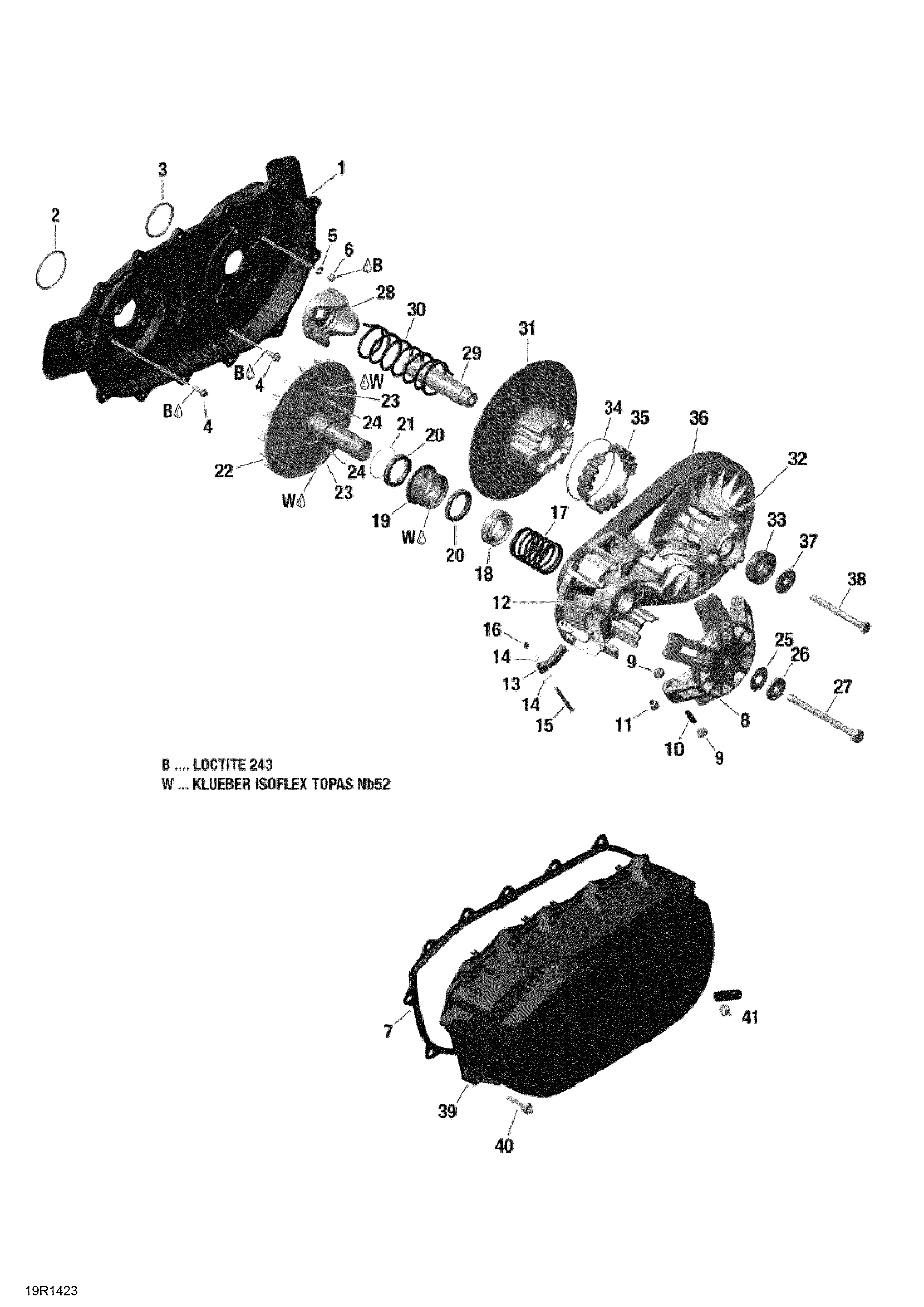

05- Transmission _19R1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1420611408 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5420244211 Washer 6,4 DIN 134Washer 6,4 DIN 134
-
6420842040 Lock Nut M6Lock Nut M6
-
7420430126 GasketGasket
-
8420280522 Governor Cup Ass'y. Includes 8-11Governor Cup Ass'y. Includes 8-11
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11417223387 RollerRoller
-
12420280467 Outher HaftOuther Haft
-
13420248609 Lever Set 1010 6x6. Includes 13-16Lever Set 1010 6x6. Includes 13-16
-
17420238610 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
18420627577 Spring SeatSpring Seat
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
20420632377 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25420627920 Thrust WasherThrust Washer
-
26420627765 Spring WasherSpring Washer
-
27420641859 Hex. Screw M12 X 140Hex. Screw M12 X 140
-
28420280472 CamCam
-
29420220914 Driven Pulley ShaftDriven Pulley Shaft
-
30420238177 Compression SpringCompression Spring
-
31420280238 Inner Half Ass'yInner Half Ass'y
-
32420280178 Outer Half Pulley Ass'y. Includes 32-35Outer Half Pulley Ass'y. Includes 32-35
-
33420932421 Ball BearingBall Bearing
-
34420245910 Retaining RingRetaining Ring
-
35420660124 Torque GearTorque Gear
-
36420280360 V-BeltV-Belt
-
37420627590 Thrust WasherThrust Washer
-
38420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
39420611395 Variator CoverVariator Cover
-
40420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
41707001179 Drain Plug KitDrain Plug Kit
