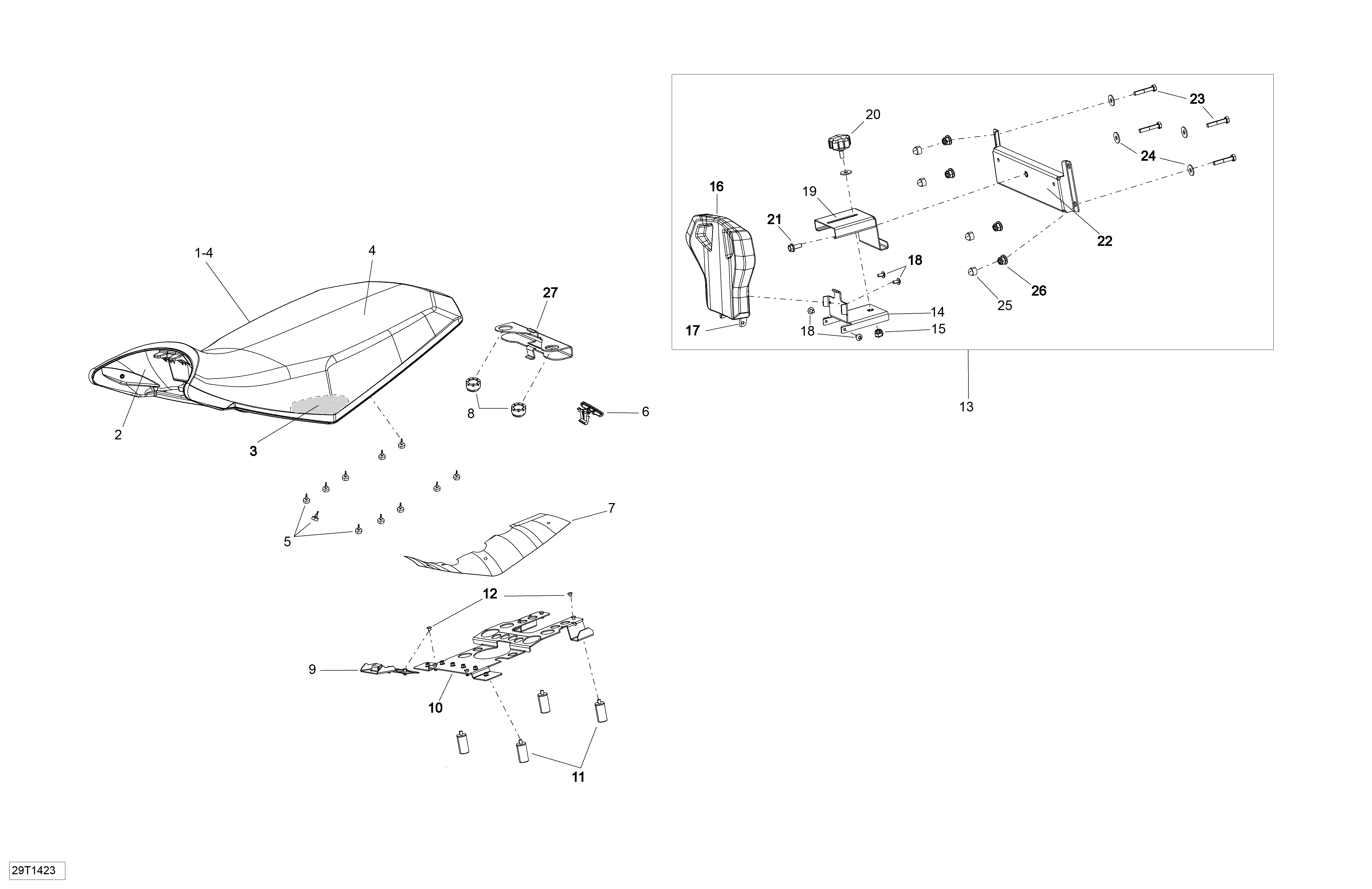

09- Seat _29T1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1708001501 Seat Ass'ySeat Ass'y
-
1605156590 Seat Ass'y G2 T3. Model-T3Seat Ass'y G2 T3. Model-T3
-
2708001118 Seat BaseSeat Base
-
3708000723 Foam SeatFoam Seat
-
4708000724 Seat CoverSeat Cover
-
5708000759 Rubber StopperRubber Stopper
-
6708000909 LatchLatch
-
7705005761 Heat ShieldHeat Shield
-
8708000760 Bumper RubberBumper Rubber
-
9605456520 Front Bottom Support. Model-T3Front Bottom Support. Model-T3
-
10605356519 Middle Bottom Support. Model-T3Middle Bottom Support. Model-T3
-
11605456546 Rubber Damper. Model-T3Rubber Damper. Model-T3
-
12293150067 Rivet. Model-T3Rivet. Model-T3
-
13708301345 Backrest Ass'y. Model-T3Backrest Ass'y. Model-T3
-
14705204093 Angle Support. Model-T3Angle Support. Model-T3
-
15250100065 Clinching Nut Hexert M8. Model-T3Clinching Nut Hexert M8. Model-T3
-
16708001751 Backrest Ass'y T3. Model-T3Backrest Ass'y T3. Model-T3
-
17605356509 Painted Backrest Plate Support. Model-T3Painted Backrest Plate Support. Model-T3
-
18250000675 Torx Truss Screw M6 x 12. Model-T3Torx Truss Screw M6 x 12. Model-T3
-
19708001607 Backrest Fixing Body Painted. Model-T3Backrest Fixing Body Painted. Model-T3
-
20510003533 Handle M8 X 35. Model-T3Handle M8 X 35. Model-T3
-
21207682046 Hex. Flanged Screw M8 X 20. Model-T3Hex. Flanged Screw M8 X 20. Model-T3
-
22708001613 Horizontal Support. Model-T3Horizontal Support. Model-T3
-
23207084544 Hex. Screw M8 X 45. Model-T3Hex. Screw M8 X 45. Model-T3
-
24234082670 Flat Washer DIN.9021B A2 BLACK OXIDE. Model-T3Flat Washer DIN.9021B A2 BLACK OXIDE. Model-T3
-
2528056 Cover. Model-T3Cover. Model-T3
-
26232581414 Hex. Elastic Stop Nut M8. Model-T3Hex. Elastic Stop Nut M8. Model-T3
-
27705204016 Rear Seat Raiser. Model-T3Rear Seat Raiser. Model-T3
