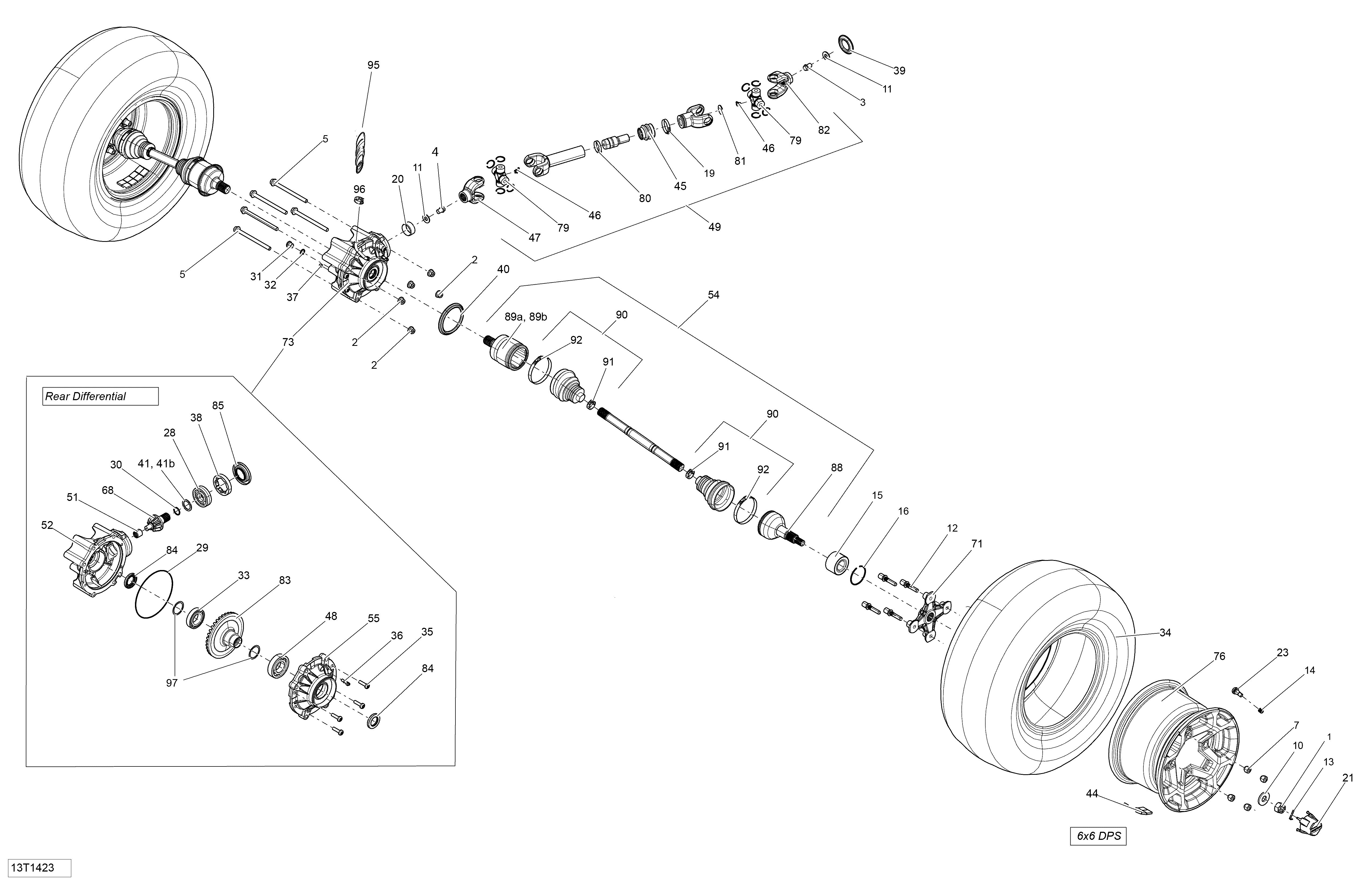

08- Drive System, Rear _13T1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
4250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
5250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
7250100100 Black Wheel Nut M10 X 1.25. XTBlack Wheel Nut M10 X 1.25. XT
-
10250200049 Spring WasherSpring Washer
-
11250200102 Flat Washer M12Flat Washer M12
-
12250300048 Wheel StudWheel Stud
-
13250400036 Cotter PinCotter Pin
-
14293000110 Valve CapValve Cap
-
15293350040 Cone BearingCone Bearing
-
16293370019 CirclipCirclip
-
19293650138 Oetiker Gear ClampOetiker Gear Clamp
-
20705400036 Wear RingWear Ring
-
21705400928 Wheel CapWheel Cap
-
23705400193 Rim Valve With CapRim Valve With Cap
-
28705500260 Ball BearingBall Bearing
-
29705500265 SealSeal
-
30705500267 O-RingO-Ring
-
31705500504 Fill Level PlugFill Level Plug
-
32705500506 Copper WasherCopper Washer
-
33705500749 Ball BearingBall Bearing
-
34705501769 Rear TireRear Tire
-
35705500892 ScrewScrew
-
36705500893 Vent ValveVent Valve
-
37705500894 Drain PlugDrain Plug
-
38705500987 NutNut
-
39705501123 ProtectorProtector
-
40705501124 Wear RingWear Ring
-
41705501162 Pinion Gear ShimPinion Gear Shim
-
41b703500049 Pinion Shim KitPinion Shim Kit
-
44705501385 1/2 OZ Weight1/2 OZ Weight
-
45715900118 Rubber BootRubber Boot
-
46715900184 Grease FittingGrease Fitting
-
47715900101 Fixe YokeFixe Yoke
-
48705501389 Ball BearingBall Bearing
-
49705501407 Rear Propeller Shaft Ass'yRear Propeller Shaft Ass'y
-
51705501408 Needle BearingNeedle Bearing
-
52705501420 Pinion Rear CoverPinion Rear Cover
-
54705501486 RH Homocinetic Joint. Middle DifferentialRH Homocinetic Joint. Middle Differential
-
54705501485 LH Homocinetic Joint. Middle DifferentialLH Homocinetic Joint. Middle Differential
-
54705501486 LH Homocinetic Joint. Rear DifferentialLH Homocinetic Joint. Rear Differential
-
54705501485 RH Homocinetic Joint. Rear DifferentialRH Homocinetic Joint. Rear Differential
-
55705501507 Rear Differential CoverRear Differential Cover
-
68705501570 10 Teeth Pinion10 Teeth Pinion
-
71705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
73705501916 Rear Differential Ass'yRear Differential Ass'y
-
76705501856 Black Rear RimBlack Rear Rim
-
79715500371 Universal JointUniversal Joint
-
80509000045 Oetiker Gear ClampOetiker Gear Clamp
-
81715900187 CoverCover
-
82715900129 Fixed JointFixed Joint
-
83705501403 36 Teeth Pinion36 Teeth Pinion
-
84705501996 Oil SealOil Seal
-
85705401481 Oil SealOil Seal
-
88705501776 CV JointCV Joint
-
89a705501780 Plunging JointPlunging Joint
-
89b705501781 CirclipCirclip
-
90705501777 Rubber Boot KitRubber Boot Kit
-
91715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
92715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
95705400352 Rubber BellowRubber Bellow
-
96293650042 Oetiker ClampOetiker Clamp
-
97703500548 Differential Shim KitDifferential Shim Kit
