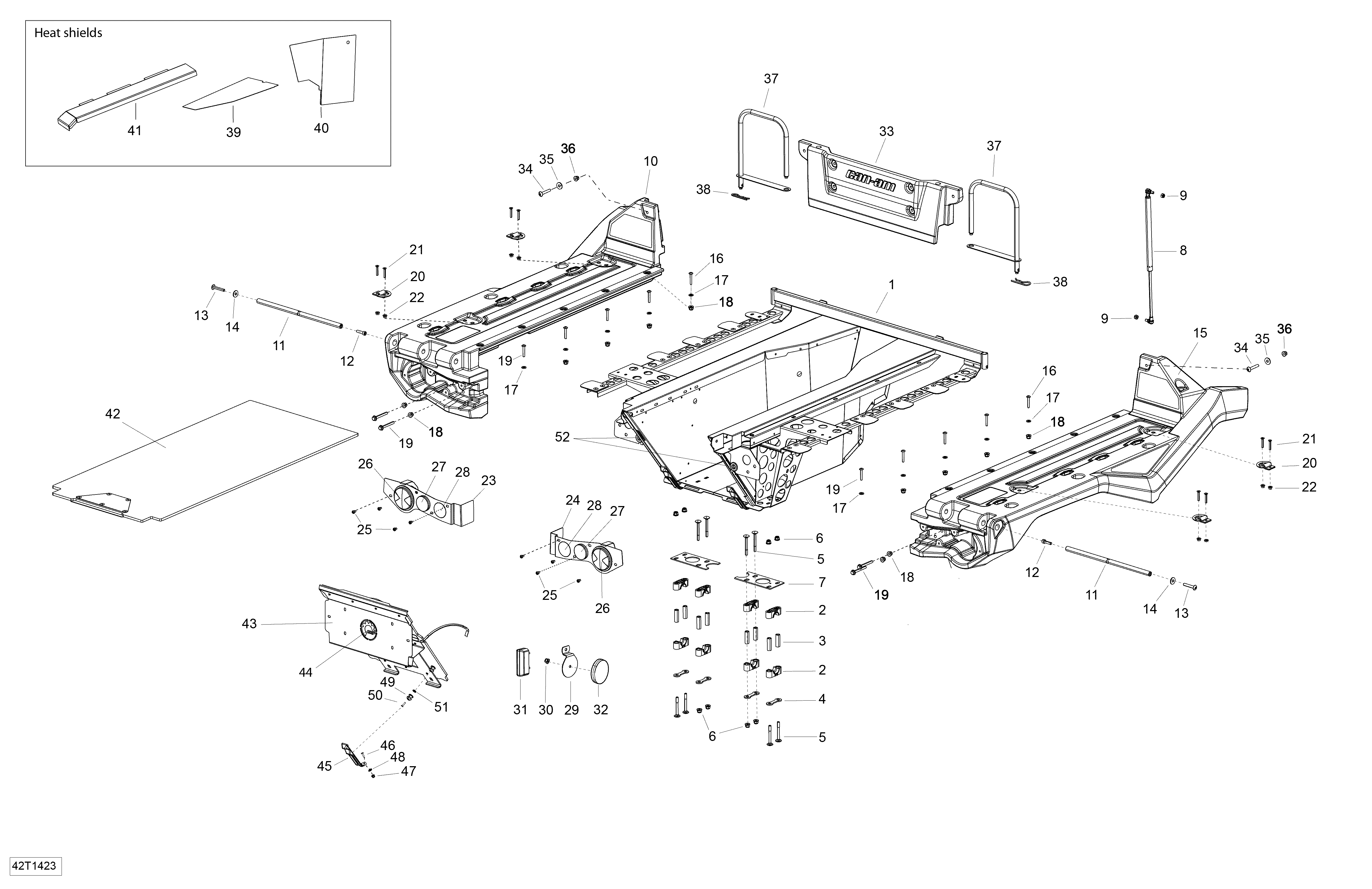

09- Rear Cargo _42T1423 для BRP Outlander 6x6 (International & T3) - 2014
-
№АртикулНазвание
-
1708301188 Metal Platform Ass'yMetal Platform Ass'y
-
2506150400 Housing HalfHousing Half
-
3506150500 Housing BushingHousing Bushing
-
4506150600 Stopper PlateStopper Plate
-
5207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7705203836 Cargo Box Hinges Reinforcement PlateCargo Box Hinges Reinforcement Plate
-
8708301058 Cargo Box Gas ShockCargo Box Gas Shock
-
9232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10708300931 Black Side Platform LH. Model-BlackBlack Side Platform LH. Model-Black
-
10708301473 Yellow Side Platform LH Yellow. Model-YellowYellow Side Platform LH Yellow. Model-Yellow
-
11708300935 Hinge AxisHinge Axis
-
12205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
13250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
14234082670 Flat Washer DIN.9021B A2 BLACK OXIDEFlat Washer DIN.9021B A2 BLACK OXIDE
-
15708300954 Black Side Platform RH. Model-BlackBlack Side Platform RH. Model-Black
-
15708301474 Yellow Side Platform RH. Model-YellowYellow Side Platform RH. Model-Yellow
-
16205484056 Torx Truss M/S M8 X 40Torx Truss M/S M8 X 40
-
17234081410 Flat Washer 8 mmFlat Washer 8 mm
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
20708301189 Retaining HookRetaining Hook
-
21205363586 Socket Screw M6 X 35Socket Screw M6 X 35
-
22233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
23708301274 LH Tail Light Plate. Model-InternationalLH Tail Light Plate. Model-International
-
23605356527 LH Tail Light Plate. Model-T3LH Tail Light Plate. Model-T3
-
24708301275 RH Tail Light Plate. Model-InternationalRH Tail Light Plate. Model-International
-
24605356528 RH Tail Light Plate. Model-T3RH Tail Light Plate. Model-T3
-
25205461060 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
26710001645 Tail LightTail Light
-
27710002047 Flasher. Model-T3Flasher. Model-T3
-
28705002408 Red ReflectorRed Reflector
-
29705204018 Reflector SupportReflector Support
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
31710002055 License LightLicense Light
-
32705002408 Red Reflector. Model-InternationalRed Reflector. Model-International
-
32705002409 Amber Reflector. Model-T3Amber Reflector. Model-T3
-
33708301187 Front Panel ShortFront Panel Short
-
34250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
35234082670 Flat Washer DIN.9021B A2 BLACK OXIDEFlat Washer DIN.9021B A2 BLACK OXIDE
-
36233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
37708300939 Locking Handle WeldLocking Handle Weld
-
3841029 Hair pinHair pin
-
39708301336 Bed Heat Shield On TopBed Heat Shield On Top
-
40708301337 Bed Heat Shield On SideBed Heat Shield On Side
-
41708301338 Side Heat ShieldSide Heat Shield
-
42708300959 Middle DeckMiddle Deck
-
43708300964 Lower TailgateLower Tailgate
-
44219902672 Logo BRP, 68 mmLogo BRP, 68 mm
-
455342952 Hood LatchHood Latch
-
46207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
47232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
4820037 WasherWasher
-
49605449087 Counter RollerCounter Roller
-
50293150212 RivetRivet
-
51517124300 WasherWasher
-
52517303756 GrommetGrommet
-
53708301095 Linq Hole FillerLinq Hole Filler
-
54293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
55293750069 Retainer CableRetainer Cable
-
56708300965 Register Plate SupportRegister Plate Support
-
57708301213 Limiter RailLimiter Rail
-
58293150144 Stavex RivetStavex Rivet
-
59708301261 Limiter HookLimiter Hook
-
60708301262 Filler PlateFiller Plate
-
61708301263 Handle PlateHandle Plate
-
62293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
~515177565 Rear Light HarnessRear Light Harness
-
~515177667 Trailer Harness (Not illustrated)Trailer Harness (Not illustrated)
