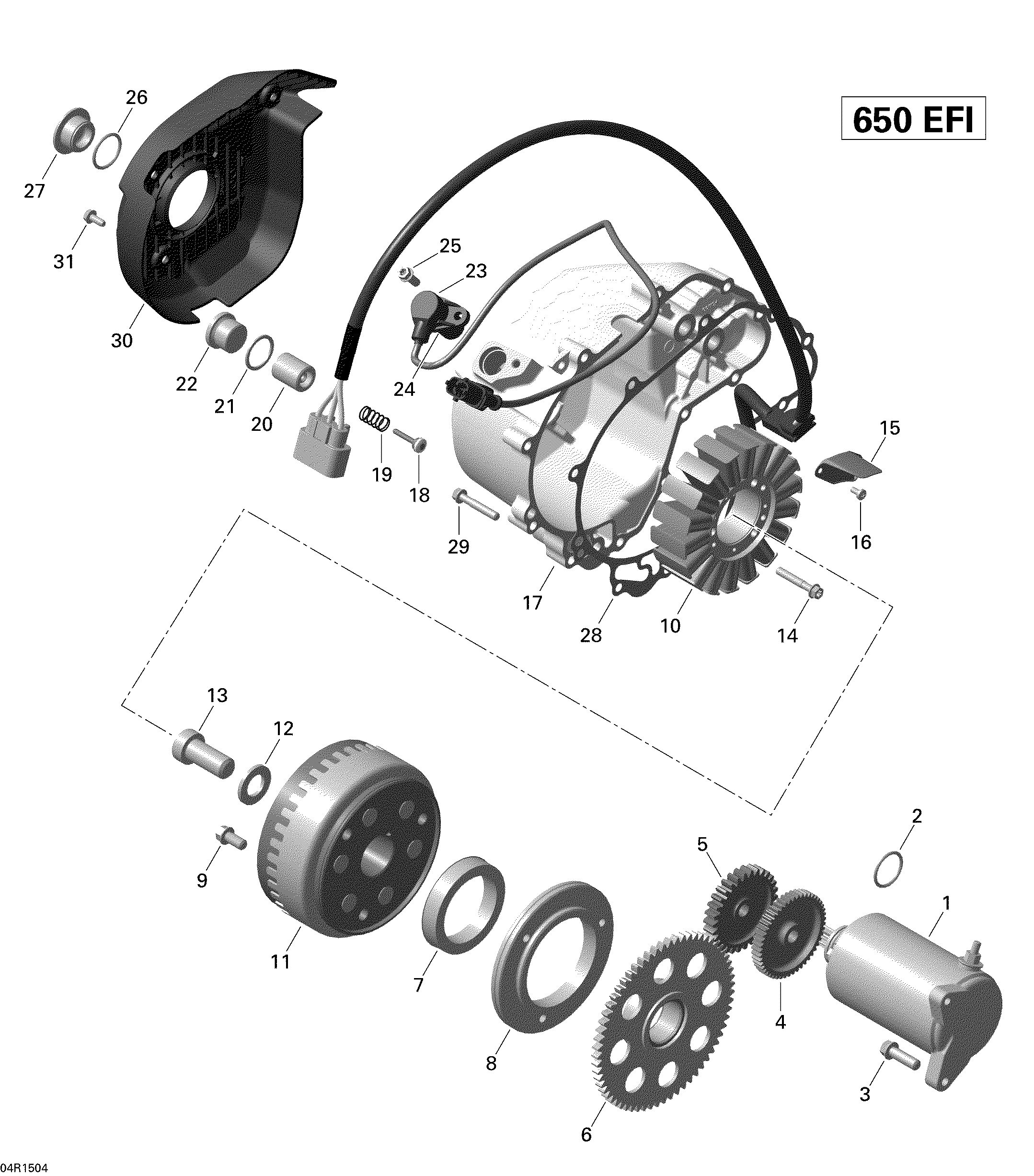

03- Magneto And Electric Starter Outlander_04R1504 для BRP Outlander 650 EFI - 2015
-
№АртикулНазвание
-
1420684562 Starter Ass'y. Includes 1 to 2Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634741 Double GearDouble Gear
-
5420634605 Gear, 30 TeethGear, 30 Teeth
-
6420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
7420659112 Sprag ClutchSprag Clutch
-
8420659261 Sprag Clutch HousingSprag Clutch Housing
-
9420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
10420685920 Stator Plate. Package-STD North AmericaStator Plate. Package-STD North America
-
10420685632 Stator Plate. Package-DPS North AmericaStator Plate. Package-DPS North America
-
10420685632 Stator Plate. Package-DPS InternationalStator Plate. Package-DPS International
-
10420685632 Stator Plate. Package-XT North AmericaStator Plate. Package-XT North America
-
10420685632 Stator Plate. Package-XT InternationalStator Plate. Package-XT International
-
10420685632 Stator Plate. Package-DPS EuropeStator Plate. Package-DPS Europe
-
10420685632 Stator Plate. Package-XTP EuropeStator Plate. Package-XTP Europe
-
11420296906 Flywheel. Package-STD North AmericaFlywheel. Package-STD North America
-
11420685647 Flywheel. Package-DPS North AmericaFlywheel. Package-DPS North America
-
11420685647 Flywheel. Package-DPS InternationalFlywheel. Package-DPS International
-
11420685647 Flywheel. Package-XT North AmericaFlywheel. Package-XT North America
-
11420685647 Flywheel. Package-XT InternationalFlywheel. Package-XT International
-
11420685647 Flywheel. Package-DPS EuropeFlywheel. Package-DPS Europe
-
11420685647 Flywheel. Package-XTP EuropeFlywheel. Package-XTP Europe
-
12420627270 ShimShim
-
13420241545 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420251880 Cable Inner CoverCable Inner Cover
-
16420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
17420611134 CoverCover
-
18420656370 Pressure Relief ValvePressure Relief Valve
-
19420939480 Compression SpringCompression Spring
-
20420256486 Housing ValveHousing Valve
-
21420650465 Gasket RingGasket Ring
-
22420640270 Screw PlugScrew Plug
-
23420966570 Crankshaft Position Sensor Ass'y. Includes 23 to 24Crankshaft Position Sensor Ass'y. Includes 23 to 24
-
24420431580 O-RingO-Ring
-
25420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
26420430782 O-RingO-Ring
-
27420241630 Screw PlugScrew Plug
-
28420651200 GasketGasket
-
29420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
30420201390 CoverCover
-
31420941935 Taptite Screw M5 x 12Taptite Screw M5 x 12
