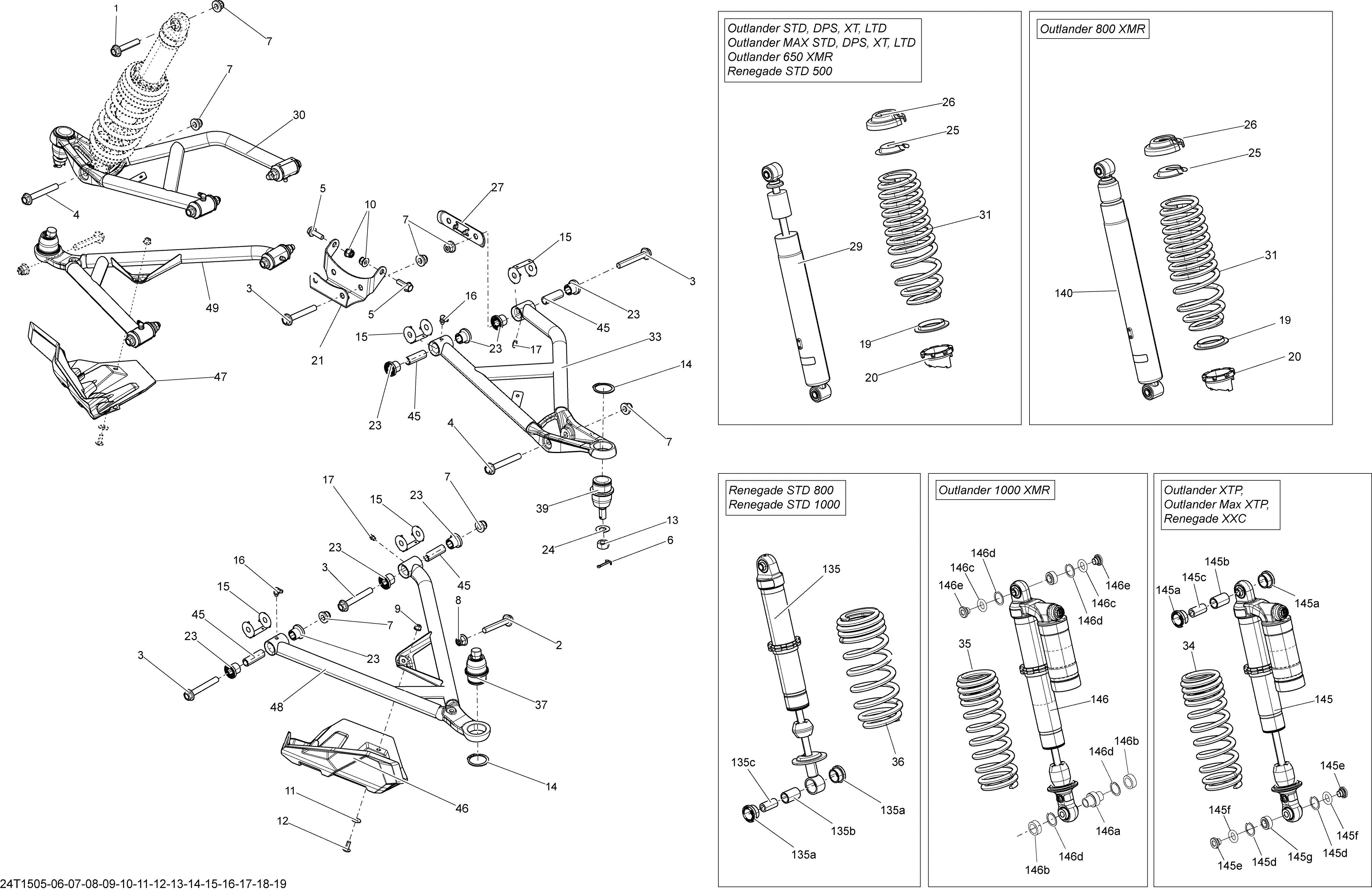

07- Front Suspension _24T1506 для BRP Outlander 650 EFI - 2015

№

Артикул

Название
1

207605546 Flanged Hex. Screw M10 X 55

Flanged Hex. Screw M10 X 55

550 ₽
1

207605546 Flanged Hex. Screw M10 X 55

Flanged Hex. Screw M10 X 55

550 ₽
2

207606044 Hex. Flange Screw M10 X 60

Hex. Flange Screw M10 X 60

1 200 ₽
2

207606044 Hex. Flange Screw M10 X 60

Hex. Flange Screw M10 X 60

1 200 ₽
3

207607046 Hex. Flanged Screw M10 X 70

Hex. Flanged Screw M10 X 70

1 570 ₽
3

207607046 Hex. Flanged Screw M10 X 70

Hex. Flanged Screw M10 X 70

1 570 ₽
4

207607587 Flanged Hex. Screw M10 X 75

Flanged Hex. Screw M10 X 75

700 ₽
5

207682534 Hex. Flanged Screw M8 X 25

Hex. Flanged Screw M8 X 25

740 ₽
6

211400017 Cotter Pin

Cotter Pin

120 ₽
7

233201436 Flanged Elastic Nut M10

Flanged Elastic Nut M10

740 ₽
8

233201434 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

740 ₽
9

233261494 Hex. Elastic Flanged Nut M6

Hex. Elastic Flanged Nut M6

540 ₽
10

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
11

234062670 Flat Washer

Flat Washer

740 ₽
12

250000261 Torx Screw M6 X 16

Torx Screw M6 X 16

280 ₽
13

250100099 Nut M12

Nut M12

740 ₽
14

293370035 Circlip

Circlip

1 380 ₽
15

703500875 Bushing Kit. Includes 23,45

Bushing Kit. Includes 23,45

8 820 ₽
16

293550056 Grease Fitting 90°

Grease Fitting 90°

540 ₽
17

408200700 Grease Fitting

Grease Fitting

1 330 ₽
19

503187500 Spring Guide. Package-STD, DPS

Spring Guide. Package-STD, DPS

3 130 ₽
19

503187500 Spring Guide. Package-XT

Spring Guide. Package-XT

3 130 ₽
20

505070150 Adjustment Cam. Package-STD, DPS

Adjustment Cam. Package-STD, DPS

1 970 ₽
20

505070150 Adjustment Cam. Package-XT

Adjustment Cam. Package-XT

1 970 ₽
21

705203247 Upper Front Holder

Upper Front Holder

3 700 ₽
23

703500875 Bushing Kit. Includes 15,45

Bushing Kit. Includes 15,45

8 820 ₽
24

250200086 Flat Washer

Flat Washer

1 980 ₽
25

706200785 Cap. Package-STD, DPS

Cap. Package-STD, DPS

1 590 ₽
25

706200785 Cap. Package-XT

Cap. Package-XT

1 590 ₽
26

706200881 Spring Stopper. Package-STD, DPS

Spring Stopper. Package-STD, DPS

4 340 ₽
26

706200881 Spring Stopper. Package-XT

Spring Stopper. Package-XT

4 340 ₽
27

706200998 Front Suspension Cross Plate

Front Suspension Cross Plate

470 ₽
29

706201170 Shock Absorber. Package-STD, DPS

Shock Absorber. Package-STD, DPS

64 650 ₽
29

706201170 Shock Absorber. Package-XT

Shock Absorber. Package-XT

64 650 ₽
30

706201797 Black RH Upper Arm

Black RH Upper Arm

56 840 ₽
31

706201171 Black Spring. Package-STD, DPS

Black Spring. Package-STD, DPS

10 400 ₽
31

706201173 Black Spring. Package-XT

Black Spring. Package-XT

10 400 ₽
33

706201796 Black LH Upper Arm

Black LH Upper Arm

56 840 ₽
34

706201637 Black Spring. Package-XTP

Black Spring. Package-XTP

9 790 ₽
37

706202045 Ball Joint

Ball Joint

32 830 ₽
39

706202044 Ball Joint

Ball Joint

31 500 ₽
45

703500875 Bushing Kit. Includes 15,23

Bushing Kit. Includes 15,23

8 820 ₽
46

706201829 LH Joint Protector

LH Joint Protector

780 ₽
47

706201830 RH Joint Protector

RH Joint Protector

820 ₽
48

706201874 Black LH Lower Arm

Black LH Lower Arm

13 810 ₽
49

706201875 Black RH Lower Arm

Black RH Lower Arm

13 820 ₽
145

706201812 Shock Absorber. Package-XTP

Shock Absorber. Package-XTP

76 590 ₽
145a

706201648 Bushing. Package-XTP

Bushing. Package-XTP

5 320 ₽
145b

706201585 Bushing Sleeve. Package-XTP

Bushing Sleeve. Package-XTP

12 390 ₽
145c

706201586 Bushing Sleeve. Package-XTP

Bushing Sleeve. Package-XTP

12 390 ₽
145e

715900210 Interior Bushing. Package-XTP

Interior Bushing. Package-XTP

5 320 ₽
145f

715900209 O-Ring Bushing. Package-XTP

O-Ring Bushing. Package-XTP

4 620 ₽
145g

715900251 Spherical Bearing. Package-XTP

Spherical Bearing. Package-XTP

7 200 ₽
