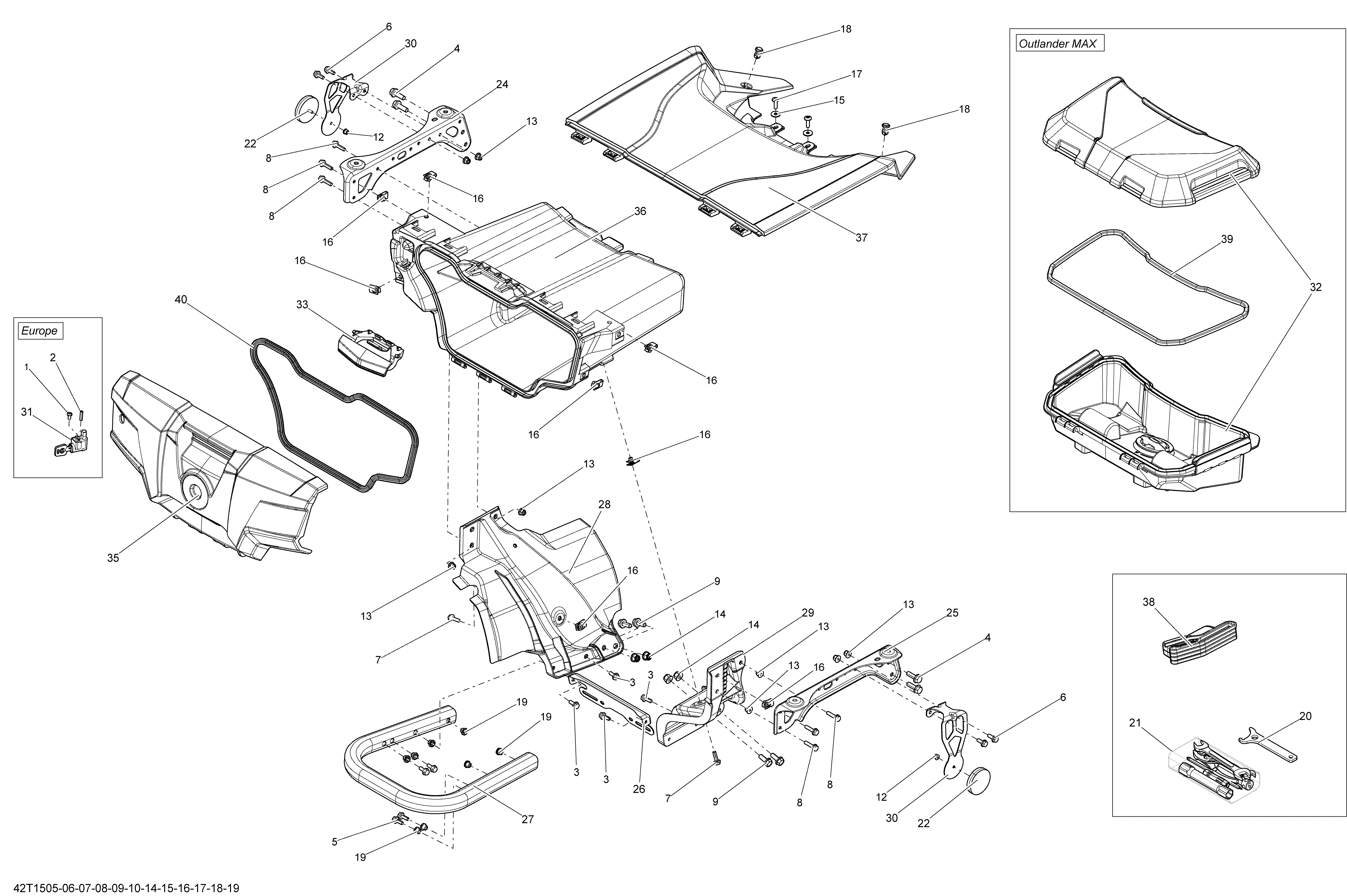

09- Rear Cargo Box _42T1506 для BRP Outlander 650 EFI - 2015
-
№АртикулНазвание
-
1205951046 Socket Head Screw M5 X 10. Model-EuropeSocket Head Screw M5 X 10. Model-Europe
-
2206252044 Socket Set Screw M5 X 20. Model-EuropeSocket Set Screw M5 X 20. Model-Europe
-
3207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207661634 Hex. Flanged Screw M6 X 16. Model-EuropeHex. Flanged Screw M6 X 16. Model-Europe
-
6207661644 Hex. Flanged Screw M6 X 16. Model-North America, InternationalHex. Flanged Screw M6 X 16. Model-North America, International
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
12233251434 Flanged Elastic Nut M5. Model-North America, InternationalFlanged Elastic Nut M5. Model-North America, International
-
13233261414 Hex. Flanged Elastic Nut M6. Model-North America, InternationalHex. Flanged Elastic Nut M6. Model-North America, International
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15234062670 Flat WasherFlat Washer
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
18293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
19293450274 Insert. Model-EuropeInsert. Model-Europe
-
20529000035 Adjustement WrenchAdjustement Wrench
-
21704700148 Tool KitTool Kit
-
22705002408 Red Reflector. Model-North America, InternationalRed Reflector. Model-North America, International
-
24705004563 LH SupportLH Support
-
25705004564 RH SupportRH Support
-
26705004806 Plate SupportPlate Support
-
27715002242 Rear Bumper Ass'y. Model- EuropeRear Bumper Ass'y. Model- Europe
-
27715002241 Rear Bumper Ass'y. Model- InternationalRear Bumper Ass'y. Model- International
-
27715001564 Rear Bumper. Model- North AmericaRear Bumper. Model- North America
-
28705006997 LH Cargo SupportLH Cargo Support
-
29705006998 RH Cargo SupportRH Cargo Support
-
30705202576 Reflector Support. Model-North America, InternationalReflector Support. Model-North America, International
-
31707000666 Lock. Model-EuropeLock. Model-Europe
-
33708200272 HandleHandle
-
35708300511 Rear Panel. Model-EuropeRear Panel. Model-Europe
-
35708300150 Rear Panel. Model-North America, InternationalRear Panel. Model-North America, International
-
36708300674 Rear Storage BoxRear Storage Box
-
37708301212 Rear Storage Box CoverRear Storage Box Cover
-
38710002270 Remote Control. Package-XTRemote Control. Package-XT
-
38710002270 Remote Control. Package-XTPRemote Control. Package-XTP
-
39293250312 Neoprene SealNeoprene Seal
-
40293250275 Neoprene SealNeoprene Seal
