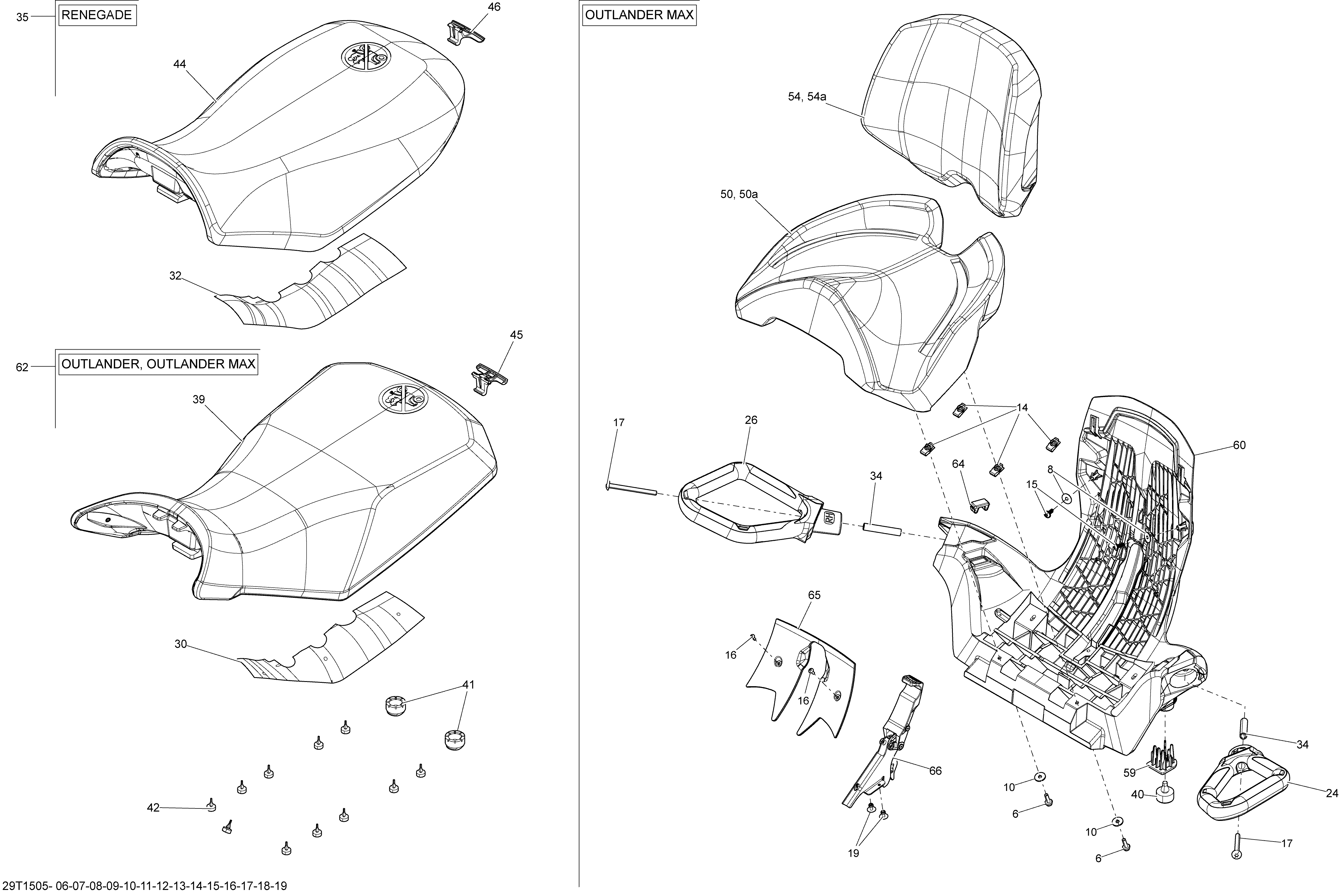

09- Seat _29T1506 для BRP Outlander 650 EFI - 2015
-
№АртикулНазвание
-
30705005761 Heat ShieldHeat Shield
-
39708000724 Seat Cover. Package-DPSSeat Cover. Package-DPS
-
39708000724 Seat Cover. Package-STDSeat Cover. Package-STD
-
39708000724 Seat Cover. Package-XTSeat Cover. Package-XT
-
39708001578 Seat Cover. Package-XTPSeat Cover. Package-XTP
-
42708000759 Rubber Stopper. Package-DPSRubber Stopper. Package-DPS
-
42708000759 Rubber Stopper. Package-STDRubber Stopper. Package-STD
-
42708000759 Rubber Stopper. Package-XTRubber Stopper. Package-XT
-
42708000759 Rubber Stopper. Package-XTPRubber Stopper. Package-XTP
-
45708000909 LatchLatch
-
62708001501 Seat Ass'y. Package-DPSSeat Ass'y. Package-DPS
-
62708001501 Seat Ass'y. Package-STDSeat Ass'y. Package-STD
-
62708001501 Seat Ass'y. Package-XTSeat Ass'y. Package-XT
-
62708001577 Seat Ass'y. Package-XTPSeat Ass'y. Package-XTP
