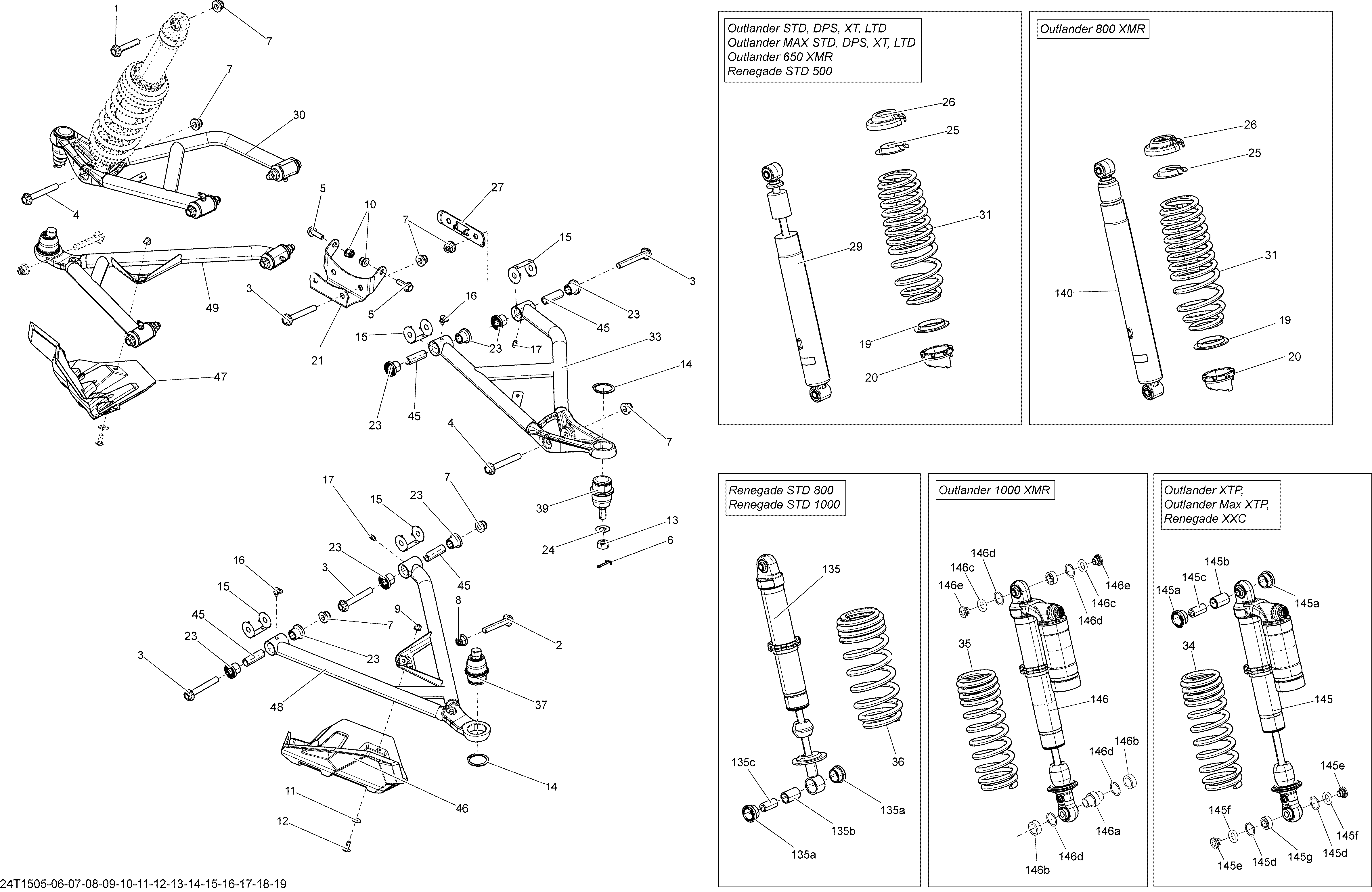

07- Front Suspension _24T1515 для BRP Outlander MAX 650 EFI - 2015
-
№АртикулНазвание
-
1207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
2207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
5207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6211400017 Cotter PinCotter Pin
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat WasherFlat Washer
-
12250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250100099 Nut M12Nut M12
-
14293370035 CirclipCirclip
-
15703500875 Bushing Kit. Includes 23,45Bushing Kit. Includes 23,45
-
16293550056 Grease Fitting 90°Grease Fitting 90°
-
17408200700 Grease FittingGrease Fitting
-
19503187500 Spring Guide. Package-STDSpring Guide. Package-STD
-
19503187500 Spring Guide. Package-DPSSpring Guide. Package-DPS
-
19503187500 Spring Guide. Package-XTSpring Guide. Package-XT
-
20505070150 Adjustment Cam. Package-STDAdjustment Cam. Package-STD
-
20505070150 Adjustment Cam. Package-DPSAdjustment Cam. Package-DPS
-
20505070150 Adjustment Cam. Package-XTAdjustment Cam. Package-XT
-
21705203247 Upper Front HolderUpper Front Holder
-
23703500875 Bushing Kit. Includes 15,45Bushing Kit. Includes 15,45
-
24250200086 Flat WasherFlat Washer
-
25706200785 Cap. Package-STDCap. Package-STD
-
25706200785 Cap. Package-DPSCap. Package-DPS
-
25706200785 Cap. Package-XTCap. Package-XT
-
26706200881 Spring Stopper. Package-STDSpring Stopper. Package-STD
-
26706200881 Spring Stopper. Package-DPSSpring Stopper. Package-DPS
-
26706200881 Spring Stopper. Package-XTSpring Stopper. Package-XT
-
27706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
29706201243 Shock Absorber. Package-STDShock Absorber. Package-STD
-
29706201243 Shock Absorber. Package-DPSShock Absorber. Package-DPS
-
29706201243 Shock Absorber. Package-XTShock Absorber. Package-XT
-
30706201797 Black RH Upper ArmBlack RH Upper Arm
-
31706201251 Black Spring. Package-XTBlack Spring. Package-XT
-
31706201649 Black Spring. Package-STDBlack Spring. Package-STD
-
31706201649 Black Spring. Package-DPSBlack Spring. Package-DPS
-
33706201796 Black LH Upper ArmBlack LH Upper Arm
-
34706201637 Black Spring. Package-XTPBlack Spring. Package-XTP
-
37706202045 Ball JointBall Joint
-
39706202044 Ball JointBall Joint
-
45703500875 Bushing Kit. Includes 15,23Bushing Kit. Includes 15,23
-
48706201874 Black LH Lower ArmBlack LH Lower Arm
-
49706201875 Black RH Lower ArmBlack RH Lower Arm
-
145706201812 Shock Absorber. Package-XTPShock Absorber. Package-XTP
-
145a706201648 Bushing. Package-XTPBushing. Package-XTP
-
145b706201585 Bushing Sleeve. Package-XTPBushing Sleeve. Package-XTP
-
145c706201586 Bushing Sleeve. Package-XTPBushing Sleeve. Package-XTP
-
145e715900210 Interior Bushing. Package-XTPInterior Bushing. Package-XTP
-
145f715900209 O-Ring Bushing. Package-XTPO-Ring Bushing. Package-XTP
-
145g715900251 Spherical Bearing. Package-XTPSpherical Bearing. Package-XTP
