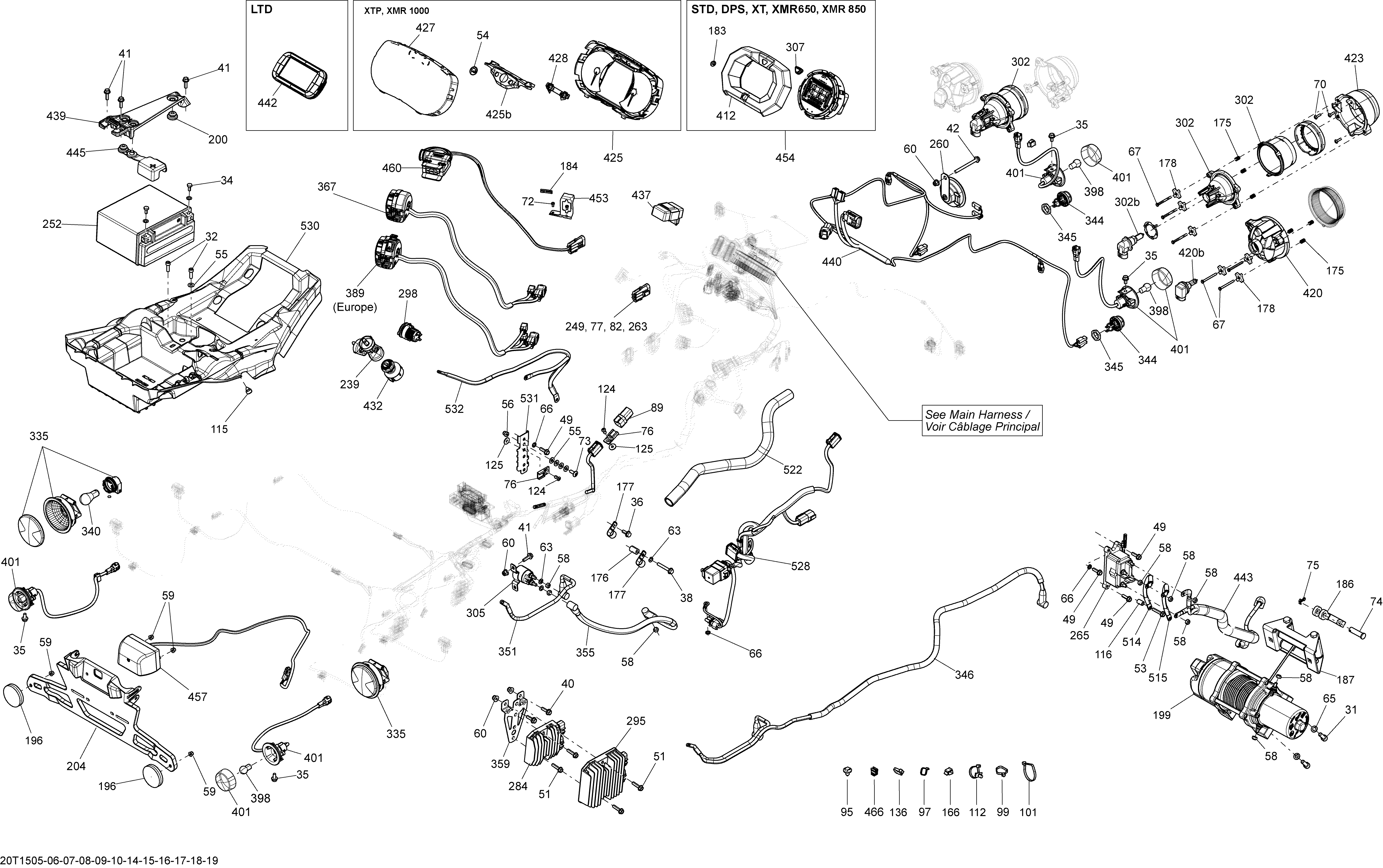

10- Electrical System _20T1515 для BRP Outlander MAX 650 EFI - 2015
-
№АртикулНазвание
-
31205082044 Socket Head Screw M8 X 20. Package-XT, XTPSocket Head Screw M8 X 20. Package-XT, XTP
-
32205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
34250000282 Battery Bolt Kit. Model-North AmericaBattery Bolt Kit. Model-North America
-
35207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. Model-EuropeHex. Flanged Screw M6 X 12, Scotch Grip. Model-Europe
-
38207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
40207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
41207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
42207667044 Hex. Flange Screw M6 X 70. Model-EuropeHex. Flange Screw M6 X 70. Model-Europe
-
49210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
51210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
53210264040 Hex Flanged Screw M6 X 40. Package-XT North America, InternationalHex Flanged Screw M6 X 40. Package-XT North America, International
-
53210264040 Hex Flanged Screw M6 X 40. Package-XTP North America, InternationalHex Flanged Screw M6 X 40. Package-XTP North America, International
-
54704904616 BRP Logo, 20mm. Package-XTPBRP Logo, 20mm. Package-XTP
-
55224061121 Flat WasherFlat Washer
-
56232361493 Domed Nut M6Domed Nut M6
-
58232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
59233251434 Flanged Elastic Nut M5. Model-EuropeFlanged Elastic Nut M5. Model-Europe
-
60233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
65234181401 Lock Washer 8 mm. Package-XT, XTPLock Washer 8 mm. Package-XT, XTP
-
66234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
67250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
70250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
72250000153 Hex. Cap Screw 6-32 X 1/4''. Package-XT, XTPHex. Cap Screw 6-32 X 1/4''. Package-XT, XTP
-
73250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
74250400021 Clevis Pin. Package-XT, XTPClevis Pin. Package-XT, XTP
-
75250400022 Cotter Pin. Package-XT, XTPCotter Pin. Package-XT, XTP
-
76270000141 ClipClip
-
77278000216 Wire Seal. Package-STD, DPSWire Seal. Package-STD, DPS
-
82278000281 Female Terminal Housing, 3 Circuits. Package-STD, DPSFemale Terminal Housing, 3 Circuits. Package-STD, DPS
-
89710003006 HousingHousing
-
95293730040 Mount DartMount Dart
-
97293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
99293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
101293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
115293830005 Rubber BumperRubber Bumper
-
116293900078 Sleeve. Package-XT North America, InternationalSleeve. Package-XT North America, International
-
116293900078 Sleeve. Package-XTP North America, InternationalSleeve. Package-XTP North America, International
-
124390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
125391301600 WasherWasher
-
136414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
166414227300 ClipClip
-
175517168600 SpringSpring
-
176517203200 SpacerSpacer
-
177518321570 Open ClampOpen Clamp
-
178572106600 HandleHandle
-
183704904615 BRP Logo, 13 mm. Package-STD, DPS, XTBRP Logo, 13 mm. Package-STD, DPS, XT
-
184704901835 DPS Label. Package-DPS EuropeDPS Label. Package-DPS Europe
-
184704901835 DPS Label. Package-XT EuropeDPS Label. Package-XT Europe
-
184704901835 DPS Label. Package-XTP EuropeDPS Label. Package-XTP Europe
-
186705002329 Hook. Package-XT, XTPHook. Package-XT, XTP
-
187715000011 Winch Roller. Package-XT, XTPWinch Roller. Package-XT, XTP
-
196705002408 Red Reflector. Model-EuropeRed Reflector. Model-Europe
-
199705008546 Winch. Package-XT, XTPWinch. Package-XT, XTP
-
200705003666 Rubber GrommetRubber Grommet
-
204708300434 Plate Support. Model-EuropePlate Support. Model-Europe
-
239710000817 Black-Electronic Key. Model-EuropeBlack-Electronic Key. Model-Europe
-
239710002183 Grey-Electronic Key. Model-North America, InternationalGrey-Electronic Key. Model-North America, International
-
249710000917 Connector Ass'y. Package-STD, DPSConnector Ass'y. Package-STD, DPS
-
252410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
260710000983 Horn. Model-EuropeHorn. Model-Europe
-
263710000992 ClipClip
-
265710001000 Winch Solenoid. Package-XT, XTPWinch Solenoid. Package-XT, XTP
-
284710001103 Voltage Regulator. Package-STD North America, InternationalVoltage Regulator. Package-STD North America, International
-
295710001191 Voltage RegulatorVoltage Regulator
-
298710001248 Outlet DCOutlet DC
-
302710002525 High Beam Ass'yHigh Beam Ass'y
-
302b415129249 Halogen BulbHalogen Bulb
-
305710001364 Starter RelayStarter Relay
-
307710001473 Button. Package-STD, DPS, XTButton. Package-STD, DPS, XT
-
335710001645 Tail LightTail Light
-
344710001726 Day Light. Model-EuropeDay Light. Model-Europe
-
345710003269 Cap Protector. Model-EuropeCap Protector. Model-Europe
-
346710001748 Battery Positive Cable. Package-XT, XTPBattery Positive Cable. Package-XT, XTP
-
351710001749 Positive Cable. Package-STDPositive Cable. Package-STD
-
355710001750 Positive CablePositive Cable
-
359710001752 Rectifier SupportRectifier Support
-
367710003062 Multi-Function Handle. Model-North America, InternationalMulti-Function Handle. Model-North America, International
-
389710003037 Multi-Function Handle. Model-EuropeMulti-Function Handle. Model-Europe
-
401710002964 Flasher. Model-EuropeFlasher. Model-Europe
-
412710002092 Trim Ring. Package-STD, DPS, XTTrim Ring. Package-STD, DPS, XT
-
420710002191 Low BeamLow Beam
-
420b715900141 Bulb 12V 55WBulb 12V 55W
-
423710002291 RH High Front HousingRH High Front Housing
-
423710002292 LH High Front HousingLH High Front Housing
-
425710003925 Speedometer Ass'y. Package-XTPSpeedometer Ass'y. Package-XTP
-
425b705004366 Cap Support. Package-XTPCap Support. Package-XTP
-
427415129349 Lens. Package-XTPLens. Package-XTP
-
428415129355 Speedometer Button. Package-XTPSpeedometer Button. Package-XTP
-
432710003847 Ignition SwitchIgnition Switch
-
437710003239 Flasher Unit. Model-EuropeFlasher Unit. Model-Europe
-
439710002404 Fixation PlateFixation Plate
-
440710002481 Harness Ass'y. Model-EuropeHarness Ass'y. Model-Europe
-
443710002560 Winch Cables. Package-XT, XTPWinch Cables. Package-XT, XTP
-
445710002569 CapCap
-
453710002631 Winch Interrupter Support. Package-XT, XTPWinch Interrupter Support. Package-XT, XTP
-
454710003923 Speedometer Ass'y. Package-STD, DPS, XTSpeedometer Ass'y. Package-STD, DPS, XT
-
454a415129320 Lens. Package-STD, DPS, XTLens. Package-STD, DPS, XT
-
457710002721 Licence Light. Model-EuropeLicence Light. Model-Europe
-
460710002724 Winch Interrupter. Package-XT, XTPWinch Interrupter. Package-XT, XTP
-
466710002896 Tie-Rap ClipTie-Rap Clip
-
514710003003 Negative Harness. Package-XT, XTPNegative Harness. Package-XT, XTP
-
530710003990 Battery TrayBattery Tray
-
531710004118 Connector BracketConnector Bracket
-
532710004183 Ground CableGround Cable
