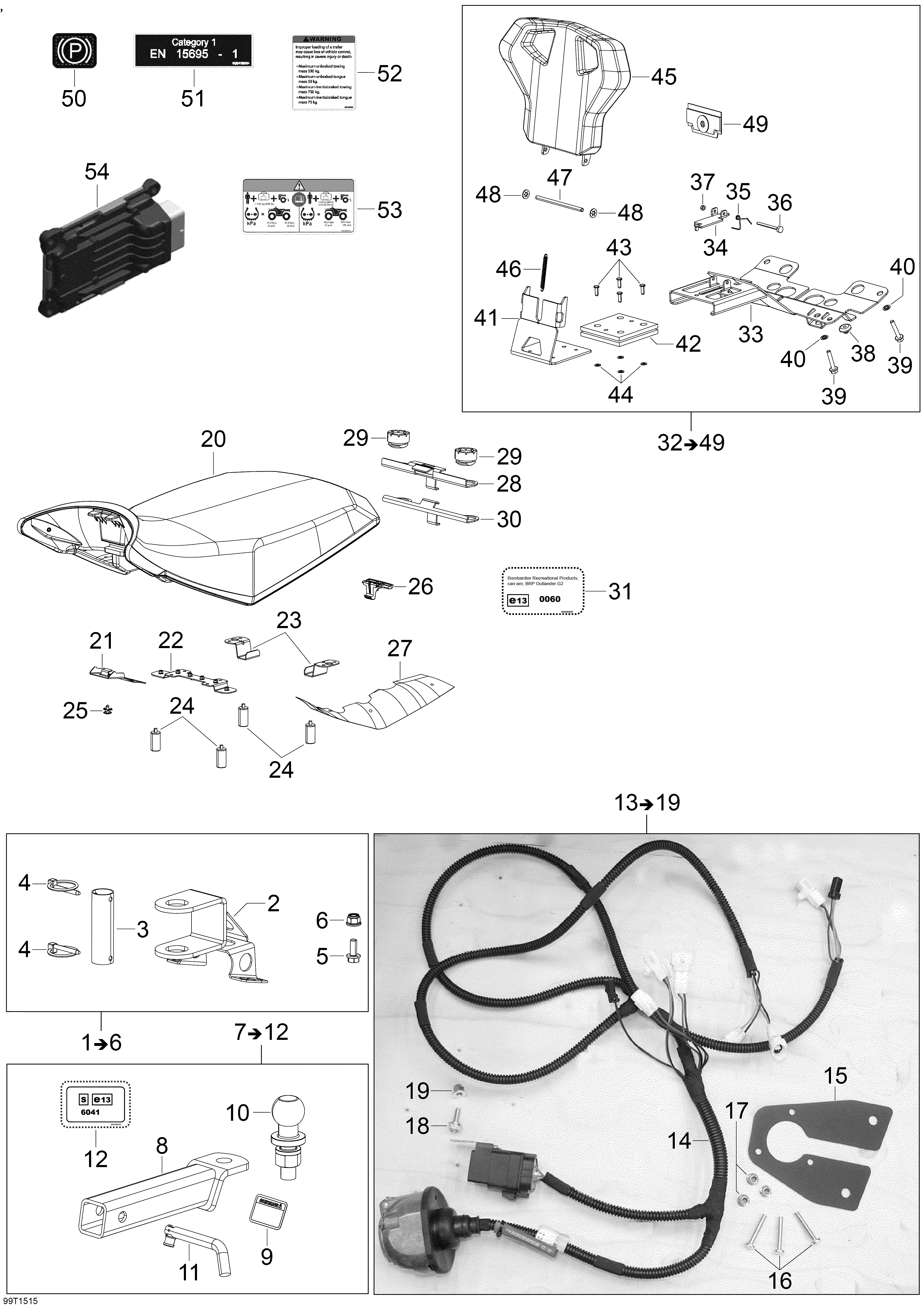

11- T3 Parts _99T1515 для BRP Outlander MAX 650 EFI - 2015
-
№АртикулНазвание
-
2605256497 Front Coupling DeviceFront Coupling Device
-
3605456511 PinPin
-
4605456518 Linch PinLinch Pin
-
5207682044 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
6233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
7605256548 Coupling Ball Ass'y. Includes 7 To 12Coupling Ball Ass'y. Includes 7 To 12
-
11705203479 Hitch PinHitch Pin
-
12605456545 Hitch DecalHitch Decal
-
13860200927 Trailer Plug Ass'y. Includes 13 To 19Trailer Plug Ass'y. Includes 13 To 19
-
15605356523 Plug Support PlatePlug Support Plate
-
16205053588 Screw M5 x 35Screw M5 x 35
-
17233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
18207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
19233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
20605156590 Seat Ass'ySeat Ass'y
-
21605456520 Front Bottom SupportFront Bottom Support
-
22510005986 Middle Bottom SupportMiddle Bottom Support
-
23510005988 Rear Bottom SupportRear Bottom Support
-
24605456546 Rubber DamperRubber Damper
-
25293150067 Tri-Fast RivetTri-Fast Rivet
-
26708000909 LatchLatch
-
27705005761 Heat ShieldHeat Shield
-
28705204621 Seat Rear RaiserSeat Rear Raiser
-
29708000760 Rubber BumperRubber Bumper
-
30705204655 Seat Rear RaiserSeat Rear Raiser
-
31605456593 Seat Category DecalSeat Category Decal
-
33708001850 Passenger Seat BracketPassenger Seat Bracket
-
34605456510 Backrest Lever PlateBackrest Lever Plate
-
35605456536 SpringSpring
-
3640203 Screw M4 x 50Screw M4 x 50
-
3733008 Lock Nut M4Lock Nut M4
-
38605452114 Rubber PlugRubber Plug
-
39207663534 Hex. Flange Screw M6 x 35Hex. Flange Screw M6 x 35
-
40732610072 Push NutPush Nut
-
41605456503 Backrest Hinge PlateBackrest Hinge Plate
-
42605456533 Slider PlateSlider Plate
-
4336005 RivetRivet
-
44234051410 Flat WasherFlat Washer
-
45605256566 BackrestBackrest
-
46605456539 SpringSpring
-
47605456662 Hinge PinHinge Pin
-
4836084 Safety WasherSafety Washer
-
49605356612 Backrest PadBackrest Pad
-
50605356244 P DecalP Decal
-
51605456594 Cabin DecalCabin Decal
-
52605356505 Warning DecalWarning Decal
-
53704903953 Warning LabelWarning Label
-
54420264613 ECM, Engine Control Module 650 T3ECM, Engine Control Module 650 T3
