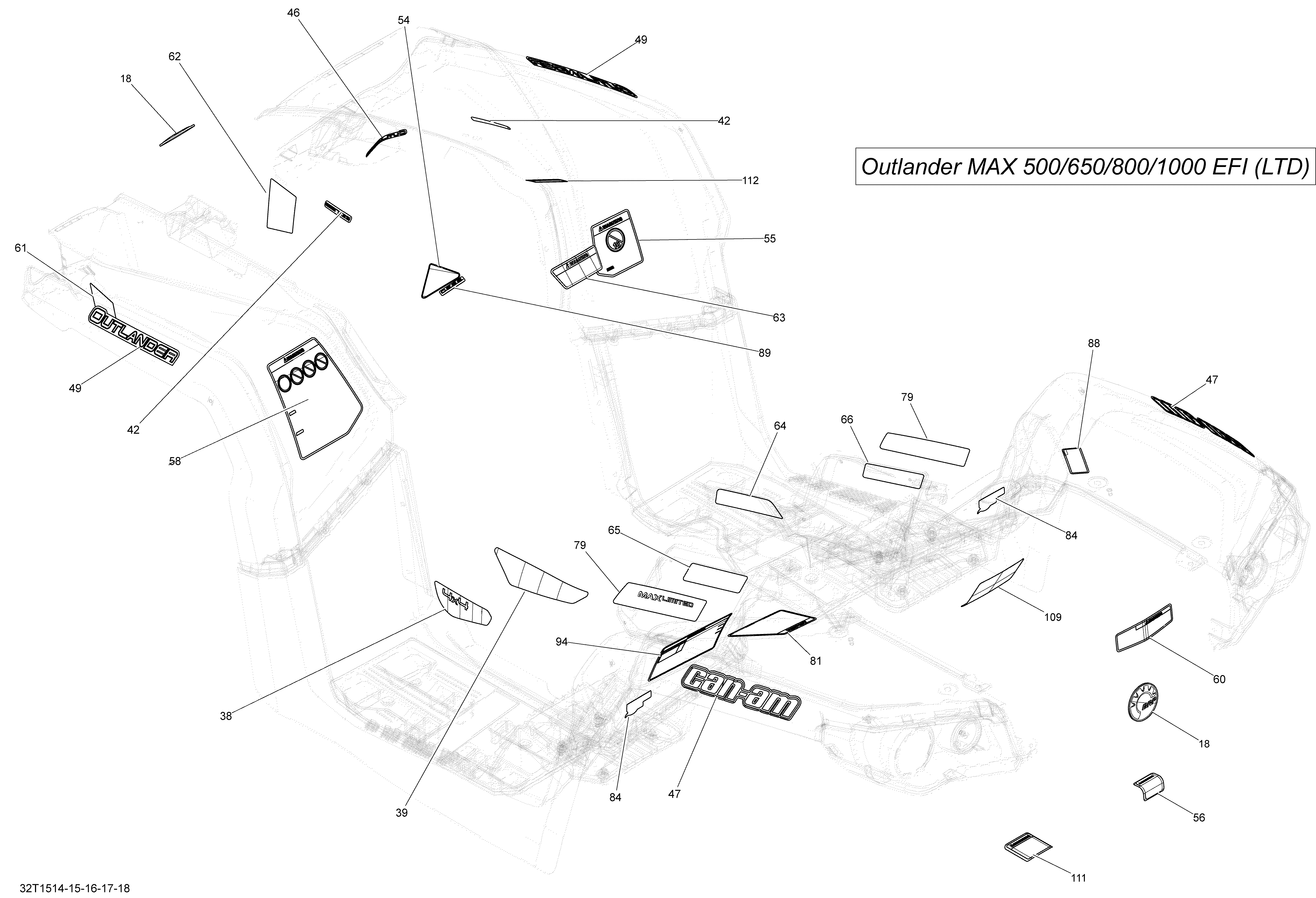

09- Decals _32T1515 для BRP Outlander MAX 650 EFI - 2015
-
№АртикулНазвание
-
18704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
38704902083 Decal, 4x4 Visco-LokDecal, 4x4 Visco-Lok
-
39704902234 LH Engine Cover DecalLH Engine Cover Decal
-
42704902721 Decal, SST G2Decal, SST G2
-
46704904310 Decal, Outlander Max. Package-DPS,Model-GrayDecal, Outlander Max. Package-DPS,Model-Gray
-
46704904323 Decal, Outlander Max. Package-DPS,Model-YellowDecal, Outlander Max. Package-DPS,Model-Yellow
-
46704904323 Decal, Outlander Max. Package-STDDecal, Outlander Max. Package-STD
-
46704904324 Decal, Outlander Max. Package-XT, Model-CAMODecal, Outlander Max. Package-XT, Model-CAMO
-
46704904324 Decal, Outlander Max. Package-XT, Model-YellowDecal, Outlander Max. Package-XT, Model-Yellow
-
46704904325 Decal, Outlander Max. Package-XT, Model-WhiteDecal, Outlander Max. Package-XT, Model-White
-
46704904328 Decal, Outlander Max. Package-XTpDecal, Outlander Max. Package-XTp
-
46704904325 Decal, Outlander Max. Package-XT, Model-Brush Alum.Decal, Outlander Max. Package-XT, Model-Brush Alum.
-
47704904313 CAN-AM Decal. Package-XT, Model-WhiteCAN-AM Decal. Package-XT, Model-White
-
47704904427 CAN-AM Decal. Model-YellowCAN-AM Decal. Model-Yellow
-
47704904428 CAN-AM Decal. Model-RedCAN-AM Decal. Model-Red
-
47704904429 CAN-AM Decal. Package-XT, Model-CAMOCAN-AM Decal. Package-XT, Model-CAMO
-
47704904536 CAN-AM Decal. Package-XTpCAN-AM Decal. Package-XTp
-
47704904555 CAN-AM Decal. Package-DPS,Model-GrayCAN-AM Decal. Package-DPS,Model-Gray
-
47704904312 CAN-AM Decal. Model-Brush AluminumCAN-AM Decal. Model-Brush Aluminum
-
49704904314 Front Side Decal, Outlander. Model-Brush AluminumFront Side Decal, Outlander. Model-Brush Aluminum
-
49704904430 Front Side Decal, Outlander. Model-YellowFront Side Decal, Outlander. Model-Yellow
-
49704904431 Front Side Decal, Outlander. Package-XT, Model-CAMOFront Side Decal, Outlander. Package-XT, Model-CAMO
-
49704904432 Front Side Decal, Outlander. Model-RedFront Side Decal, Outlander. Model-Red
-
49704904537 Front Side Decal, Outlander. Package-XTpFront Side Decal, Outlander. Package-XTp
-
54704902774 Decal, Public RoadsDecal, Public Roads
-
55704903087 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
56704902777 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
58704903153 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
58704903733 Warning Decal, Death And Injuries. Model-EuropeWarning Decal, Death And Injuries. Model-Europe
-
58704903734 Warning Decal, Death And Injuries. Model-Inter.Warning Decal, Death And Injuries. Model-Inter.
-
60704902791 Warning Decal, LoadWarning Decal, Load
-
60704903960 Warning Decal, Load. Model-EuropeWarning Decal, Load. Model-Europe
-
61704902865 LH Front Side ReflectorLH Front Side Reflector
-
62704902866 RH Front Side ReflectorRH Front Side Reflector
-
63704902941 Warning Decal, PerformanceWarning Decal, Performance
-
64704903041 RH Engine Cover DecalRH Engine Cover Decal
-
65704904326 LH Decal, MAX XTLH Decal, MAX XT
-
65704904329 LH Decal, MAX XTpLH Decal, MAX XTp
-
66704904327 RH Decal, MAX XTRH Decal, MAX XT
-
66704904330 RH Decal, MAX XTpRH Decal, MAX XTp
-
81704903093 Warning Decal, PassengerWarning Decal, Passenger
-
81704903737 Warning Decal, Passenger. Model-Europe/Inter.Warning Decal, Passenger. Model-Europe/Inter.
-
88704903314 Warning Decal, General Use ModelWarning Decal, General Use Model
-
88704903946 Warning Decal, General Use Model. Model-Inter.Warning Decal, General Use Model. Model-Inter.
-
88704903947 Warning Decal, General Use Model. Model-EuropeWarning Decal, General Use Model. Model-Europe
-
89704903497 Decal, D.E.S.S.Decal, D.E.S.S.
-
94704903089 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
94704903682 Warning Decal, Tire Pressure. Model-Inter.Warning Decal, Tire Pressure. Model-Inter.
-
94704903995 Warning Decal, Tire Pressure. Model-EuropeWarning Decal, Tire Pressure. Model-Europe
-
109704904358 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
109704904442 Warning Decal, Seat Passenger. Model-Europe/Inter.Warning Decal, Seat Passenger. Model-Europe/Inter.
-
111704904438 Warning Decal, Loading/TowingWarning Decal, Loading/Towing
-
112704904383 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
