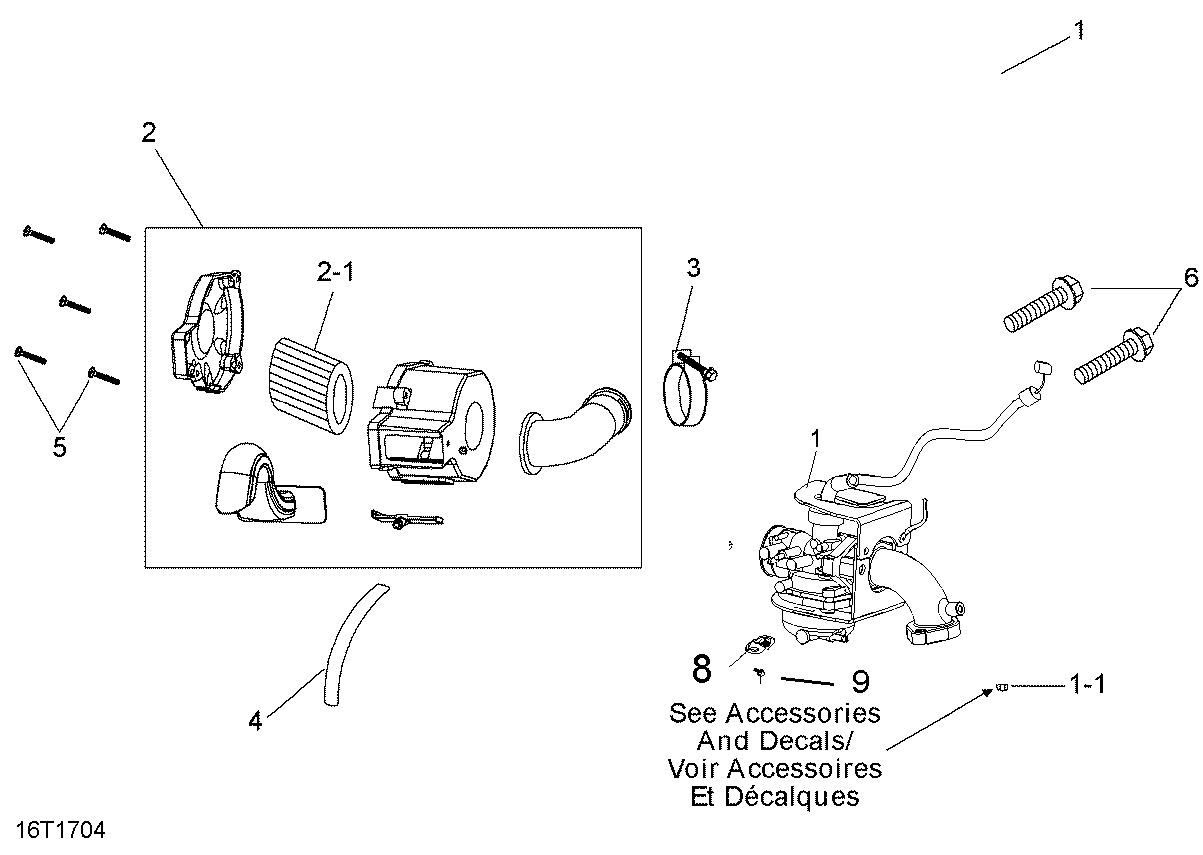

02- Carburetor And Air Cleaner для BRP DS 70 - 2017
-
№АртикулНазвание
-
1V16101DGE010 Carburetor Ass'yCarburetor Ass'y
-
2V17200DGF050 Air Silencer Ass'yAir Silencer Ass'y
-
2-1V17205DGF060 Air Cleaner Element SetAir Cleaner Element Set
-
3V17208DGF010 ClampClamp
-
5V9300005016010LL Round Head BoltRound Head Bolt
-
6207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
8V50312DGF000 BracketBracket
-
V9600106010 Flange bolt M6 X 10Flange bolt M6 X 10
