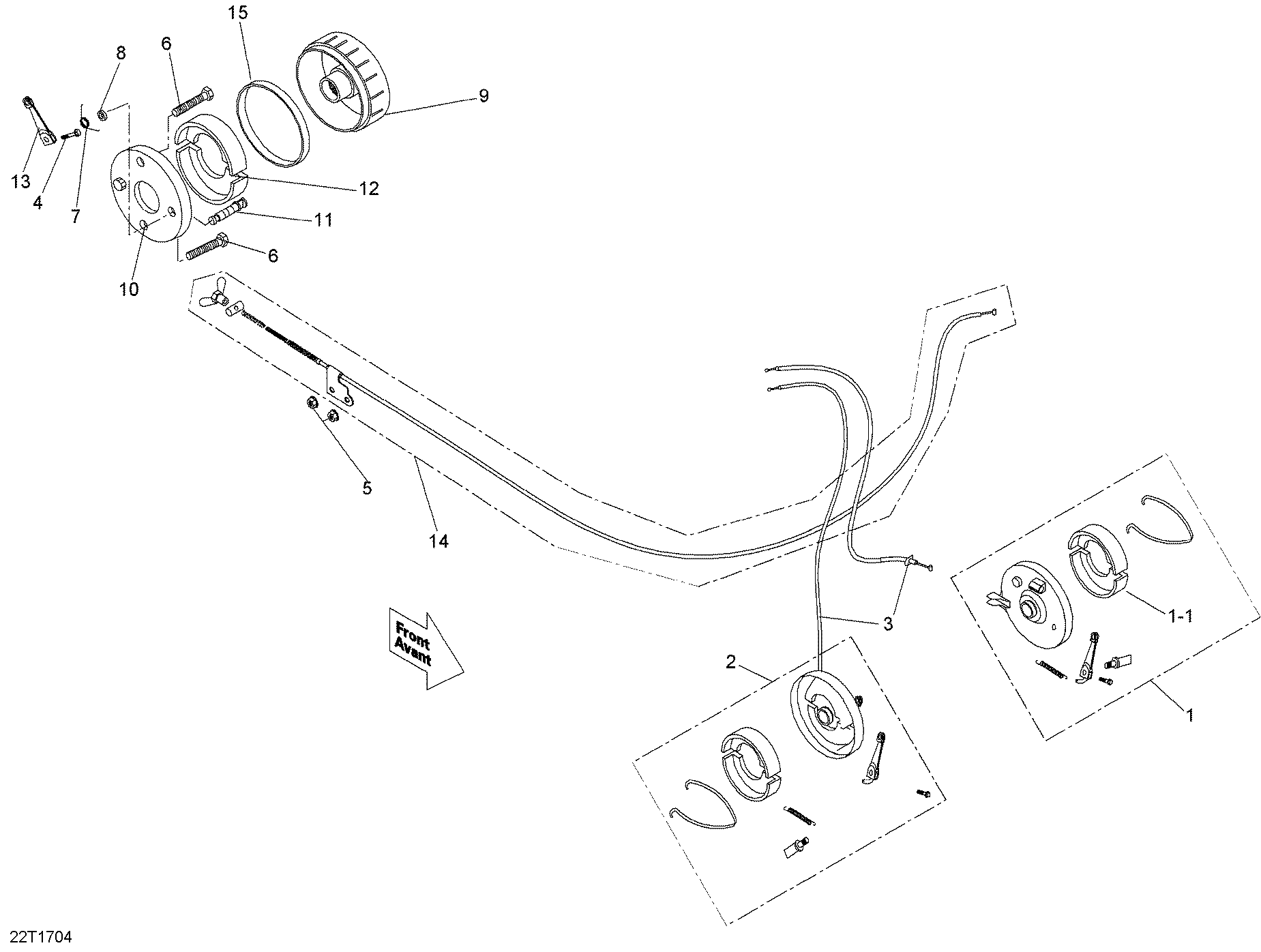

06- Brakes для BRP DS 70 - 2017
-
№АртикулНазвание
-
1V45201MAA060 Left Front Brake Ass'yLeft Front Brake Ass'y
-
1-1V45120MAA000 Front Brake Shoe KitFront Brake Shoe Kit
-
2V45202MAA080 RH Front BrakeRH Front Brake
-
3V45450DGF060LL Front Brake CableFront Brake Cable
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6V9200012050 Hex. ScrewHex. Screw
-
7V45135MAA010LL Tension SpringTension Spring
-
8V91352MAA000 Cam Shaft RubberCam Shaft Rubber
-
9V42610MAA010LL Rear DrumRear Drum
-
10V42605MAA010LL Rear Brake PanelRear Brake Panel
-
11V43141MAA000 Rear Brake CamRear Brake Cam
-
12V43121MAA000 Rear Brake Shoe KitRear Brake Shoe Kit
-
13V43410MAA040 Rear Brake ArmRear Brake Arm
-
14V43450DGF070LL Rear Brake CableRear Brake Cable
-
14aV9501532001LL Wing NutWing Nut
-
14bV950154200010LL BarrelBarrel
-
15V53446MAA000 Hub PackingHub Packing
