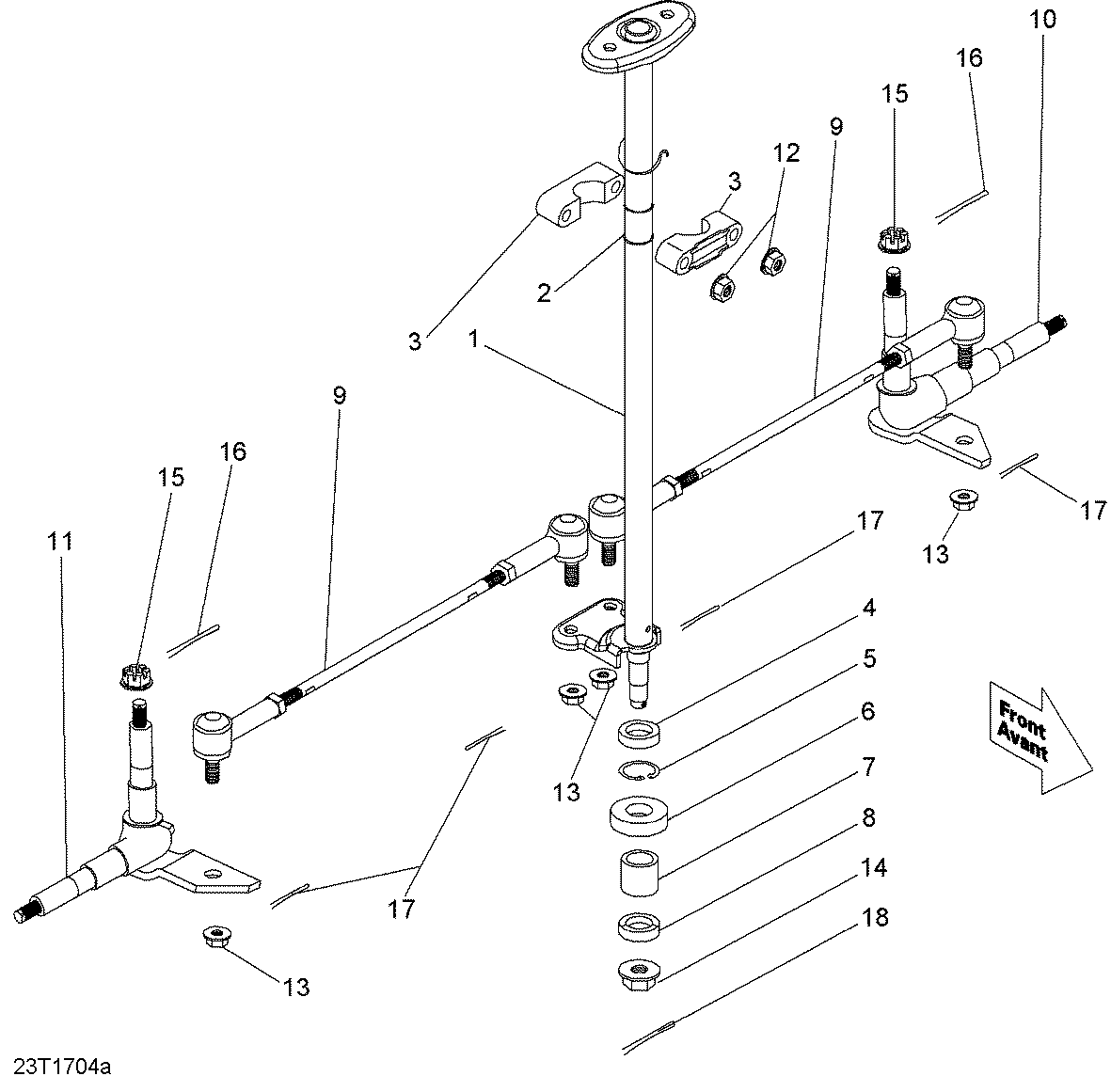

07- Steering для BRP DS 70 - 2017
-
№АртикулНазвание
-
1V53200DGF090 Steering ColumnSteering Column
-
2V53217MAA020 SleeveSleeve
-
3V53434MAA020BK Steering Shaft HolderSteering Shaft Holder
-
4V92101MAA000 Oil SealOil Seal
-
5V9452032000 C-CirclipC-Circlip
-
6A961006002ZZ Radial Ball Bearing, 6002ZZRadial Ball Bearing, 6002ZZ
-
7V22112MAA010 CollarCollar
-
8V92102MAA000 Oil SealOil Seal
-
9V53180MAA020LL Tie Rod Ass'yTie Rod Ass'y
-
10V51215MAA000 LH KnuckleLH Knuckle
-
11V51210MAA000 RH KnuckleRH Knuckle
-
12232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
13232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
14232571414 Elastic Stop Nut M14Elastic Stop Nut M14
-
15V9035210000LL Lock NutLock Nut
-
16V9420117020LL Cotter PinCotter Pin
-
17V9420125030 Cotter PinCotter Pin
-
18V9420130032LL Cotter PinCotter Pin
