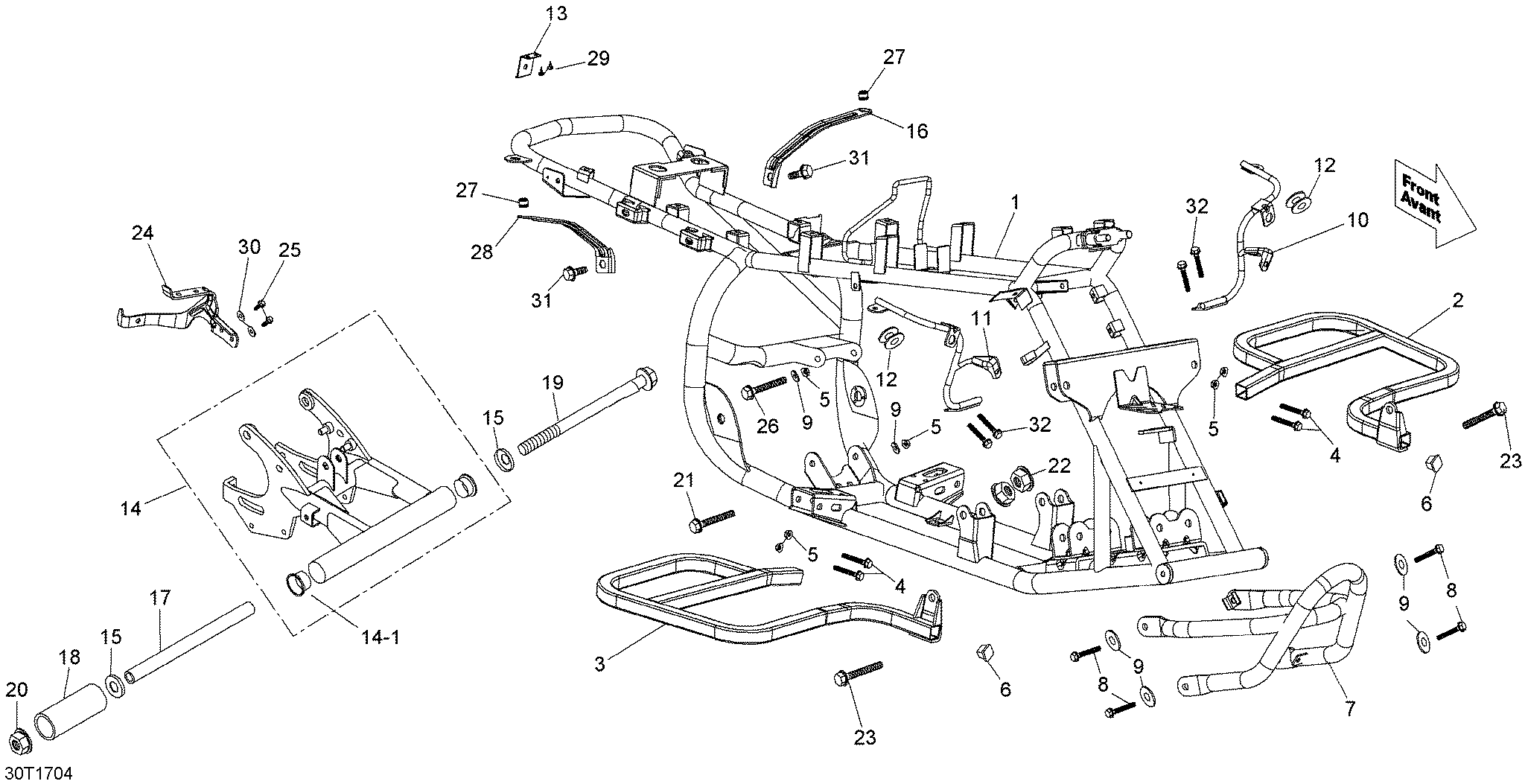

09- Frame для BRP DS 70 - 2017
-
№АртикулНазвание
-
1V50100DGF310LL FrameFrame
-
2V50099DGF060BK LH Footrest SupportLH Footrest Support
-
3V50107DGF050BK RH Footrest SupportRH Footrest Support
-
4207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
5232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6V64312DGF020LL PlugPlug
-
7V50270DGF040BK Front BumperFront Bumper
-
8V9600008014 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
9234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
10V50290DGF050BK LH Head Lamp SupportLH Head Lamp Support
-
11V50280DGF050BK RH Head Lamp SupportRH Head Lamp Support
-
12V15235DGF030 Rubber CushionRubber Cushion
-
13V50266DGF020 Reflector BracketReflector Bracket
-
14V52370DGF110 Swing ArmSwing Arm
-
14-1V22135MAA000 BushingBushing
-
15V11400MAA000 Swing Arm Seal CoverSwing Arm Seal Cover
-
16V50260DGF050BK LH Upper Fixed PlateLH Upper Fixed Plate
-
17V44170MAA000 Swing Arm SpacerSwing Arm Spacer
-
18V53436MAA020LL Rubber SleeveRubber Sleeve
-
19V9600014290010LL Haxagonal Flanged BoltHaxagonal Flanged Bolt
-
20232571414 Elastic Stop Nut M14Elastic Stop Nut M14
-
21V9600008100 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
22232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
23V958211006090L Haxagonal Flanged BoltHaxagonal Flanged Bolt
-
24V50268DGF040 Chain Cover BraketChain Cover Braket
-
25207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
26V9600108125 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
27V85278DGF020LL Rubber CushionRubber Cushion
-
28V50261DGF050BK RH Upper Fixed PlateRH Upper Fixed Plate
-
29V9309304012LL Tapping ScrewTapping Screw
-
30234161601 Lock Washer Helical M6Lock Washer Helical M6
-
31207681244 Hex. Flanged ScrewHex. Flanged Screw
-
32207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
