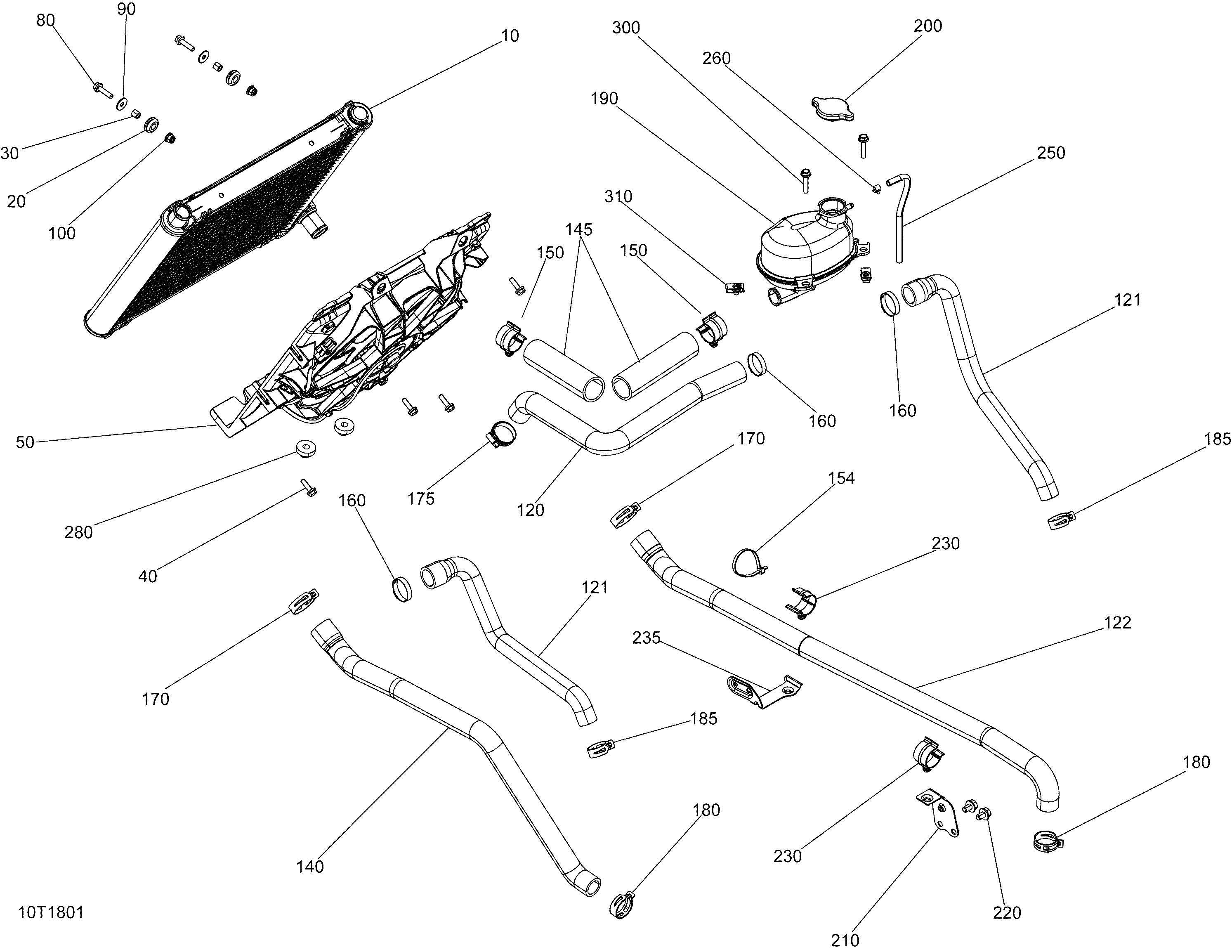

01- Cooling Outlander 450-570 - Except Package XMR для BRP 2- Outlander 450 EFI T3 Old EU Regulation (built Before Nov 2017) - 2018
-
№АртикулНазвание
-
10709200286 RadiatorRadiator
-
20293720053 GrommetGrommet
-
30293900105 BushingBushing
-
40207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
50709200563 Fan Ass'y. Engine 450 EFI, 570 EFI, 650 EFIFan Ass'y. Engine 450 EFI, 570 EFI, 650 EFI
-
80207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
90250200082 Flat WasherFlat Washer
-
100233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
120709200278 Radiator Inlet Hose. Except Renegade Package XMRRadiator Inlet Hose. Except Renegade Package XMR
-
121709200310 Engine Outlet Hose. Engine 570Engine Outlet Hose. Engine 570
-
121709200471 Coolant Hose. Engine 450Coolant Hose. Engine 450
-
122709200636 Engine Outlet Hose. Engine 450Engine Outlet Hose. Engine 450
-
140709200637 Radiator Outlet Hose. Engine 570 650Radiator Outlet Hose. Engine 570 650
-
145515176260 Tubing 35 mmTubing 35 mm
-
150275500590 RetainerRetainer
-
154293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
160509000162 Gear ClampGear Clamp
-
170293650166 Norma Spring ClampNorma Spring Clamp
-
175293650098 Norma Gear ClampNorma Gear Clamp
-
180293650108 Norma Spring Clamp. Engine 450 EFINorma Spring Clamp. Engine 450 EFI
-
185293650109 Norma Spring Clamp. Engine 450 EFI, 570 EFI, 650 EFINorma Spring Clamp. Engine 450 EFI, 570 EFI, 650 EFI
-
190709200297 Coolant TankCoolant Tank
-
200709200207 Pressure CapPressure Cap
-
210709200206 Hose Support. Engine 450 EFIHose Support. Engine 450 EFI
-
220207581244 Hex. Flanged Screw M8 X 12, Scotch Grip. Engine 450 EFIHex. Flanged Screw M8 X 12, Scotch Grip. Engine 450 EFI
-
230275500526 RetainerRetainer
-
235709200641 Hose SupportHose Support
-
250415080200 Hose, PolyurethaneHose, Polyurethane
-
260414554800 Spring ClampSpring Clamp
-
280709200285 GrommetGrommet
-
300207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
310250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
