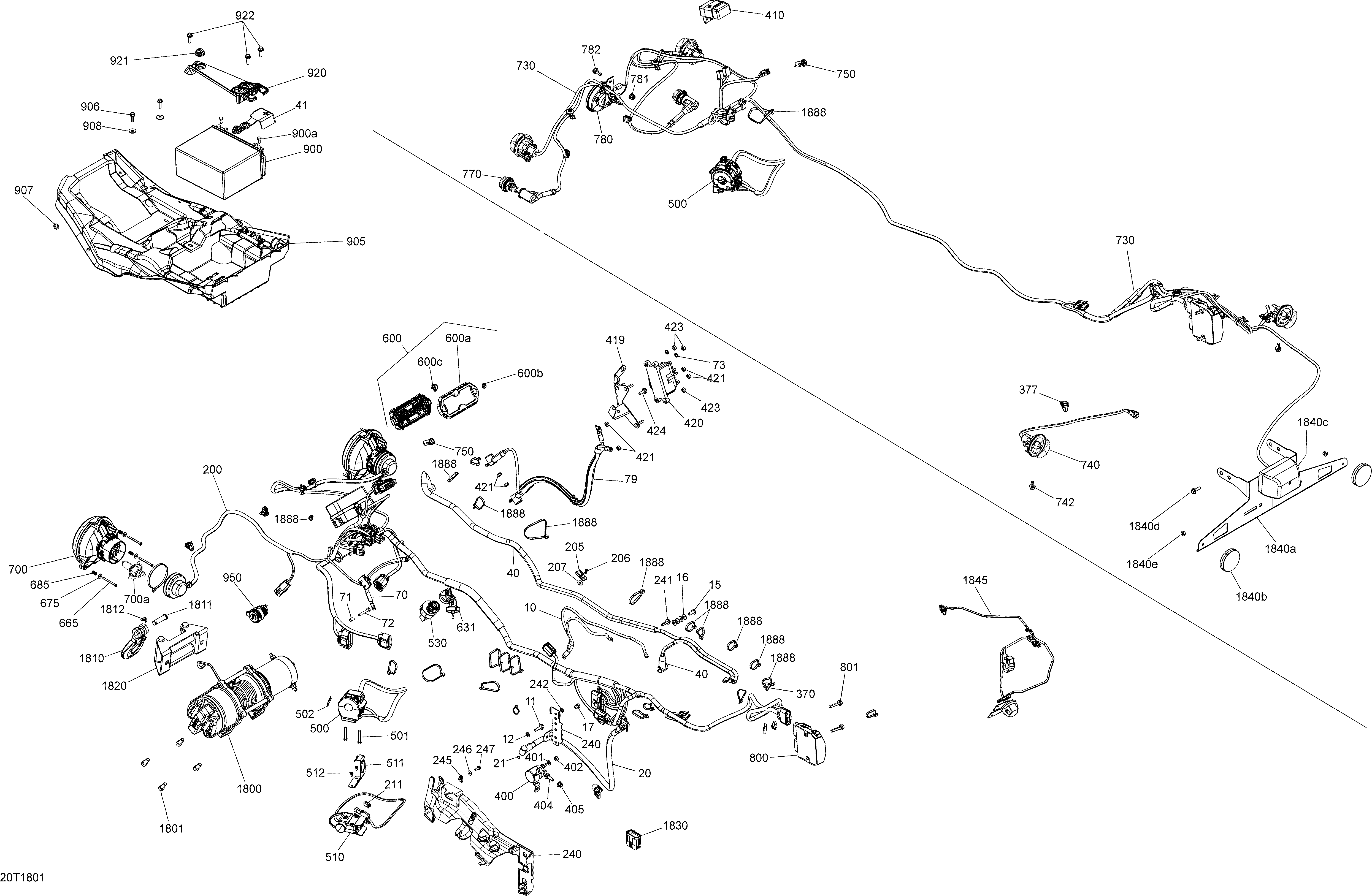

10- Electrical System G2L - 450 EFI - T3 для BRP 2- Outlander 450 EFI T3 Old EU Regulation (built Before Nov 2017) - 2018
-
№АртикулНазвание
-
10710004380 Ground CableGround Cable
-
11207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
20710004381 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004375 Connector Ass'y. Package PROConnector Ass'y. Package PRO
-
40710004376 Positive Cable. Package DPSPositive Cable. Package DPS
-
40710004376 Positive Cable. Package STDPositive Cable. Package STD
-
41710002569 CapCap
-
50710005819 Extension Cable 02 Sensor. Not ShownExtension Cable 02 Sensor. Not Shown
-
70710005163 Negative Cable. Package PRONegative Cable. Package PRO
-
71293900078 Sleeve. Package PROSleeve. Package PRO
-
72210265040 Hex Flanged Screw M6 X 50. Package PROHex Flanged Screw M6 X 50. Package PRO
-
73234461608 External Serrated Lock Washer 6 mm. Package PROExternal Serrated Lock Washer 6 mm. Package PRO
-
79710005164 Winch Cable. Package PROWinch Cable. Package PRO
-
81710005246 Winch Cable. Package PROWinch Cable. Package PRO
-
200710004898 Harness Ass'y. Package PROHarness Ass'y. Package PRO
-
200710004898 Harness Ass'y. Package STDHarness Ass'y. Package STD
-
200710004898 Harness Ass'y. Package DPSHarness Ass'y. Package DPS
-
203710005760 DPS Connector Cap. Not ShownDPS Connector Cap. Not Shown
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
211710000992 Clip. Package PROClip. Package PRO
-
240707001280 Cable BracketCable Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
245250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
246234062410 Flat Washer 6 mmFlat Washer 6 mm
-
247207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
370293730040 Mount DartMount Dart
-
377293750058 Locking Tie RapLocking Tie Rap
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
410710003239 Flasher UnitFlasher Unit
-
419710004935 Module Support. Package PROModule Support. Package PRO
-
420710001000 Winch Solenoid. Package PROWinch Solenoid. Package PRO
-
421232561414 Elastic Stop Nut M6. Package PROElastic Stop Nut M6. Package PRO
-
423232561414 Elastic Stop Nut M6. Package PROElastic Stop Nut M6. Package PRO
-
424207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Package PROHex. Flanged Screw M6 X 16, Scotch Grip. Package PRO
-
500710004040 Multi-Function HandleMulti-Function Handle
-
502704901835 DPS Label. Package DPS, PRODPS Label. Package DPS, PRO
-
510710005241 Winch Switch. Package PROWinch Switch. Package PRO
-
511710002631 Winch Interrupter Support. Package PROWinch Interrupter Support. Package PRO
-
512250000153 Hex. Cap Screw 6-32 X 1/4''. Package PROHex. Cap Screw 6-32 X 1/4''. Package PRO
-
530710004570 Ignition SwitchIgnition Switch
-
600710005553 SpeedometerSpeedometer
-
631710002183 Grey-Electronic KeyGrey-Electronic Key
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685>685a517168600 Spring. Includes 685 to 685aSpring. Includes 685 to 685a
-
685a517168600 SpringSpring
-
700>700a710003900 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
730710004331 Wiring Harness AssemblyWiring Harness Assembly
-
740710002964 FlasherFlasher
-
742207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
750710003909 Pilot LampPilot Lamp
-
770710001726 Day LightDay Light
-
780710004791 HornHorn
-
781233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
782207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800515177325 Voltage RegulatorVoltage Regulator
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900>900a410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1800705008546 Winch. Package PROWinch. Package PRO
-
1801250000746 Torx Truss Screw M8 X 16. Package PROTorx Truss Screw M8 X 16. Package PRO
-
1810705002329 Hook. Package PROHook. Package PRO
-
1811250400021 Clevis Pin. Package PROClevis Pin. Package PRO
-
1812250400022 Cotter Pin. Package PROCotter Pin. Package PRO
-
1820715000011 Winch Roller. Package PROWinch Roller. Package PRO
-
1840a>1840e708300434 Plate Support. Includes 1840a to 1840ePlate Support. Includes 1840a to 1840e
-
1840b705011221 Red ReflectorRed Reflector
-
1840c710005563 License Plate LightLicense Plate Light
-
1840d207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1840e233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1845705205993 Trailer PlugTrailer Plug
-
1888293750008 TIE-RAP 368 MMTIE-RAP 368 MM
-
1888414115200 TIE-RAP 180 MMTIE-RAP 180 MM
-
1888293750002 TIE-RAP 142 MMTIE-RAP 142 MM
