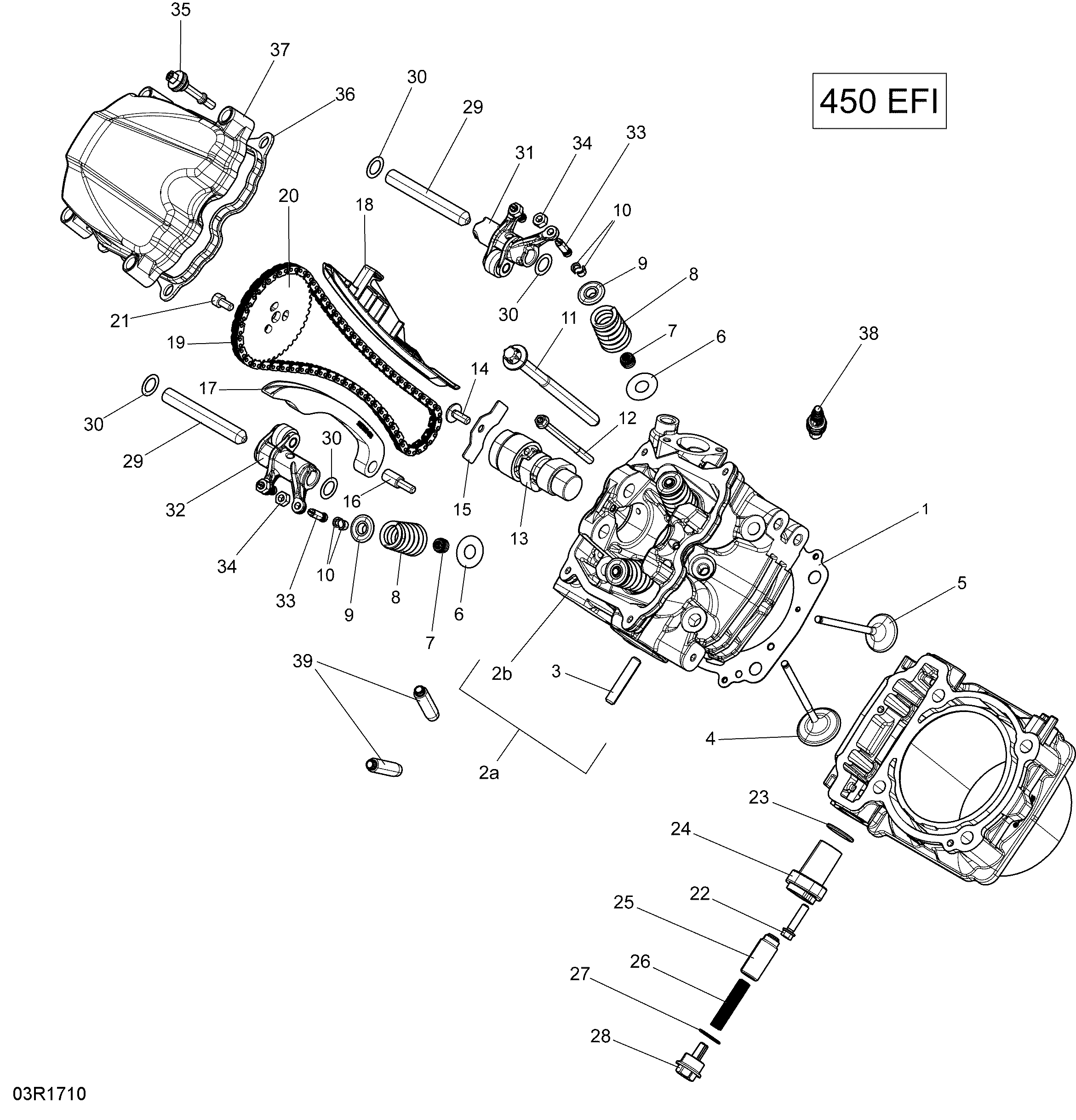

01- Cylinder Head - 450 EFI для BRP 2- Outlander 450 EFI T3 Old EU Regulation (built Before Nov 2017) - 2018
-
№АртикулНазвание
-
1420450340 Cylinder Head GasketCylinder Head Gasket
-
2a420413106 Cylinder Front Ass'y. Includes 2a to 3Cylinder Front Ass'y. Includes 2a to 3
-
3420941014 Stud M8 x 26Stud M8 x 26
-
4420254356 Intake Valve, 36.5 mmIntake Valve, 36.5 mm
-
5420855024 Exhaust Valve, 31 mmExhaust Valve, 31 mm
-
6420627521 Thrust WasherThrust Washer
-
7420430420 Valve Stem SealValve Stem Seal
-
8420239292 Valve SpringValve Spring
-
9420254137 Valve Spring RetainerValve Spring Retainer
-
10420254600 Cotter ValveCotter Valve
-
11420641550 Torx Screw M10 X 140Torx Screw M10 X 140
-
12420440347 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
13420620868 CamshaftCamshaft
-
14420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
15420627743 Holding StripHolding Strip
-
16420240943 Bearing Screw M6Bearing Screw M6
-
17420436255 Chain Tension GuideChain Tension Guide
-
18420236582 Chain GuideChain Guide
-
19420297063 Silent ChainSilent Chain
-
20420254435 Camshaft Sprocket, 42 TeethCamshaft Sprocket, 42 Teeth
-
21420840032 Screw M6 X 12Screw M6 X 12
-
22420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
23420430370 O-RingO-Ring
-
24420236510 Chain Tensioner HousingChain Tensioner Housing
-
25420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
26420238120 SpringSpring
-
27420250890 O-RingO-Ring
-
28420641150 Plug ScrewPlug Screw
-
29420229714 Pin 12 X 87.5Pin 12 X 87.5
-
30420944382 ShimShim
-
31420653065 Rocker Arm InletRocker Arm Inlet
-
32420653075 Rocker Arm ExhaustRocker Arm Exhaust
-
33420241335 Adjustment Screw M6 X 0.75Adjustment Screw M6 X 0.75
-
34420242910 Hex. Nut M6Hex. Nut M6
-
35420440568 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
36420630260 GasketGasket
-
37420610393 Valve CoverValve Cover
-
38715900352 Spark Plug, NGK LMAR8D-JSpark Plug, NGK LMAR8D-J
-
39420254377 Valve GuideValve Guide
