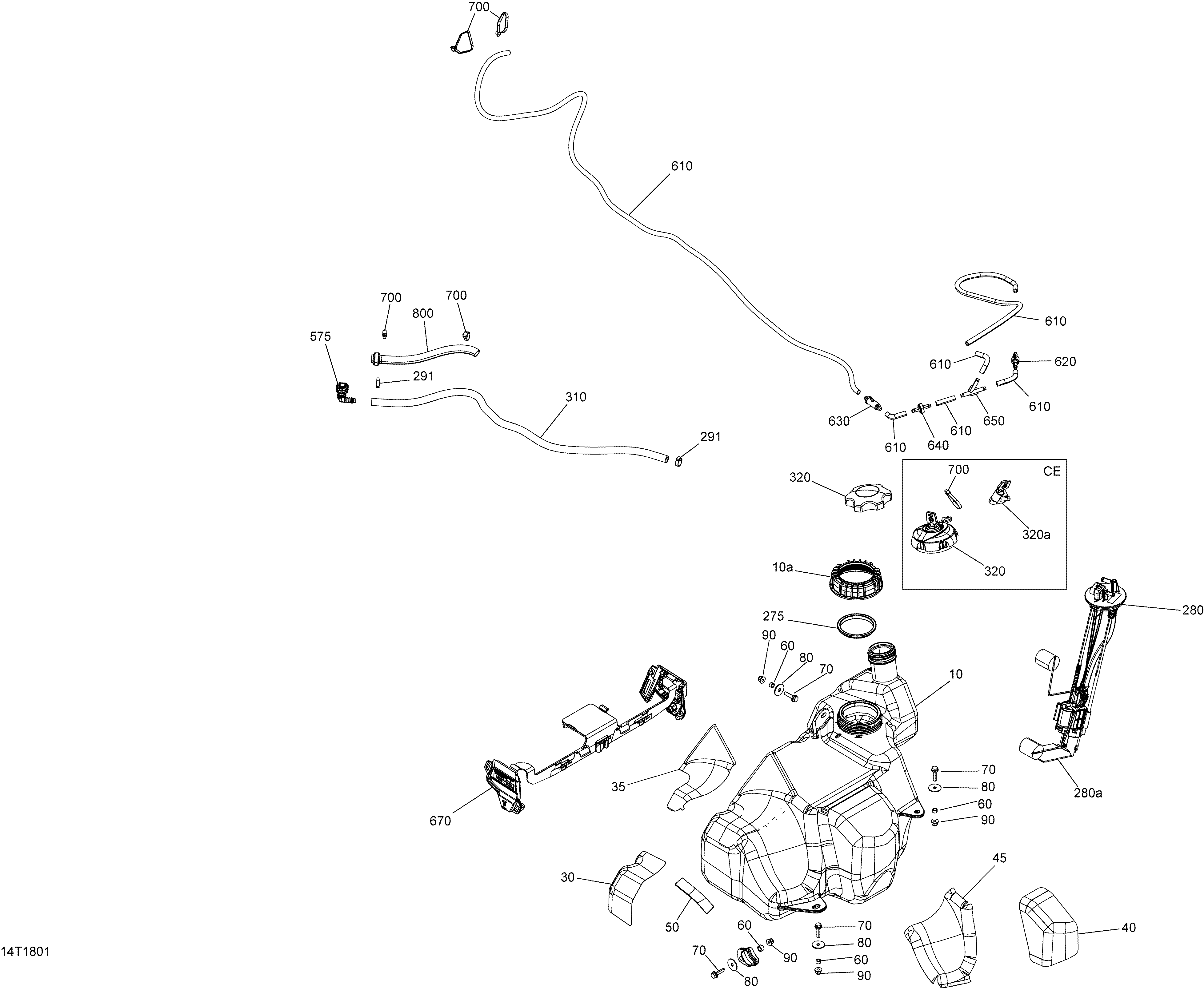

02- Fuel Outlander 450 для BRP 2- Outlander 450 EFI T3 Old EU Regulation (built Before Nov 2017) - 2018
-
№АртикулНазвание
-
10>10a709000310 Fuel Tank Ass'y. Includes 10 to 10aFuel Tank Ass'y. Includes 10 to 10a
-
10a709000328 Fuel Pump Module NutFuel Pump Module Nut
-
30709000381 Heat Reflective SheetHeat Reflective Sheet
-
35709000387 Heat Reflective SheetHeat Reflective Sheet
-
40709000382 Heat Reflective SheetHeat Reflective Sheet
-
45709000388 Heat Reflective SheetHeat Reflective Sheet
-
50293830172 Rubber PadRubber Pad
-
60293900104 BushingBushing
-
70207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
80224060251 WasherWasher
-
90233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
275709000208 SealSeal
-
280>280a709000461 Fuel Pump. Includes 280 to 280aFuel Pump. Includes 280 to 280a
-
280a715900322 Prefilter Fuel Pump KitPrefilter Fuel Pump Kit
-
291293650047 Crimp ClampCrimp Clamp
-
310709000516 Fuel LineFuel Line
-
320513033025 Fuel Tank CapFuel Tank Cap
-
320>320a707001750 Lock Device Kit. T3. Includes 320 to 320aLock Device Kit. T3. Includes 320 to 320a
-
320a707000666 LockLock
-
575275500700 Quick Attach 90°Quick Attach 90°
-
610415080200 Hose, PolyurethaneHose, Polyurethane
-
620513033469 Check ValveCheck Valve
-
630709000330 FilterFilter
-
640275500398 Check ValveCheck Valve
-
650293710059 Y-FittingY-Fitting
-
670709000359 Hose Support Ass'yHose Support Ass'y
-
700414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
800219702535 Tube 25.4MMTube 25.4MM
