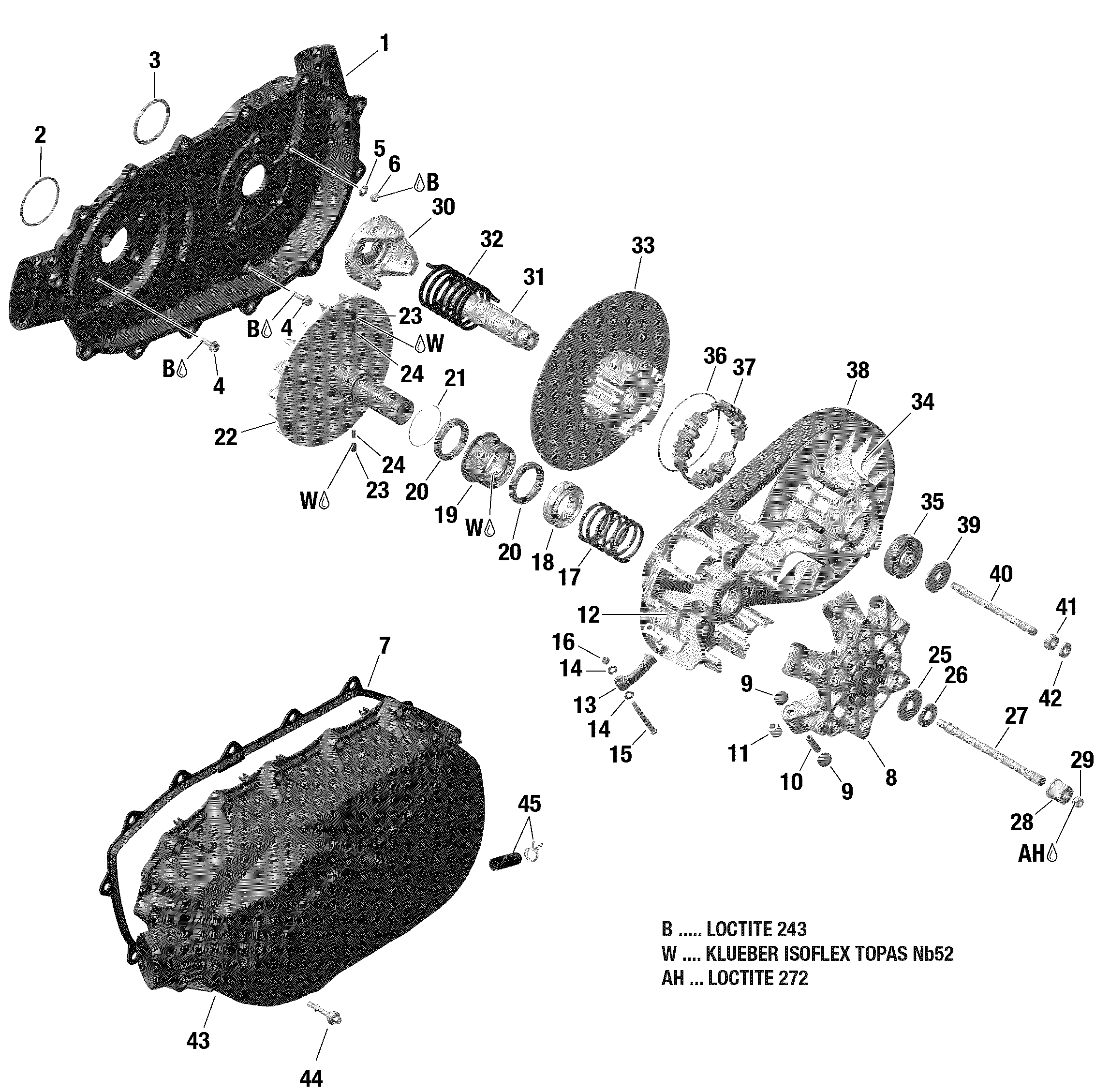

05- Transmission Renegade для BRP 003 - Renegade 1000R EFI - North America - 2019
-
№АртикулНазвание
-
1420612304 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631089 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6420842041 WasherWasher
-
7420430127 GasketGasket
-
8420280664 Governor CupGovernor Cup
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11417223767 RollerRoller
-
12420280467 Outher HaftOuther Haft
-
13420248682 Lever Set Ass'yLever Set Ass'y
-
17420238617 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
18420627577 Spring SeatSpring Seat
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
20420632377 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
26703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
27703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
28703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
29703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
30420280700 Driven Pulley CamDriven Pulley Cam
-
31420220914 Driven Pulley ShaftDriven Pulley Shaft
-
32420638040 Compression SpringCompression Spring
-
33420280499 Inner Half Ass'yInner Half Ass'y
-
34>37420280178 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
35420932421 Ball BearingBall Bearing
-
36420245911 Retaining RingRetaining Ring
-
37420660124 Torque GearTorque Gear
-
38422280360 V-BeltV-Belt
-
39420627590 Thrust WasherThrust Washer
-
40420441900 -Stud Screw M10 X 136-Stud Screw M10 X 136
-
41
-
42
-
43420612310 Variator CoverVariator Cover
-
44420440568 Hex Screw M6 X 30Hex Screw M6 X 30
-
45707001179 Drain Plug KitDrain Plug Kit
