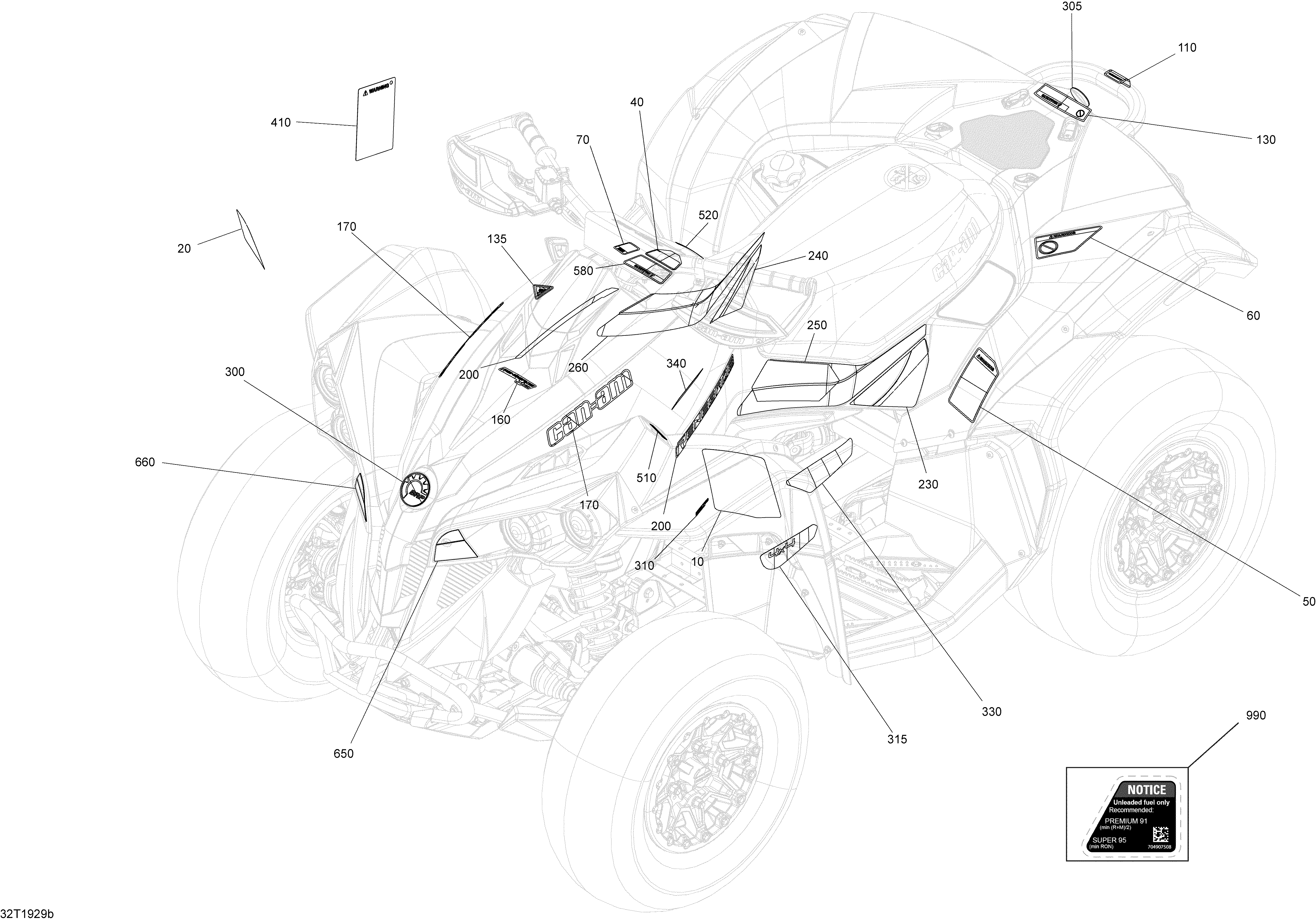

09- Decals XXC для BRP 003 - Renegade 1000R EFI - North America - 2019
-
№АртикулНазвание
-
10704907273 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
20704906050 Warning Decal Under 16Warning Decal Under 16
-
40704905680 Transport Canada LabelTransport Canada Label
-
50704907620 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704906860 Warning DecalWarning Decal
-
70704906054 Warning Decal Shift Lever And BrakeWarning Decal Shift Lever And Brake
-
110704905698 Warning DecalWarning Decal
-
130704906055 Warning Decal PassengerWarning Decal Passenger
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
160704906066 Console Decal. Timeless Black MetallicConsole Decal. Timeless Black Metallic
-
160704906065 Console Decal. Deep BlackConsole Decal. Deep Black
-
170704906069 Can-Am Decal. Timeless Black MetallicCan-Am Decal. Timeless Black Metallic
-
170704907169 Can-Am Decal. Deep BlackCan-Am Decal. Deep Black
-
200704906074 Renegade Decal. Timeless Black MetallicRenegade Decal. Timeless Black Metallic
-
200704907170 Side Decal Renegade. Deep BlackSide Decal Renegade. Deep Black
-
230704906084 LH XC Decal. Timeless Black MetallicLH XC Decal. Timeless Black Metallic
-
230704907171 LH Decal XC. Deep BlackLH Decal XC. Deep Black
-
240704906085 RH XC Decal. Timeless Black MetallicRH XC Decal. Timeless Black Metallic
-
240704907172 RH DECAL XC. Deep BlackRH DECAL XC. Deep Black
-
250704906908 LH Sponsor Decal. Timeless Black MetallicLH Sponsor Decal. Timeless Black Metallic
-
250704907173 LH Sponsor Decal. Deep BlackLH Sponsor Decal. Deep Black
-
260704906910 RH Sponsor Decal. Timeless Black MetallicRH Sponsor Decal. Timeless Black Metallic
-
260704907174 RH Sponsor Decal. Deep BlackRH Sponsor Decal. Deep Black
-
300516008739 BRP Logo, 68mmBRP Logo, 68mm
-
305516008738 Logo BRP, 48mmLogo BRP, 48mm
-
310704907243 Rotax Power DecalRotax Power Decal
-
315704905747 4X4 Visco-Lok Decal4X4 Visco-Lok Decal
-
330704906040 LH 1000 Engine DecalLH 1000 Engine Decal
-
340704906061 RH 1000 Engine DecalRH 1000 Engine Decal
-
410704903318 Warning Decal, GeneralWarning Decal, General
-
510704906046 DESS DecalDESS Decal
-
520704906089 DPS DecalDPS Decal
-
580704905707 Warning Decal, PerformanceWarning Decal, Performance
-
650704906091 LH Front DecalLH Front Decal
-
660704906092 RH Front DecalRH Front Decal
-
990704907508 Decal Fuel Octane. 1000R EngineDecal Fuel Octane. 1000R Engine
