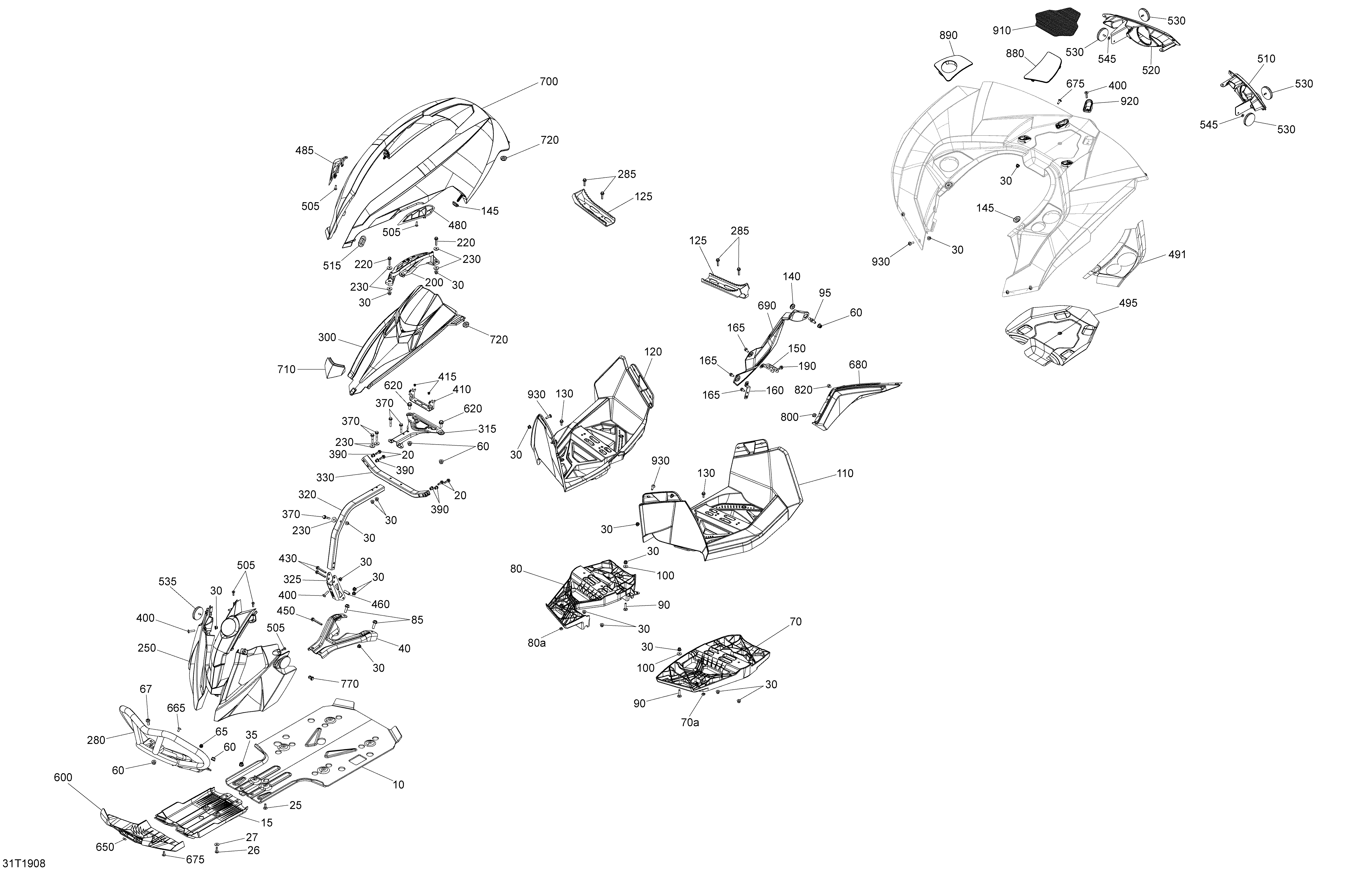

09- Body And Accessories - 1000R - Except XMR для BRP 003 - Renegade 1000R EFI - North America - 2019
-
№АртикулНазвание
-
10715002374 Protective Plate Kit. Package STDProtective Plate Kit. Package STD
-
10705204031 Central Skid Plate. Except Package STDCentral Skid Plate. Except Package STD
-
15705007820 Skid Plate. Package XXCSkid Plate. Package XXC
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
26250000712 Torx Screw M6 X 20. Except Package STDTorx Screw M6 X 20. Except Package STD
-
27234062670 Flat Washer, Stainless. Except Package STDFlat Washer, Stainless. Except Package STD
-
30233261434 Flanged Elastic Nut M6. Package XXCFlanged Elastic Nut M6. Package XXC
-
35233281434 Hex. Flanged Elastic Nut M8. Except Package STDHex. Flanged Elastic Nut M8. Except Package STD
-
40705003505 Bumper Support. Package STDBumper Support. Package STD
-
40705003505 Bumper Support. Package XXC - BlackBumper Support. Package XXC - Black
-
40705011386 Bumper Support. Package XXC - Timeless Black. Includes 40 to 40aBumper Support. Package XXC - Timeless Black. Includes 40 to 40a
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
65250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
67250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
70705004176 LH Footboard. Includes 70 to 70aLH Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705004177 RH Footboard. Includes 80 to 80aRH Footboard. Includes 80 to 80a
-
80a232862412 Square Nut M6Square Nut M6
-
85207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
90207763044 Carriage Bolt M6 X 30Carriage Bolt M6 X 30
-
95250300039 Ball Head StudBall Head Stud
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705004730 LH Footboard/FenderLH Footboard/Fender
-
120705004729 RH Footboard/FenderRH Footboard/Fender
-
125705002326 FootrestFootrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
140293720053 GrommetGrommet
-
145705000321 Oval WasherOval Washer
-
150705011461 Engine Cover SupportEngine Cover Support
-
160705003646 Engine Cover SupportEngine Cover Support
-
165210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
190207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
200705004416 Lever IndicatorLever Indicator
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705003948 Front FaciaFront Facia
-
280705010632 Red Front Bumper. Liquid GoldRed Front Bumper. Liquid Gold
-
280705011635 Welded Front Bumper. Package XXC - BlackWelded Front Bumper. Package XXC - Black
-
280705011635 Welded Front Bumper. Package STDWelded Front Bumper. Package STD
-
280705011726 Black Front Bumper. Package XXC - Timeless Black. Includes 280 to 280aBlack Front Bumper. Package XXC - Timeless Black. Includes 280 to 280a
-
280705012139 Paint Sunburst Yellow Front Bumper. Package XXC - Carbon BlackPaint Sunburst Yellow Front Bumper. Package XXC - Carbon Black
-
285207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
300705003556 DashboardDashboard
-
315705003599 Painted BracketPainted Bracket
-
320705003511 Front TubeFront Tube
-
325705002282 Support. Package STDSupport. Package STD
-
325705011566 Support. Package XXC. Includes 325 to 325aSupport. Package XXC. Includes 325 to 325a
-
330705003510 Body TubeBody Tube
-
370207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
390293450275 InsertInsert
-
400250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
410710002482 Fuse HolderFuse Holder
-
415390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
430207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
450207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
460705005809 SpacerSpacer
-
480705008137 LH GrillLH Grill
-
485705008138 RH GrillRH Grill
-
491707002475 Reflective SheetReflective Sheet
-
495705005840 Reflective SheetReflective Sheet
-
505250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
510705004731 LH Rear FaciaLH Rear Facia
-
515705003668 Oblong GrommetOblong Grommet
-
520705004732 RH Rear FaciaRH Rear Facia
-
530705011221 Red ReflectorRed Reflector
-
535705011222 Amber ReflectorAmber Reflector
-
545517225900 Flat WasherFlat Washer
-
600705004850 Front Bumper PlateFront Bumper Plate
-
620207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
650232862412 Square Nut M6Square Nut M6
-
665250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
675250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
680705004988 Panel ExtensionPanel Extension
-
690705004966 Engine CoverEngine Cover
-
700715005579 Central Panel Kit - Catalyst Grey. Package XXC - BlackCentral Panel Kit - Catalyst Grey. Package XXC - Black
-
700715005571 Central Panel Kit - Black. Package XXC - Timeless BlackCentral Panel Kit - Black. Package XXC - Timeless Black
-
700715005577 Central Panel Kit - Sunburst Yellow. Package STDCentral Panel Kit - Sunburst Yellow. Package STD
-
710705002353 CapCap
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
800414479100 ClipClip
-
820293830005 Rubber BumperRubber Bumper
-
880705001910 Black LH CapBlack LH Cap
-
890705002420 Neck CapNeck Cap
-
910705002343 Rear CarpetRear Carpet
-
920705002342 HookHook
-
930250000712 Torx Screw M6 X 20Torx Screw M6 X 20
